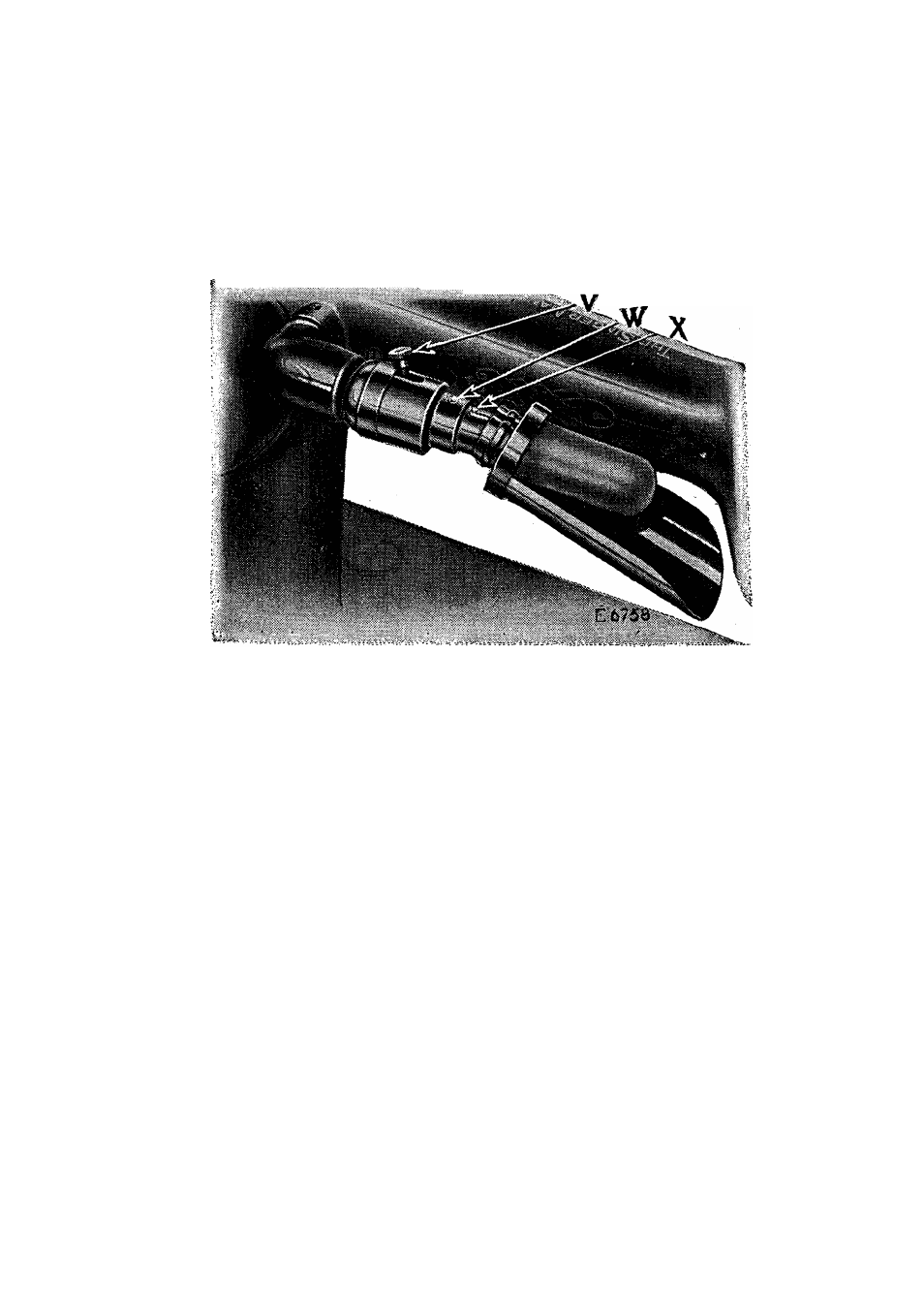

Fig. 14) for the shade is in the slot of the shade, then
gently slip the shade off and allow it to hang free as
shown in Fig. 14.
15
...... .
F
iq
. 14
Do not attempt to unscrew the bulb. It is of
the bayonet and socket type and does not unscrew.
Press the bulb into the socket and at the same
time turn it until the bulb pin (X, Fig. 14) is out
of the notch in the socket, then withdraw the
bulb and shade.
To insert a new bulb, pass the bulb through the
collar of the shade with the slot of the shade up­
ward. Hold the socket tightly with one hand and
at the same time with the other hand press the
bulb into the socket with the bulb pin (X, Fig. 14)
in the slot and turn it until this pin is in the notch.
Then slip the shade over the socket, the pin (W,
Fig. 14) for the shade entering the slot of the shade.
See that the pin (W) is in the groove of the shade
and turn the shade halfway around, or until it is
at the top.
