To Connect Machine 101-4 on Cabinet 40 to
Electric Service Line
Push the terminal plug at one end of the electric
cord as far as it will go on the three-pin terminal
block under the cabinet, as shown at (P) in Fig. 6.
Attach the plug at the other end of the cord to
the nearest electric socket and the machine is
ready for operation.
To Open Cabinet 306

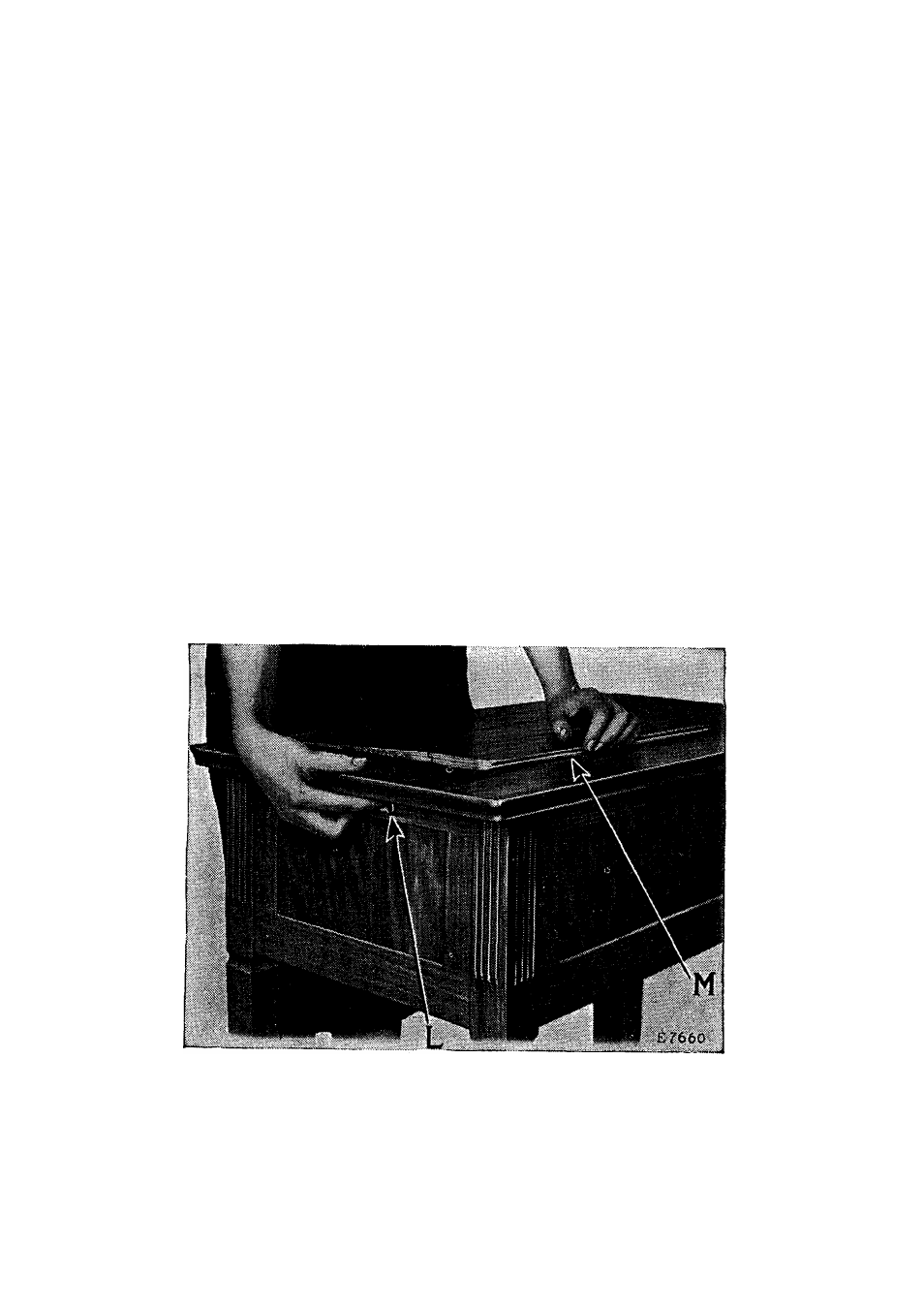

With the right hand push in the lever (L, Fig. 7)
at the right of the table and at the same time with
the left hand raise the hinged flaps of the table top
as shown at M in Fig. 7.
8
F
ig
.
7. To
O
pen
C
abinet
306
