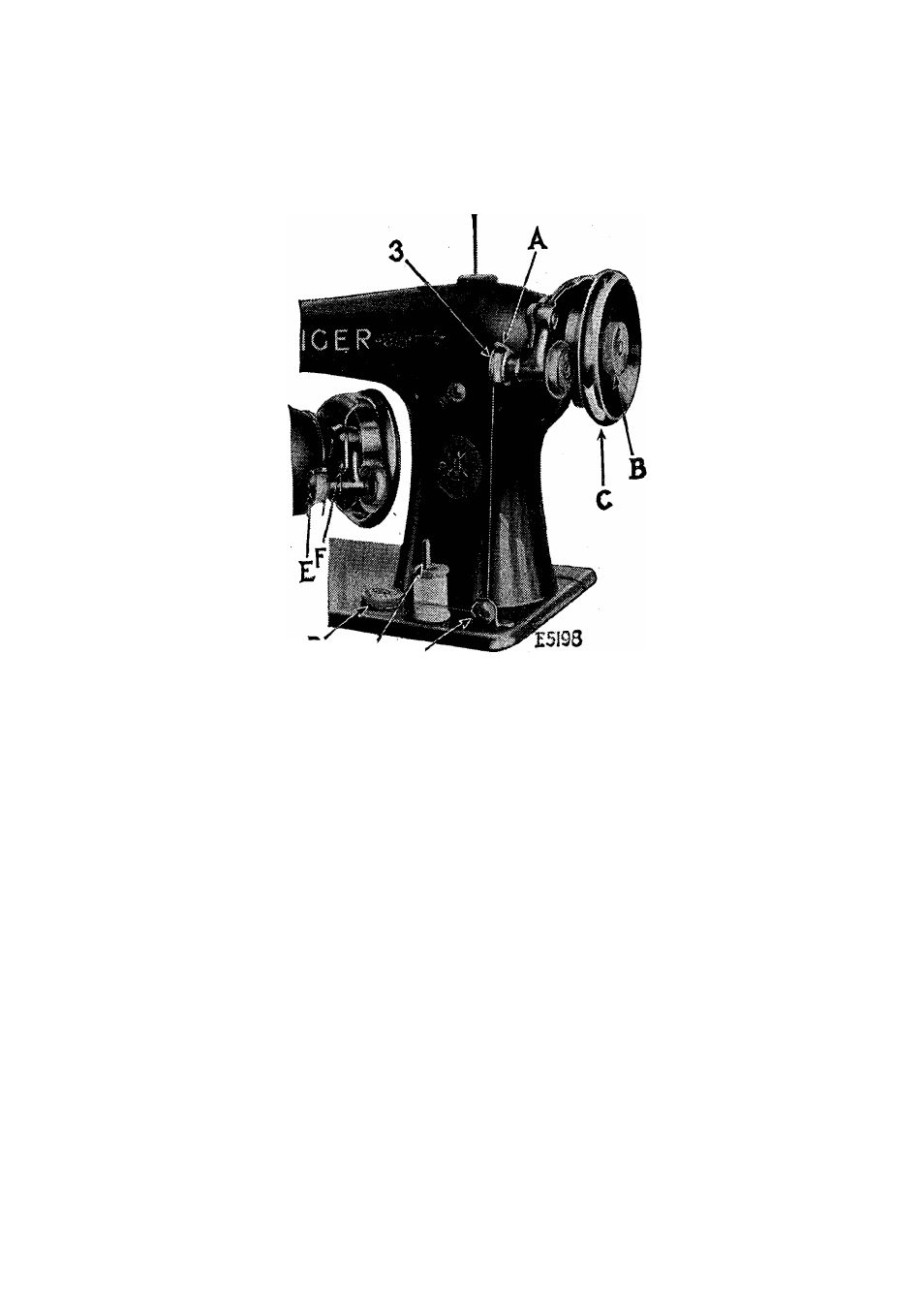

Press down on the bobbin and the bobbin winder

latch (A, Fig. 17) will drop down and hold the bobbin

U f 2

. 17. W

inding

the

obbin

winder pulley against the hub of the balance wheel.

Then press the knee lever the same as for sewing.

The end of the thread must be held by the hand

until a few coils are wound and should then be

broken off. When sufficient thread has been wound

upon the bobbin, the bobbin winder is automatically

released from the balance wheel.

If the pressure of the bobbin winder pulley against

the hub of the balance wheel is insufficient for wind

ing the bobbin, loosen the adjusting screw (F, Fig. 17)

and press down on the bobbin winder until the pulley

is in contact with the hub of the balance wheel,

then tighten the adjusting screw (F).

Bobbins can also be wound while the machine is

sewing.
