To Oil the Machine
To ensure easy running and prevent unnecessary
wear of the parts which are in movable contact, the
D
E 672^

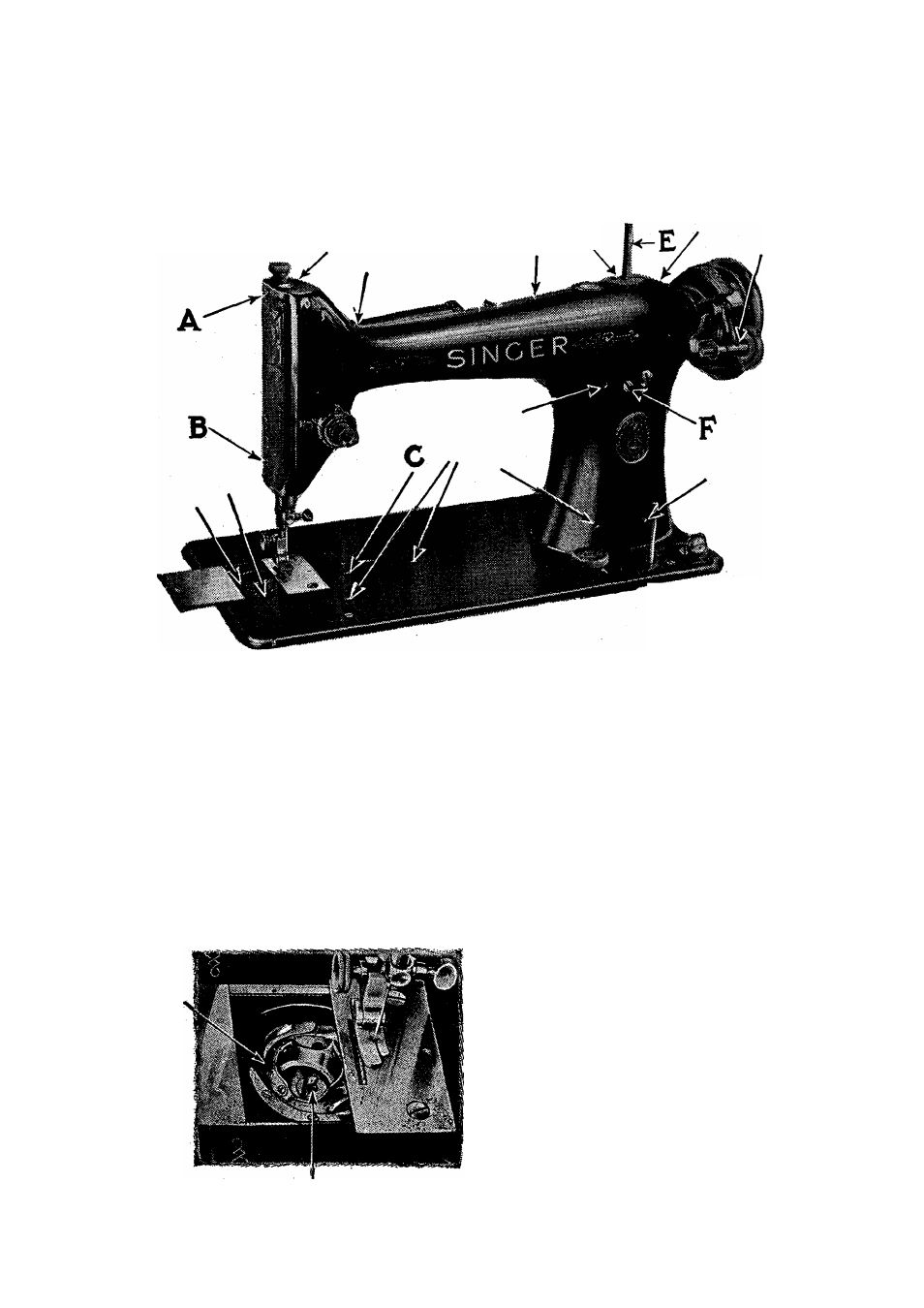

Fia. 27. F
bont
V
iew
, S
howing
O
iling
P
oints
machine requires oiling, and if used continuously, it
should be oiled each day. With moderate use, an
occasional oiling is sufficient. Oil should be applied
at each of the places shown by arrows in Figs. 27,
28 and 29. One drop of oil at each point is sufficient
with the exception of the oil hole (C, Fig. 27) into
which hole about 12 drops of oil should be poured
each time the machine is oiled. Oil holes are pro
vided in the machine for bearings which cannot be
directly reached.
To oil the hook
mechanism, draw to
the left the slide in
the bed of the ma
chine and after re
moving the lint and
dust which may have
accumulated around
the sewing hook, take
out the bobbin and
apply a drop of oil to
the oil hole and bob-
F
ig
. 28. V
iew
of
S
ewing
H
ook
S
howing
O
iling
P
oints
