SINGER W8910 - Manual (Page 12)

Threading

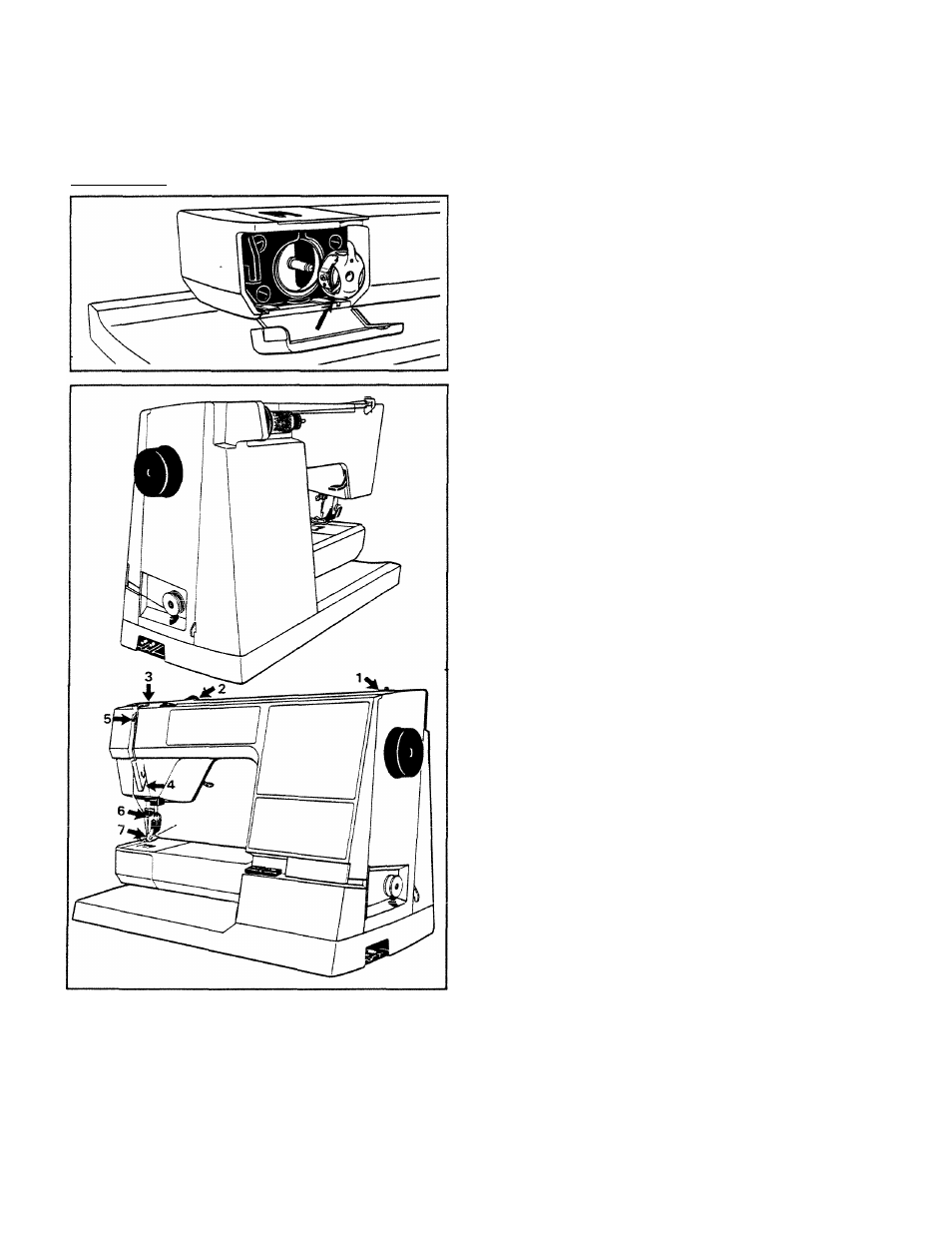

Removing the bobbin case
open the door in front of the shuttle by means of the
small recess on the left side.
Grip the bobbin case with the thumb and index finger
so that the latch is depressed and pull the bobbin case
out. The bobbin will remain in the case as long as the
latch is depressed. When you release the latch, the bob­
bin will be released.
Threading the upper thread
Raise the presser foot. Check that the needle is at its
highest position.
The machine is fitted with a horizontal and an exten­
sible thread reel holder. As a rule the horizontal holder is
used for ordinary sewing and the smaller disc is placed
outside the thread reel, as illustrated, but if the edge of
the thread reel is uneven, it is advisable to place the
larger disc outside.
The extensible holder is used when sewing with the
twin needle, the small washer, 411 87 78-01, which you
will find in the accessory box is placed under the thread
reel to minimize the friction.
Slide the thread into thread guide 2 on the upper arm
and draw it upward. Then draw the thread to the front
between the tension discs 3 and down around thread
guide 4. Continue threading by drawing the thread from
the right into the slot on thread take-up lever 5 and draw
it down to the needle, ensuring that it goes through
thread guide 6.
Thread the needle from the front. Due to the white
color of the presser foot ankle the needle-eye is clearly
seen and the threading of the needle, 7, is easier. Pull the
thread under the presser foot about 15 cm (6") toward
the rear.
10
