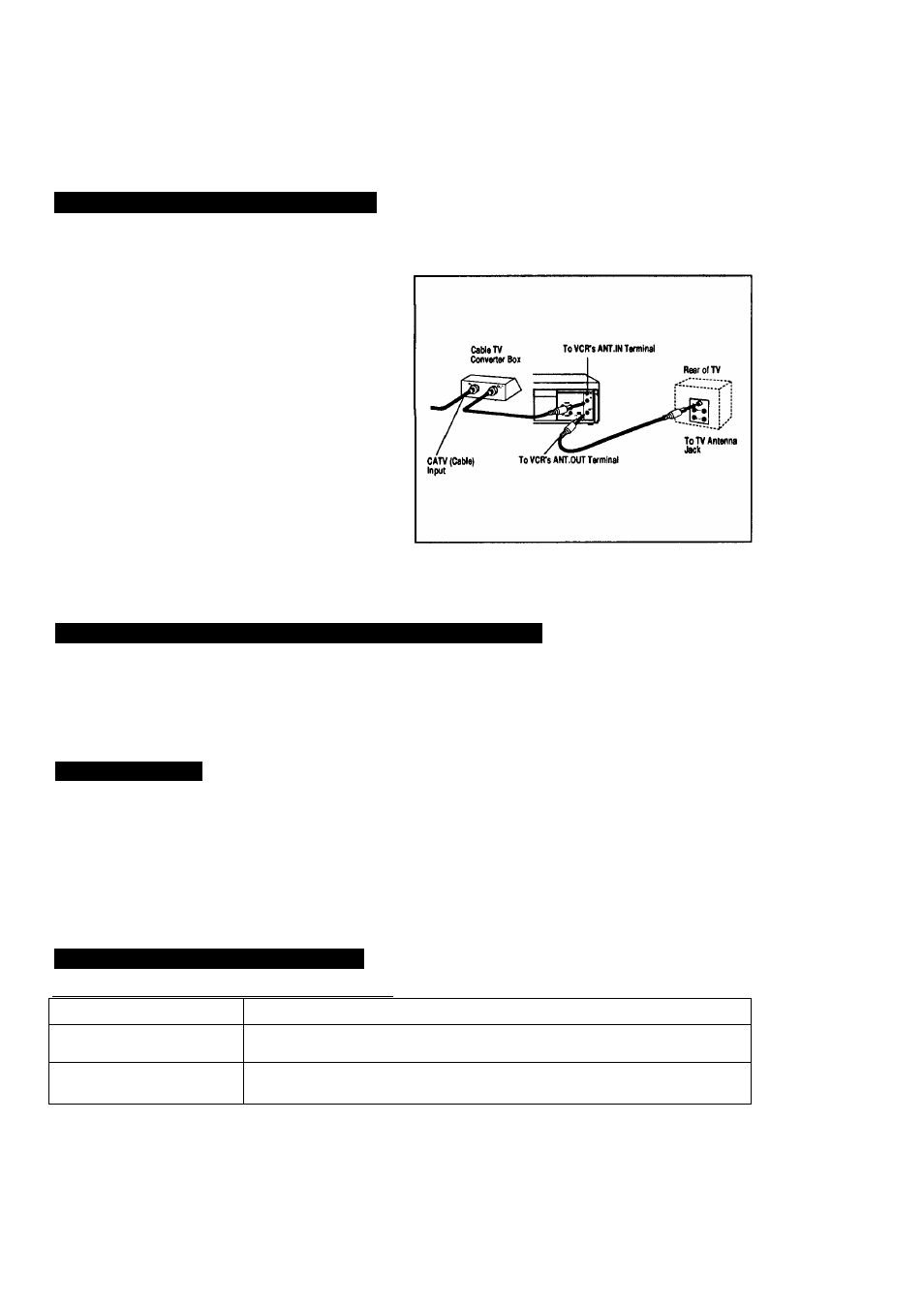

USING A CABLE CONVERTER BOX
If your cable service supplies you with a cable converter box, you can use the basic connection shown below.
TO RECORD AND VIEW A SCRAMBLED/UNSCRAMBLED CHANNEL.
1. Press TV/VCR button so that "VCR" appears on the
display.
2. Set the TV channel to the same video output channel
as the switch located on the back of the VCR (CH3
or 4).
3. Set the VCR channel selector to the output channel
of the Cable Converter box. (EXAMPLE CH3)
4. Select the channel to be recorded at the Cable Con­
verter Box.
NOTES;
• With this connection, you CANNOT record one
program while viewing another.
• Channel memory programming is NOT needed when
using this connection.
CONTROLLING VCR INPUT & OUTPUT
VIDEO OUTPUT CHANNEL SETTING (BACK OF VCR)
m
When the VCR is in the Playback mode, or when the TV/VCR button is in the VCR position,
your TV will receive the signals from the VCR on either channel 3 or 4. Set the 3CH/4CH
selector switch to the station that is not used for normal broadcasts in your area; then set your QH3 QH4
TV to that same channel when viewing from the VCR.
The video output channel of this unit is set to channel 3 prior to shipment from the factory.
INPUT SELECT
To use the external input jacks, select the "LI" or "L2" position.
• If you use the audio and video input jacks on the back of the unit, press 0,0, 1 with number buttons to select
the "LI" position.
• If you use the audio and video input jacks on the front of the unit, press 0,0,2 with number buttons to select
the "L2" position.
You can select "LI", "L2" as a channel by using the CHANNEL "A" or "T" button.
Note; "LI" and "L2" are found before the lowest memorized channel. (Example: CH2)
VIDEO MODE SELECTION ON TV
TV power must be on. Please see your TV’s owner’s ntanual tor details.
To Set your TV to the Video Mode
Connection Using AV Cord
(Refer to page 12.)
Set your TV to the Video mode using TV/VCR button of your TV.
To set your TV to the TV mode, press TV/VCR button of your TV again.
Connection Without AV Cord
(Refer to page 10, 11,13.)
Set the TV channel to the same video output channel located on the back of the VCR.
(CH 3 or 4) Then, set your VCR to the VCR mode using TV/VCR button of your VCR.
