ANTENNA/CABLE SYSTEM CONNECTIONS

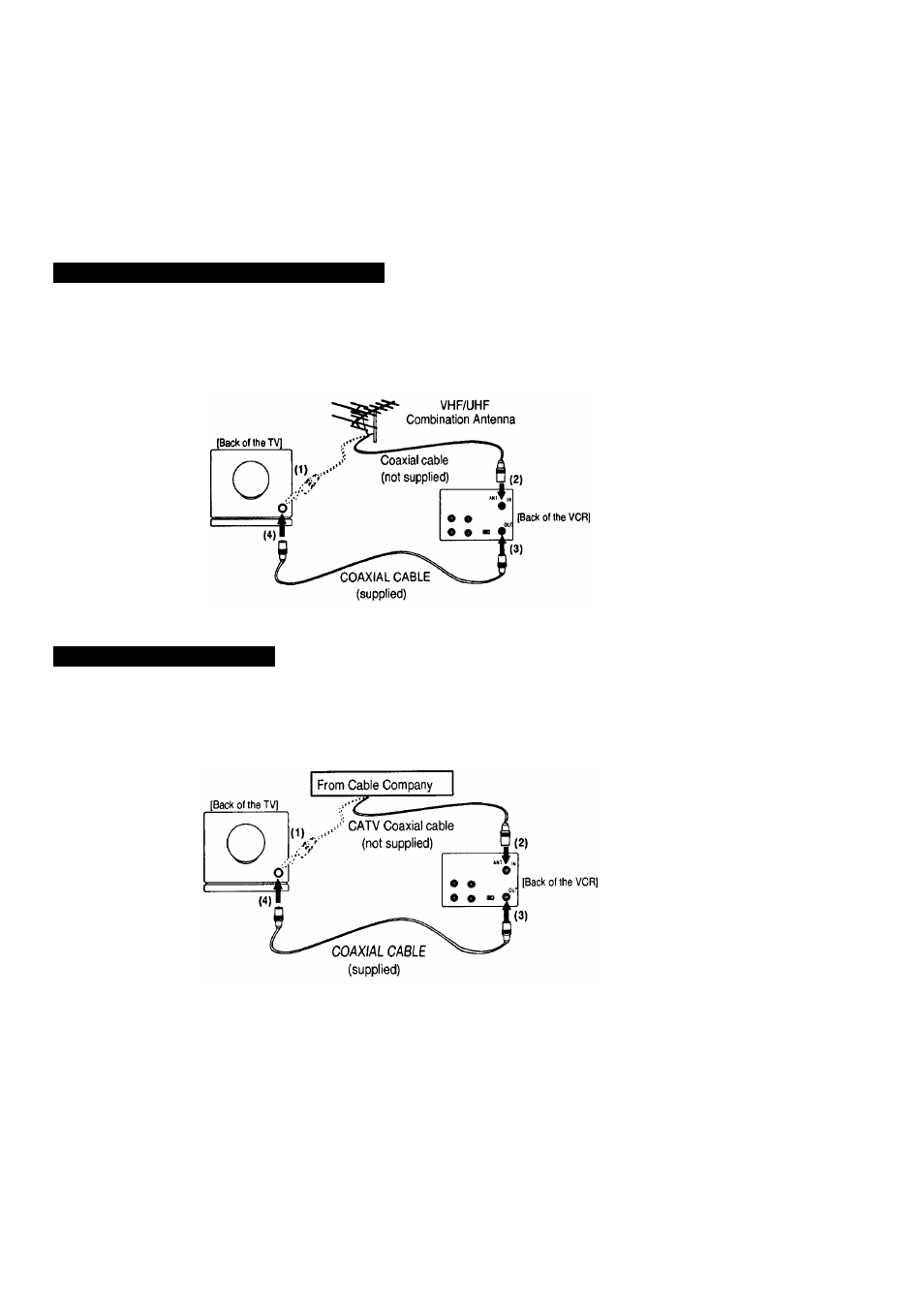

For some of the most common types of connections, see the following drawings. Use only one connection. For

any further complex connections, please contact your local dealer or other qualified persons. (You may need

additional accessories which are not supplied).

COMBINATION VHF/UHF ANTENNA

(J)Disconnect

the

round

75-ohm

combination

VHF/UHF coaxial antenna cable from the back of

your TV set.

(2)Reconnect the coaxial cable to ANT. IN terminal of

the VCR.

(3) Conncct one end of the COAXIAL CABLL (sup

plied) to the ANT. OUT jack of the VCR.

(4) Connect the other end of the COAXIAL CABLE

(supplied) to the antenna/cable jack of your TV.

CATV COAXIAL CABLE

(3)Connect one end of the COAXIAL CABLE (sup

plied) to the ANT. OUT jack of the VCR.

(2)Reconnect the CATV coaxial cable to ANT. IN ter- (4)Connect the other end of the COAXIAL CABLE

(l)Disconnect the CATV coaxial cable from the back

of your TV set.

minai of the VCR.

(supplied) to the antenna/cable jack of your TV.

Note to CATV system installer

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected

to the grounding system of the building as close to the point of cable entry as practical.
