urspacking and checking confetifs
TOOLS NEEDED
1
/
2
" Wrench
7/16" Wrench
3/4" Wrench
3/8" Wrench
I M'
tt
Medium Screwdriver
I . I
Model. 113.206801 Jointor/Planer is shipped compiete in
one carton but DOES NOT INCLUDE Steel Legs, or motor.
Model 113.206931 Joìnter/Planer is shipped complete in
brie carton but INCLUDES Steel Legs, and Motor.
. Separate all parts frqm packing materials and check each
one with the illustration;and the list of Loose Parts to make
certain all items are accounted for, before discarding any
packing material.
If any parts are missing, do not attempt to assemble the
jointer/planer, plug in the power cord or turner the switch
on until the missing parts are obtained and are installed
eorrectiy.
Remove the protective oil that is applied to ail unpainted
metal surfaces. Use any ordinary household,type grease and
spot, remover.,:
, ,
CAUTION: Never use gasoline, naptha or similar highly
volatile solvents.
Apply a coat of automobile wax to the table.
Wipe all parts thoroughly with a clean, dry cloth.
WARNING;
FOR
YOUR
OWN
SAFETY,
NEVER
CONNECT PLUG TO POWER SOURCE OUTLET ÜNTiL
ALL ASSEMBLY STEPS ARE COMPLETE, AND YOU
HAVE READ AND UNDERSTAND THE SAFETY AND
OPERATIONAL INSTRUCTIONS.
Combination Square

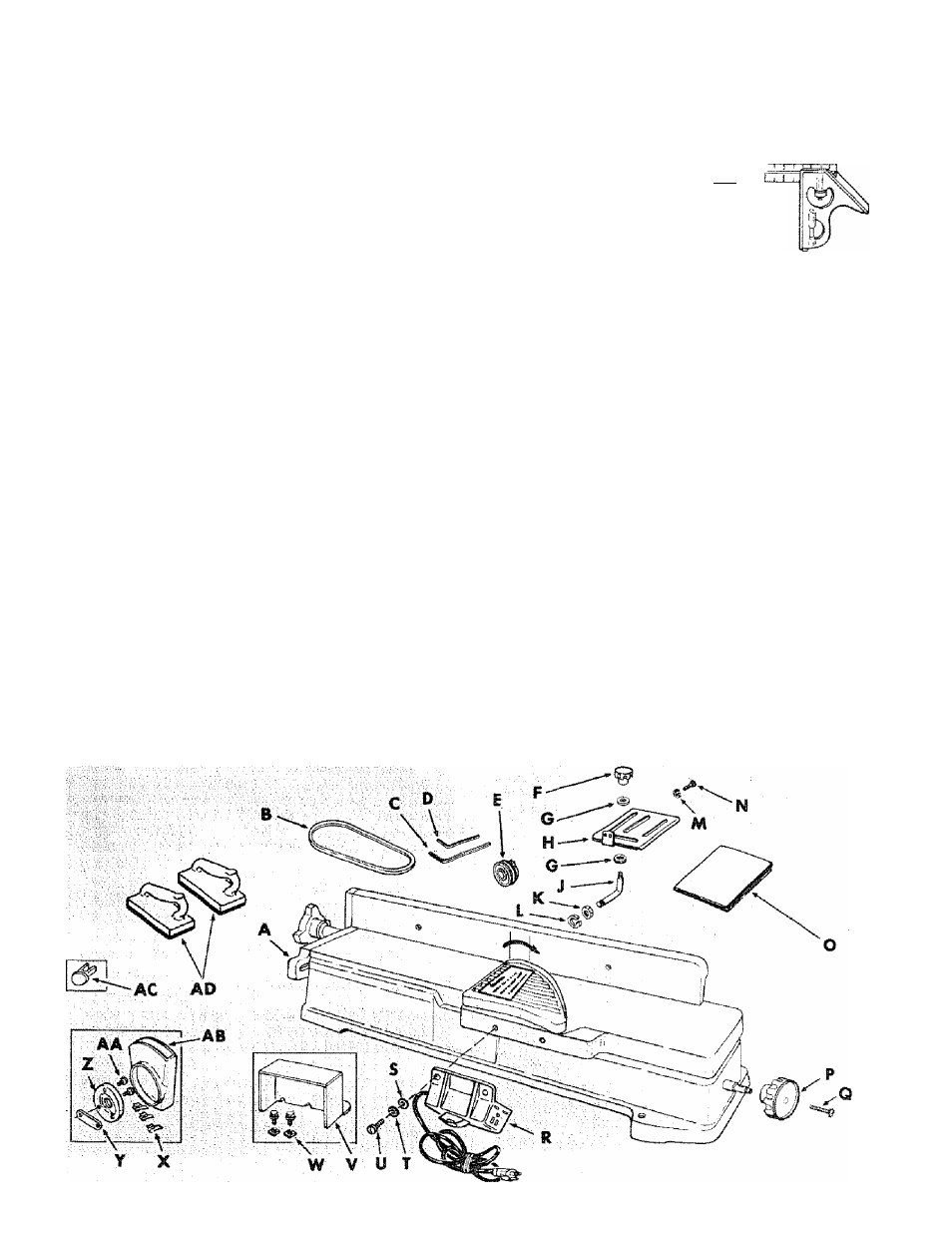

TABLE OF LOOSE PARTS
Item
No.
Description
Oty.
A
Jointer-Planer .......................................................... 1
B
V-Belt, l/2x 52" .........................................................
1
5/32 Setscrew Wrench ............................................. 1
*0
1/8 Setscrew Wrench ............................................ 1
*E
Motor Pulley, 2-1/2" Dia............................................ 1
*F
Sliding Guard Knob ................................................. 1
*6
Concave Plastic Washer........................................... 2
H
Sliding Guard .......................................................... 1
*J
Sliding Guard Rod ................................................... ]
*K Nut, 1/2-13.......................................^
^
1
*L
Lockwasher, 1/2 .. ..................................................
1
Lockwasher, No. 10 ......................................... 2
N
Screw, Pan Hd., 10 - 32 x 1/4................................ 2
0
Owners Manual ...................................................... 1
*P
Depth of Cut Handwheel ......................................... 1
*Q
Screw, Sems, 1/4 - 20 X 1-1/4 ................................
1
R
On/Off Power Outlet ................................................ 1
*S
Washer, 17/64 X 1/2
X
1/32 ...................................
2
*T
Lockwasher, External 1/4........................................ 2
*U
Screw, Pan Hd, 1/4-20 X 1/2.................................... 2
V
Jointer-Planer Belt Guard ,..................................... 1
W Attaching Hardware {2 Nuts, 2 Bolts}
X
Belt Guard Clips .................................................... 3
Y
Belt Guard Support Bracket ................................... 1
Z
Belt Guard Support ... ............................................ 1
AA
Screw Pan Hd. 10-32
X
1/2.....................................
2
: A6
Motor Pulley Belt Guard.......................................... 1
AC Switch Key .. ........................................................... i
AD Hold Ddwn/Push Block ........................................... 2
6
