repair parts
:
:
CRAFTSMAN 6 1/8 INCH JQINTER PLANER MODEL No, 113.206801 AND 113.206931
FIGURE 3

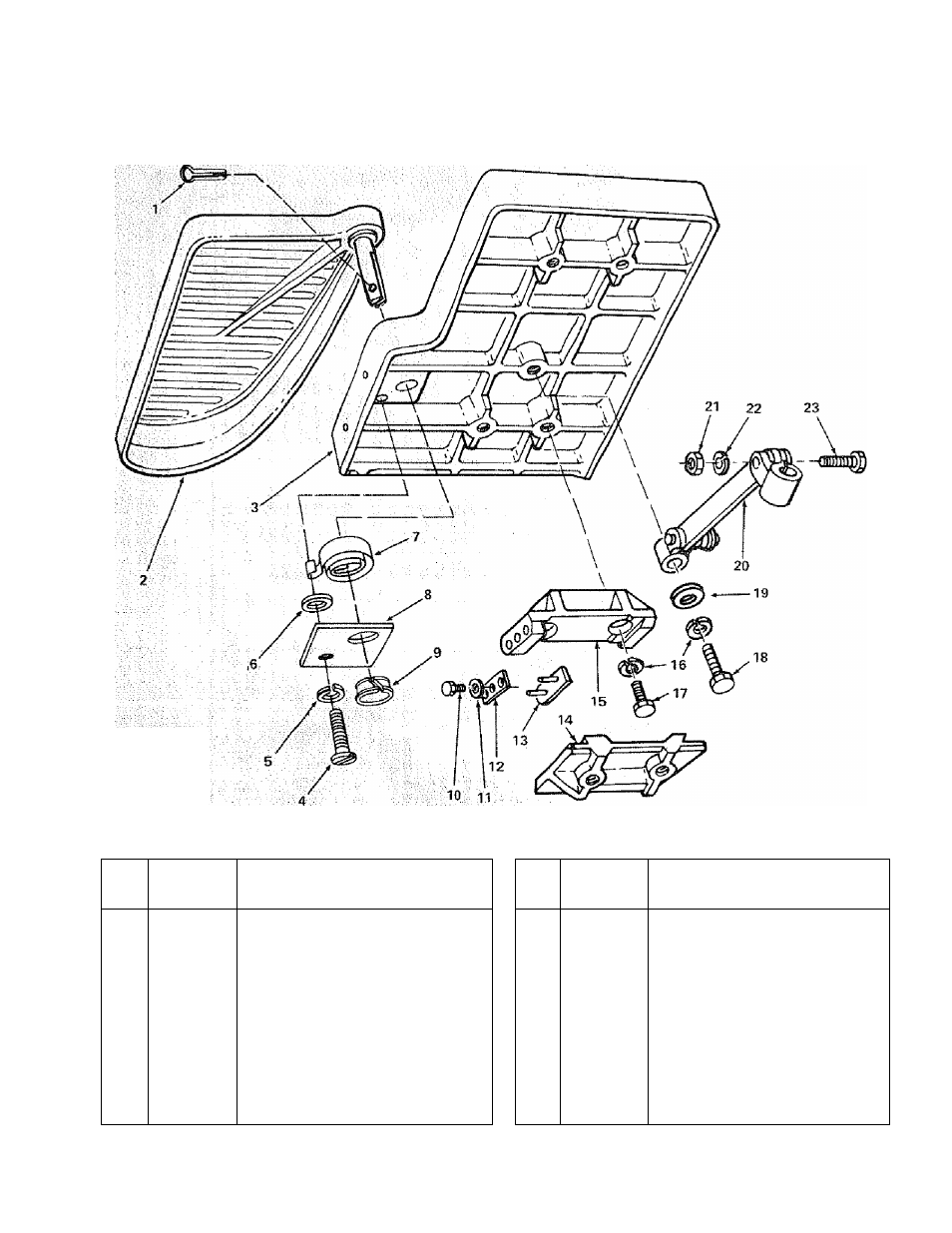

FIGURE 3 INFEED TABLE PARTS LIST
Key
No,
; Part
No.
Description
Key
No.
Part
No.
Description
1
STD561210
Pin, Cotter, 1/8 X 1
13
21422
Spacer, Dovetail
2
67015
Guard
14
21219
Dovetail, Male
3
67014
Table (with Name Plate!
15
21218
Dovetail, Female
4
STD511107
Screw Pan Hd. 10-32 x 7/8
16
STD551131
’Washer, Split Lock, 5/16
5
STD551210
Lockwasher No. 10
17
21635
Screw, Spl.
6
STD551010
Washer, No, 10
18
STDS23112
"Screw, Cap, 5/16-18 x 1-1/4
7
38779
Spring, Guard
Hex. Hd.
a
67011
Plate Support
19
STD551031
Washer, 5/16
9
67012
Bushing
20
21204
Linkage Assembly
10
STD522505
'“Screw, Cap, 1/4^20 x 1/2, Hex. Hd.
21
STD541025
'“Nut. Hex., 1/4-20
STD551025
*Washer, Plain, 17/64
22
STD551125
'“Washer, Split Lock, 1/4
:12.
21812
Plate, Tension
23
STD522510
““Screw, Gap, 1/4-20 x 1, Hex. Hd.
“Standard Hardware
Items—
May Be Purchased Locally-
30
