INCORRECT INCORRECT INCORRECT CORRECT

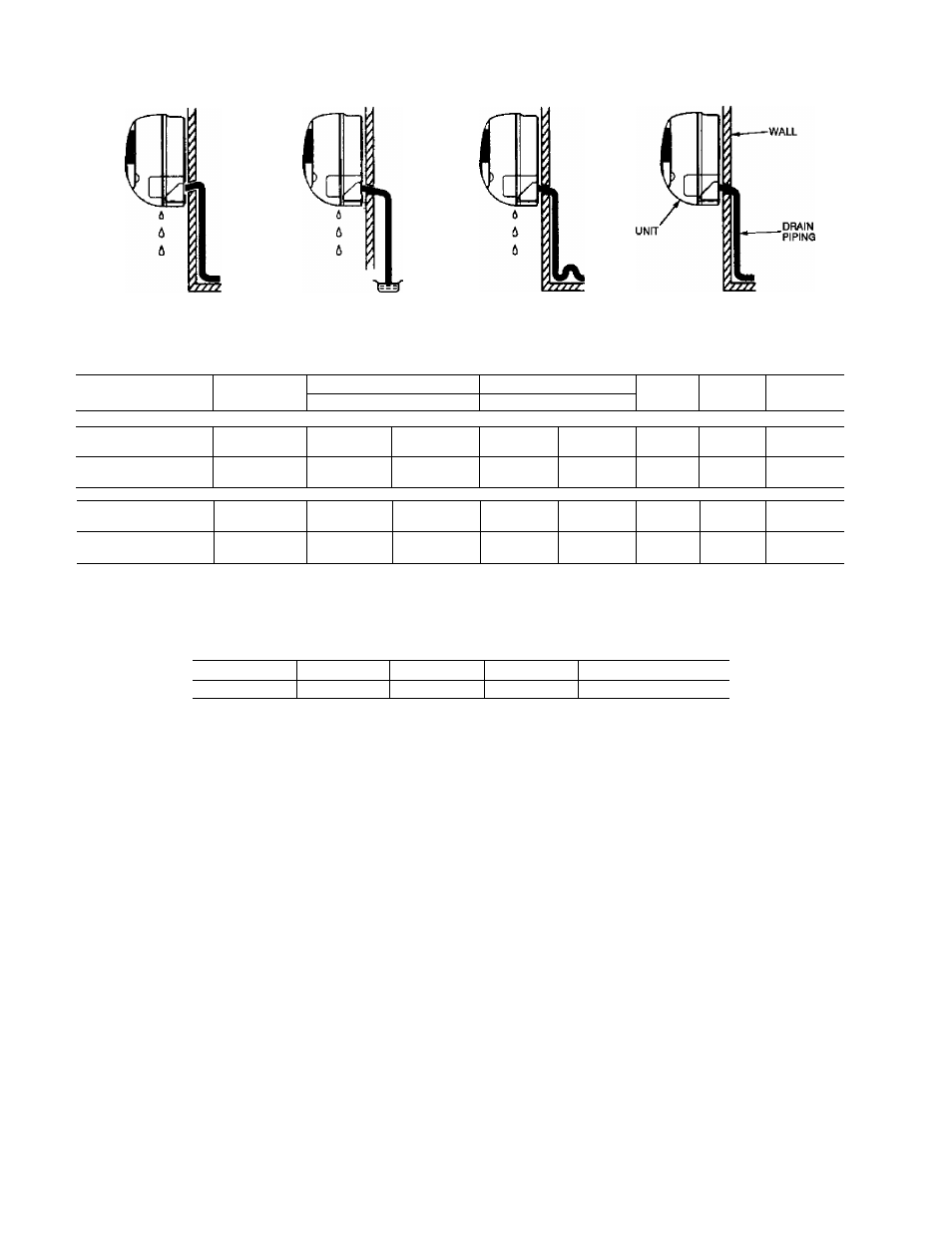

Fig. 10 — Fan Coil Unit Drainage System (Rear Piping Shown)
Table 7 — Electrical Data
UNIT
V-PH
(60 Hz)
VOLTAGE RANGE COMPRESSOR FAN
FLA
MCA MOCP
Min Max LRA RLA
Outdoor Section
38AN009 115-1 104 127 46.5 7.6 .76 12.1 15
38AN012 208/230-1 187 253 30.0 5.5 .35 8.5 15
38BK009 115-1 104 127 45.0 9.0 .76 11.2 15
38BK012 208/230-1 187 253 30.0 5.8 .35 12.4 15
Indoor Section
40QNB009 115-1 104 127 ---- .41 ___ ___
40QNB012 208/230-1 187 253 — — .23 — —
40QNE009 115-1 104 127 — — .41 — —
40QNH012 208/230-1 187 253 — — .23 — —
LEGEND
FLA — Full Load Amps MOCP — Maximum Overcurrenl Protection Amps
LRA — Locked Rotor Amps RLA — Rated Load Amps
MCA — Minimum Circuit Amps
Table 8 — Electric Heater Data
INDOOR UNIT V-PH (60 Hz) INPUT AMPS kW AT 230 V MIN WIRE SIZE (AWG)
40QNH012 230-1 3.3 .75 14
LEGEND
AWG — American Wire Gage
4. Wire the indoor units as follows:
• Cooling-Only, Size 009 Units:
Connect the black lead to terminal block location L.
Connect the white lead to terminal block location N.
Connect the bare copper ground lead to terminal block
location G. Connect the red lead to terminal block lo­
cation 3. See Fig. 11,
• Cooling-Only, Size 012 Units:
Connect the black lead to terminal block location LI.
Connect the red lead to terminal block location L2. Con­
nect the bare copper ground lead to terminal block lo­
cation G. Connect the yellow lead to terminal block lo­
cation 3. See Fig. 11.
• Heat Pump, Size 009 Units:
Connect the black lead to terminal block location L.
Connect the white lead to terminal block location N.
Connect the bare copper ground lead to terminal block
location G. Connect the yellow lead to terminal block
location 3, Connect the orange lead to terminal block
location 1. Connect the gray lead to terminal block lo­
cation 2. See Fig. 11.
• Heat Pump, Size 012 Units:
Connect the black lead to terminal block location LI.
Connect the red lead to terminal block location L2. Con­
nect the bare copper ground lead to terminal block
location G. Connect the yellow lead to terminal block
location 3. Connect the orange lead to terminal block
location 1. Connect the gray lead to terminal block lo­
cation 2. See Fig. 11.
5. Route the other end of the power cable through the wail
raceway. If required, run to indoor disconnect switch first.
6. Replace fan coil unit front cover.
OUTDOOR SECTION WIRING
IMPORTANT: Be sure to check local codes for any
field-supplied conduit which may be required.
1. Route ground and power wires.
2. Remove the cover to the electrical control compartment.
See Fig. 11.
3. Thread a threaded-type strain relief into the electrical sup­
ply outlets.
4. Route the 14-gage, 4-wire conductor (cooling only sys­
tems) or the two 14-gage, 3-wire conductors (heat pump
systems) from the indoor section through the upper elec­
trical conduit connection of the outdoor unit.
5. Route a field-supplied, 3-wire, 14-gage power conductor
through the lower electrical conduit connection of the
