HiNIHUM CLEARANCE FOR SERVICE
[NL£T AIR
2.36 OIA 160]
IRISHT SIDE VIEW I
EVAPORATOR
COIL
¿-KWCICOUT FOR LEFT SIDE
REFRIGERANT, DRAIN, POUER
AND SIGNAL LINES
INFRARED REMOTE OVERRIDE SWITCH
CBEHIND ACCESS COVER)
INDOOR AIR BLOWER WHEEL
I BOTTOM VIETI
KNOCKOUT FOR RIGHT SIDE -
REFRIGERANT, DRAIN, POWER
AND SIGNAL LINES
‘INDOOR FAN MOTOR
KNOCKOUT FOR BOTTOM
REFRIGERANT. DRAIN, POWER
AND SIGNAL UNES
NOTES:
1. Dimensions are in inches. Dimensions in [ ] are in miliimeters.
2.
Direction of airflow.
3. Refrigerant, drain, and power connections may be made rear, left side or
right side.
4. Refrigerant ts metered by capillary tubes in the outdoor unit. Insulate both
refrigerant lines.
5. Clearances of ZW on top of and to the left of the fan coil unit are absolute
minimums, Clearances of 10" are recommended.
6. Do not insert a trap in condensate drain line. Drain is internally trapped.
UNIT
WEIGHT
A
B
c
40QN
Lb
Kg
in.
mm
in.
mm
in.
mm
009
18.7
8.5
33.46
850
11.02
280
6.29
160
012
24.2
11.0
36.61
930
11.81
300
7.28
185

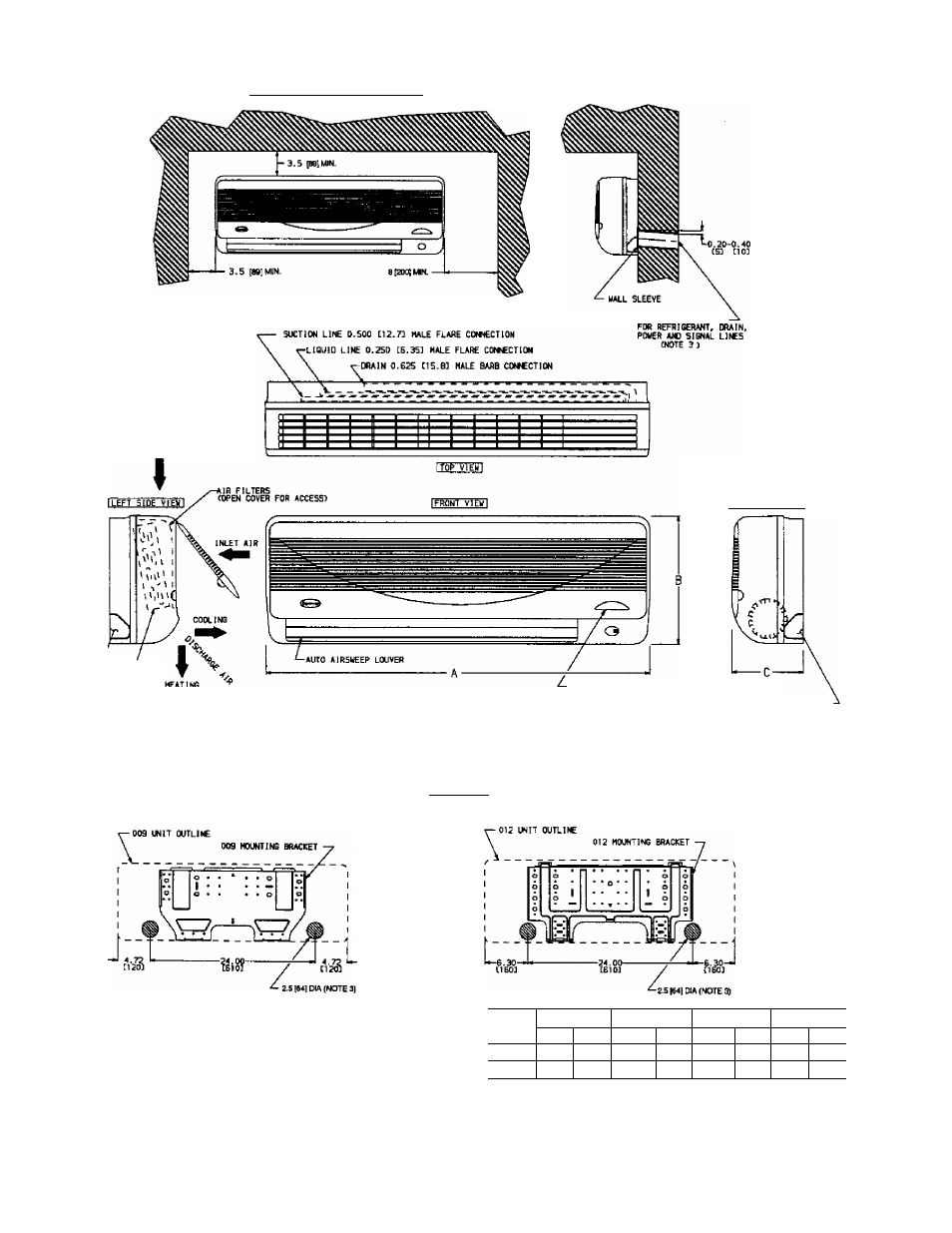

Fig. 4 — 40QN Dimensional Drawing
