î, Cooier
2. Cooter Befngeranî Lev«} Sight Giass
3. tow Refrigerant Temoerature SiiJb
4. TheroKxneter Weii
5. îv/iachioe Controf Cerner {See P .g. 8 end 9,)
8. Knockouts for P ie!c! Wiring
7. Condenser
S.
Cooler Suction Pipe
a. Coocte:Ker Discharge Pipe
■JO.
CondenserPloat Veive
■J t. Ecottomizer P'lpe
12. Cooter-Êconcmizer Ecualiziitg Damper
Access Cover
13. Refrigerant Connection, 1-t/2:MPT
14. Cooter Charging Valve, 3/4 MPT
: 15. ASME Nameplate
16. Machine informative Plate
17. Safety Code Sticker
18. Cooier Waterixix Vent, 3/4 NPT
19. Condenser WaterOox Drain, 3.'4 NPT
20. Condenser Water'oox Vent, 3/4MPT
21. Economizer
22. Purge Operating Switch
23. Tnormal Purge
24. Purge Vaive Operation Plate
25. Chilled Water Low-TemperatureCutout
26. Chilled Water Temperature Probe
27. Purge Operatirig Valves
28. Purge Refrigerant Level Sight Giass
29. Pu:^ Water Level Sight Glass
30. Purge Water Drai n Vaive
31. Rupture Disc Assembl'y
32. Economizer float Vaive

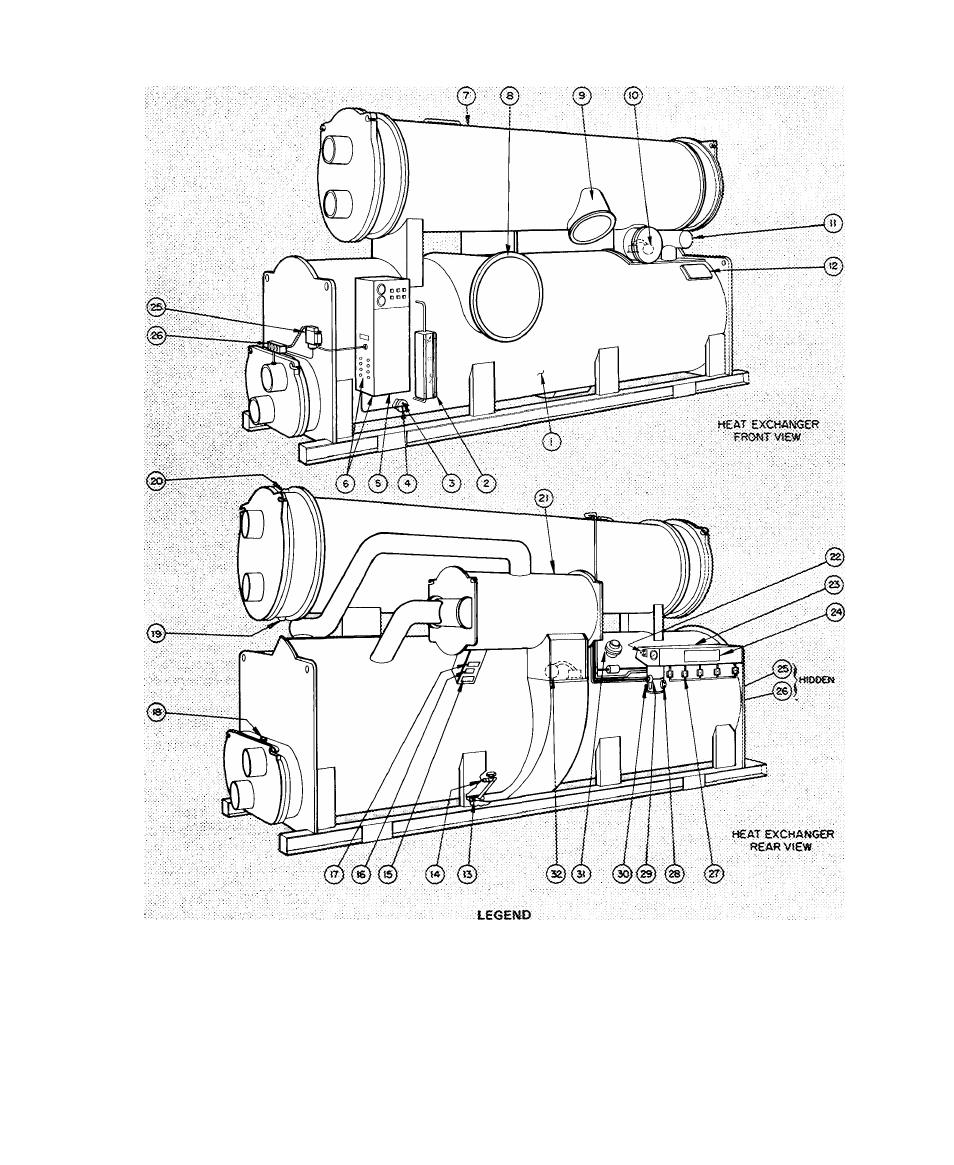

Fig. 1 — 17CB Machine Components (R-11 Unit shown)
