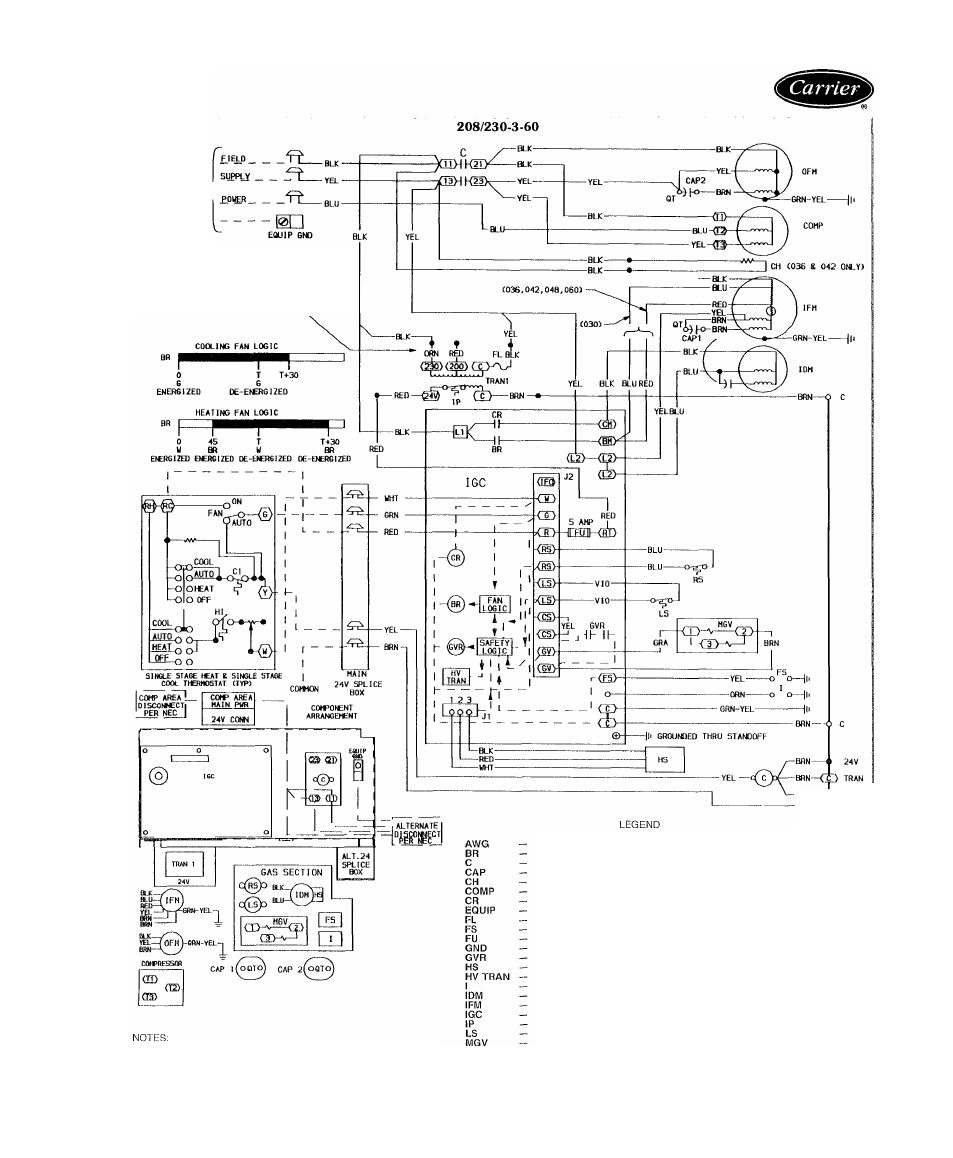

HAXIHUH WIRE
SIZE 2 AW6 ^

230 VOLT OPERATION AS SHOWN. FOR 208

VOLT OPERATION REVERSE RED AfC ORN
LEADS ON TRANSFORMER.

mN—

If any of the oiiginal wiie furnished must be tepiaced, it must be
replaced with type 90 C wite oi its equivalent.

The:mostat: HH07AT174, HH01AD040, HH01AD046, HH01 PC 184,

HH01PC185 Subbase; HH93AZ040, HH93AZ176
Use coppei conductors only

American Wite Gage
Blower Relay
Contactor
Capacitor
Crankcase Heater
Compressor Motor
Combustion Relay
Equipment
Fuse Link
Flame Sensor

Fuse
Ground
Gas Valve Relay

Hall Effect Sensor
Hiqh-Voltaqe Transformer

ignitor
Induced'Draft Motor

Indoor-Fan Motor

Integrated Gas Control
Internal Protector
Limit Switch
Main Gas Valve

National Electrical Code
Outdoor-Fan Motor
Power
Quadruple Terminal
Rollout Switch
Transformer

Field Splice

Terminal (Marked)

Terminal (Unmarked)

Splice

Factory Wiring
Field Control Wiring
Field Power Wiring
Accessory or Optional Wiring
To Indicate Common Potential
Only, Not to Represent Wiring
