OUTDOOR FAN ADJUSTMENT - The required
fan position is shown in Fig. 9. Loosen setscrews,
set fan at dimension indicated and retighten

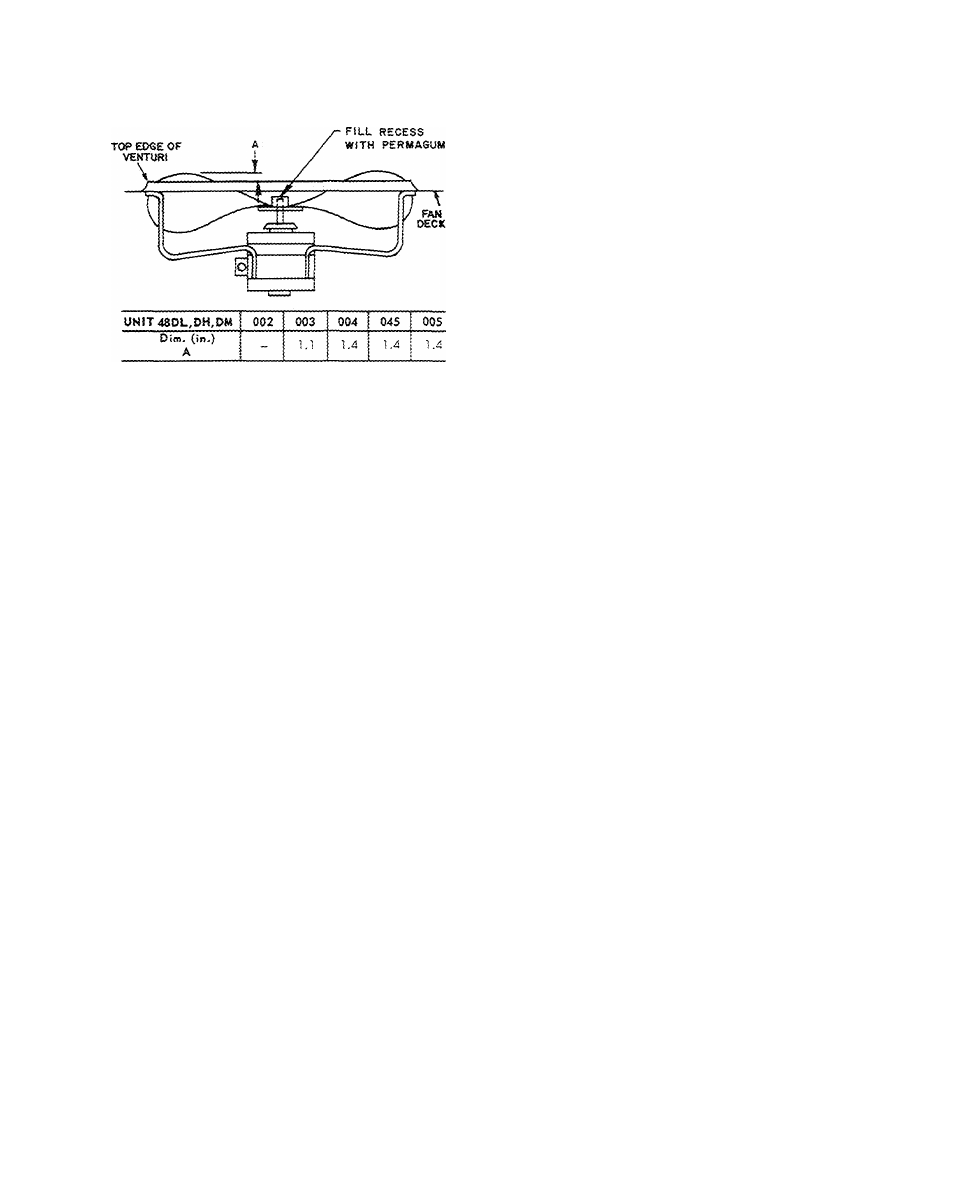

Fig. 9 — Outdoor Fan Clearance

Adjusting Spark Ignition

— If pilot fails to ignite

on size 003 — 005 natural gas units, check the
spark ignition system as follows:

1. Shut off power to ignitor.

2. Check that spark gap is 1/8 — 3/16 inch.
3. Make sure that spark generator is securely

grounded.

4. Check that high-voltage lead is securely con­

nected between generator and electrode body.

5. Restore power. Check for 24-volt supply to

primary side of generator.

Lubrication

FAN MOTOR BEARINGS are factory lubricated
and do not require service for 3 to 5 years,
depending upon type of service. When required,
clean and relubricate per motor manufacturer’s
instructions.
COMPRESSOR contains a factory oil charge. If oil
is lost thai leakage, refer to Carrier Standard
Seiwice Techniques Manual SM-1, Chapter 1 for oil
recharging procedure.

TROUBLESHOOTING - HEATING SYSTEM

Burner Will Not Operate

Power failure — Power switch off, blown line

fuse; defective wiring.

No power to controls — thermostat set too low,
dirty or defective: defective transformer, faulty
limit switch; blown fusestat

Burner will not ignite — no gas to unit; faulty
valve or pilot switch, faulty glow coil or spark
ignitor, dirty pilot

Burner Operates, But Heating is Inadequate

Unit undersized — unit size selected incorrectly

Fuel input too low — wrong orifice size,
regulator set too low
Thermostat opens too soon — wrong antic­

ipator setting: thermostat out of calibration,

wrong thermostat location; thermostat set
wrong

Limit switch cycles burner — dirty filters,

faulty fan switch or motor, limit switch set

wrong, duct system restricted

Poor Combustion and Flame Characteristics

Smoky flame — insufficient air; flue restriction

Noisy burner — too much air, incorrect input

TROUBLESHOOTING - COOLING SYSTEM

Compressor Will Not Start

Unequalized system pressure — Give temporary
capacitance boost. Refer to Check Compressor

Start in Start-Up section.
Power failure — power switch o f f ; blown line

fuse; defective wiring.

No power to controls — thermostat set too low,

or dirty or defective, defective transformer,
contactor coil open, loose leads from closed
contactor.

Power to compressor — motor windings open,
contactor closes, then opens

Compressor Runs But Cooling is Insufficient

Low suction pressure — restricted air flow,

capillary

tubes

restricted,

low

refrigerant

charge.

Low head and high suction pressure defective

compressor valves.

Indoor fan stopped — loose or broken leads;

faulty capacitor, internal short circuit.

Compressor Will Not Restart

Power failure — power switch o f f , blown line

fuse.

Power at closed contactor — faulty start relay
or capacitor (if used) (add accessory start

package), contactor, run capacitor or com­
pressor, low line voltage (must be within 10%

of nameplate voltage.)

Compressor Cycles On Overload

Insufficient condenser air — check condenser

fan position in reference to orifice as in Fig. 9.

Condenser air restricted — dirty coil, air flow
restricted.
Condenser air recirculating — obstruction de­

flecting air flow

Improper line voltage — circuit overloaded,

loose electrical connections

Faulty run capacitor — capacitor shorted or low

on capacitance (mfd).
Noncondensables in system — moisture or air in

system.

System overcharged — excessive refrigerant
No refrigerant in system — leak in system
System restricted — capillary tubes restricted or

plugged; kinked tubing.

Fan slipping on motor shaft — setscrews either

loose or missing from fan.

Fan motor bearing seized — lack of oil or
bearing failure.
Fan motor defective — internal short circuit.

For replacement items use Carrier Specified Parts.

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Tab 6

Form 48DH-6SI Supersedes 48DH-3SI

Printed in U S A

9-75

Codes D and MS

Cataiog No 534—801
