50DF Modu-Pac® |

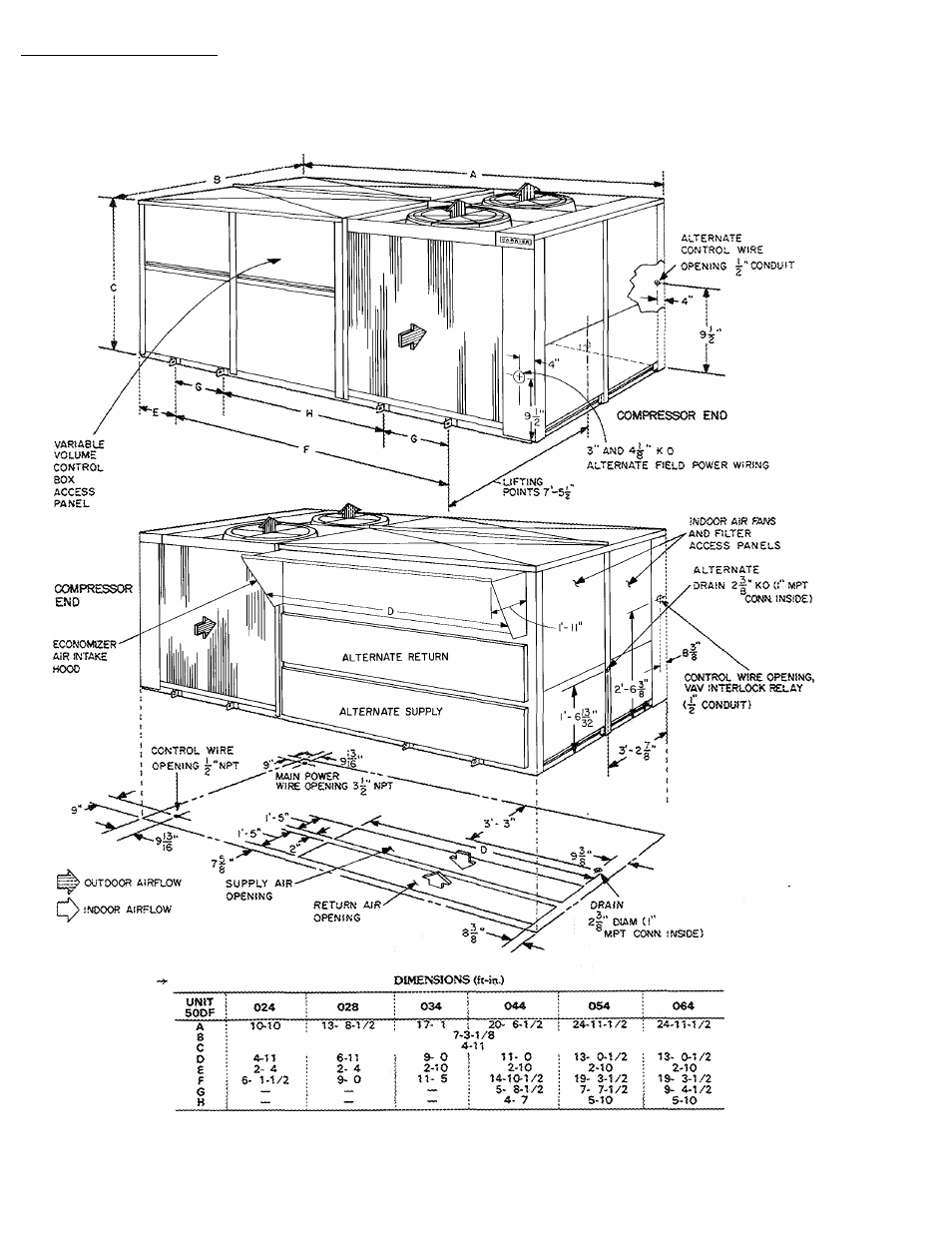

Base unit dimensions
NOTES:
1 Allow 12ft above un it, 8 ft on filter access pane! end and A ft on recna ming sides of unit for airflow and service
clearance.
2. for smaller clearances, contact Carrier,
3. Refer to Roof Curb Dimensions for details of roof openings.
Certified dimension drawings avaiiabie on request.
