4.2.2 Default calibration
Default calibration for
matrix type 1
The factory calibration curve for matrix type 1 was determined by
measurements of typical activated and return slurries and can be used
for similar applications after adaptation of the Correction factor setting
(see section 4.2.3).

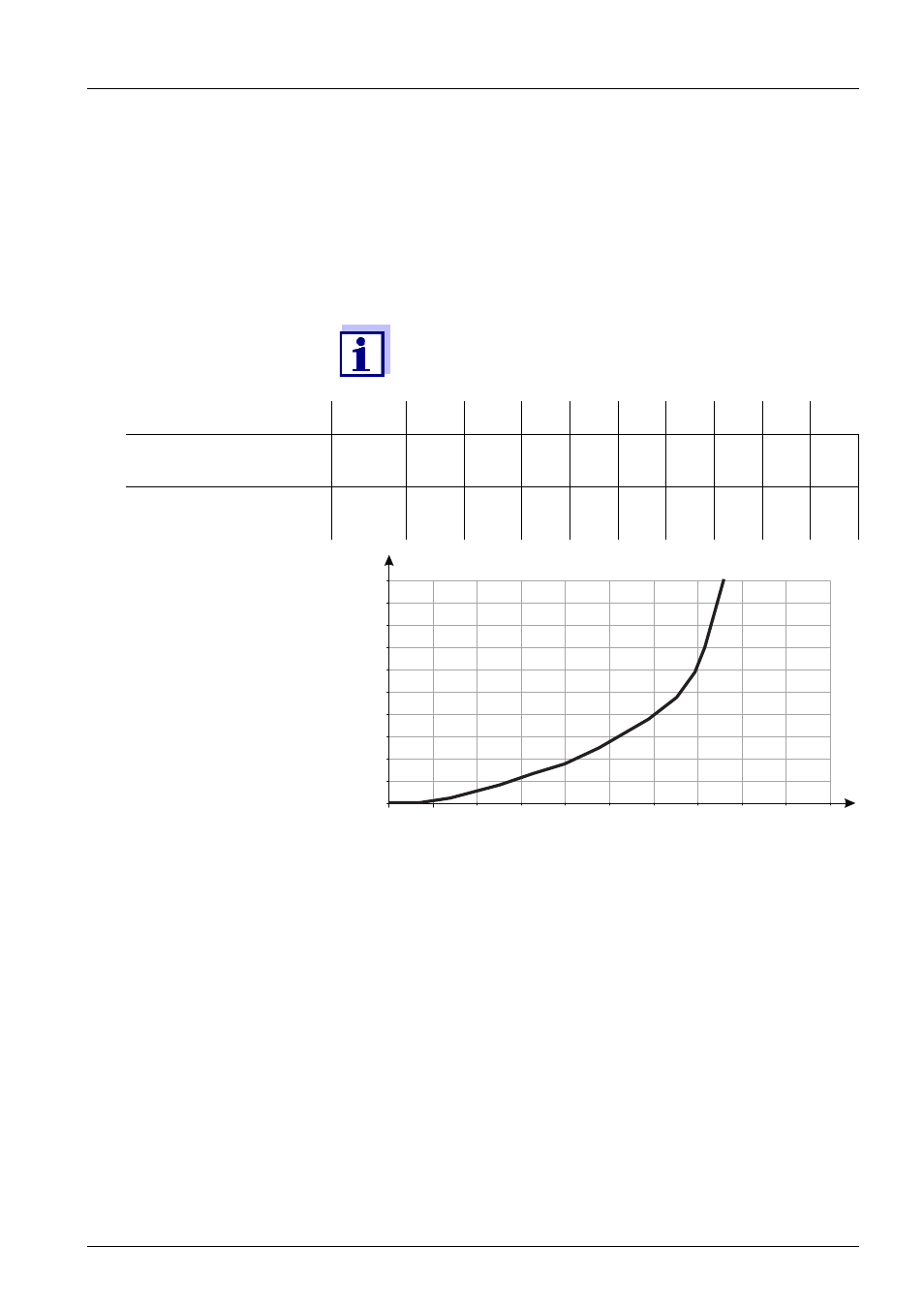

Fig. 4-1 Default calibration for matrix type 1
Below the smallest value, the calibration curves are
extended to the zero point and, above the largest value,
they are extended to the end of the measuring range.
Value pairs 1 2 3 4 5 6 7 8 9 10
Total suspended solids
[1000 mg/l] TSS
17.57 15.55 11.62 8.80 6.21 4.42 3.39 2.40 0.77 0.25
SiO2 value
[1000 mg/l] SiO2 7.16 7.05 6.52 5.85 4.86 3.91 3.22 2.60 1.37 0.61
TS [1000 mg/l]
SiO2 [1000 mg/l ]
25
0,9
20
0,7
15
0,5
10
0,3
5
0,1
0
0 1 2 3 4 5 6 7 8 9 10
