ViSolid
®
700 IQ (SW) Commissioning
ba76040e04 05/2014 3 - 7
Measurement in a
channel
In an open channel, the sensor can be immersed in the sample using
a wall mounting assembly, e.g. EH/W 170 wall mounting assembly,
(please note the minimum immersion depth).
Mount the sensor rigidly in the channel. At the same time, tilt the sensor
approx. 45 ° against the direction of the flow.

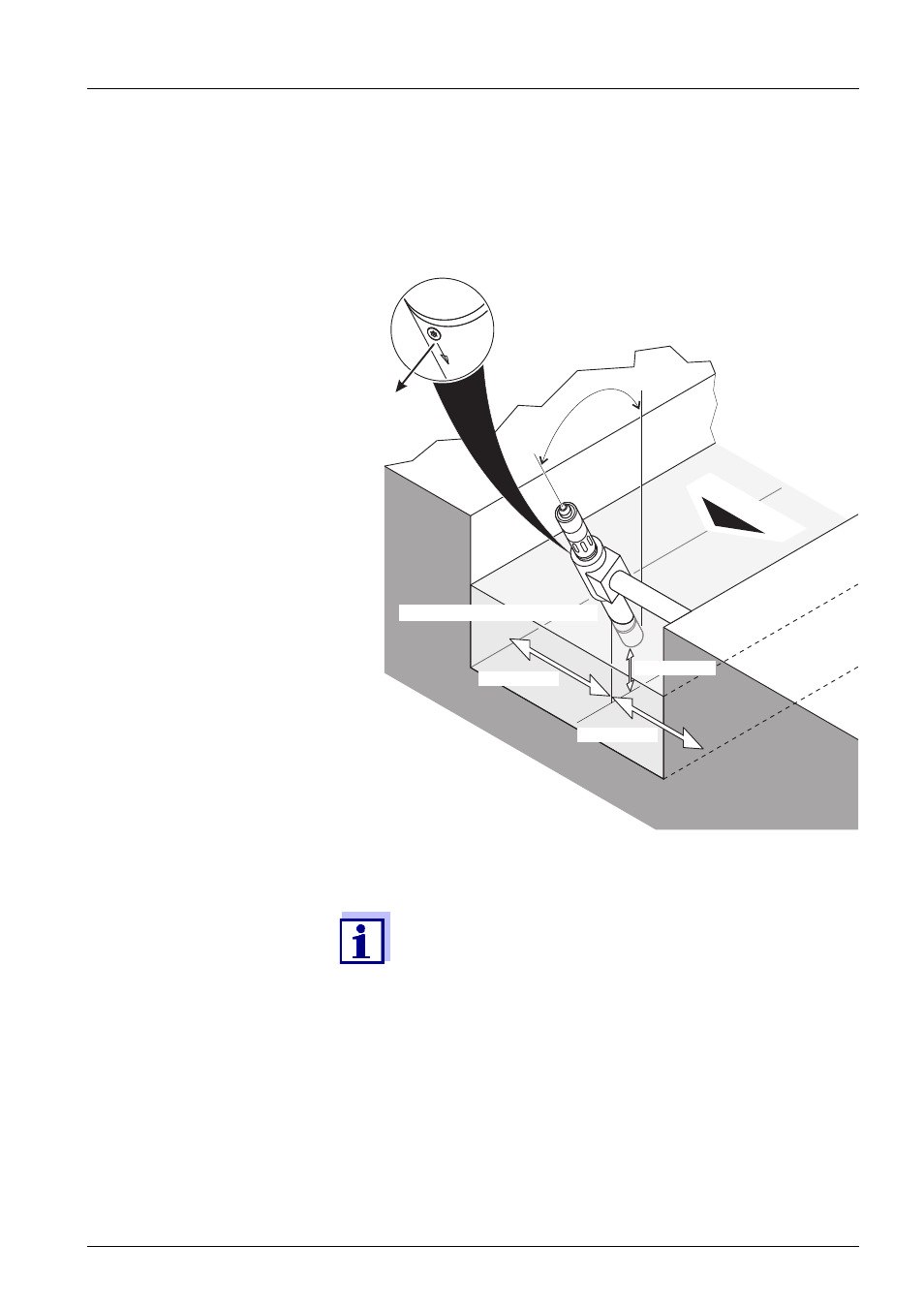

Fig. 3-4 Total suspended solids sensor in an open channel with wall mounting
assembly, EH/W 170
For exceptions to the direction of flow, see section
3.3.3 F
LOW DIRECTION
.
min. 10 cm
min. 10 cm
Ground
Marking
in this
direction
Direction of flo
w
min. 10 cm
Immersion depth min. 7 cm
45 °
