ViSolid
®
700 IQ (SW) Commissioning
ba76040e04 05/2014 3 - 11
them dry using compressed air).
Connecting the sensor
to the sensor
connection cable

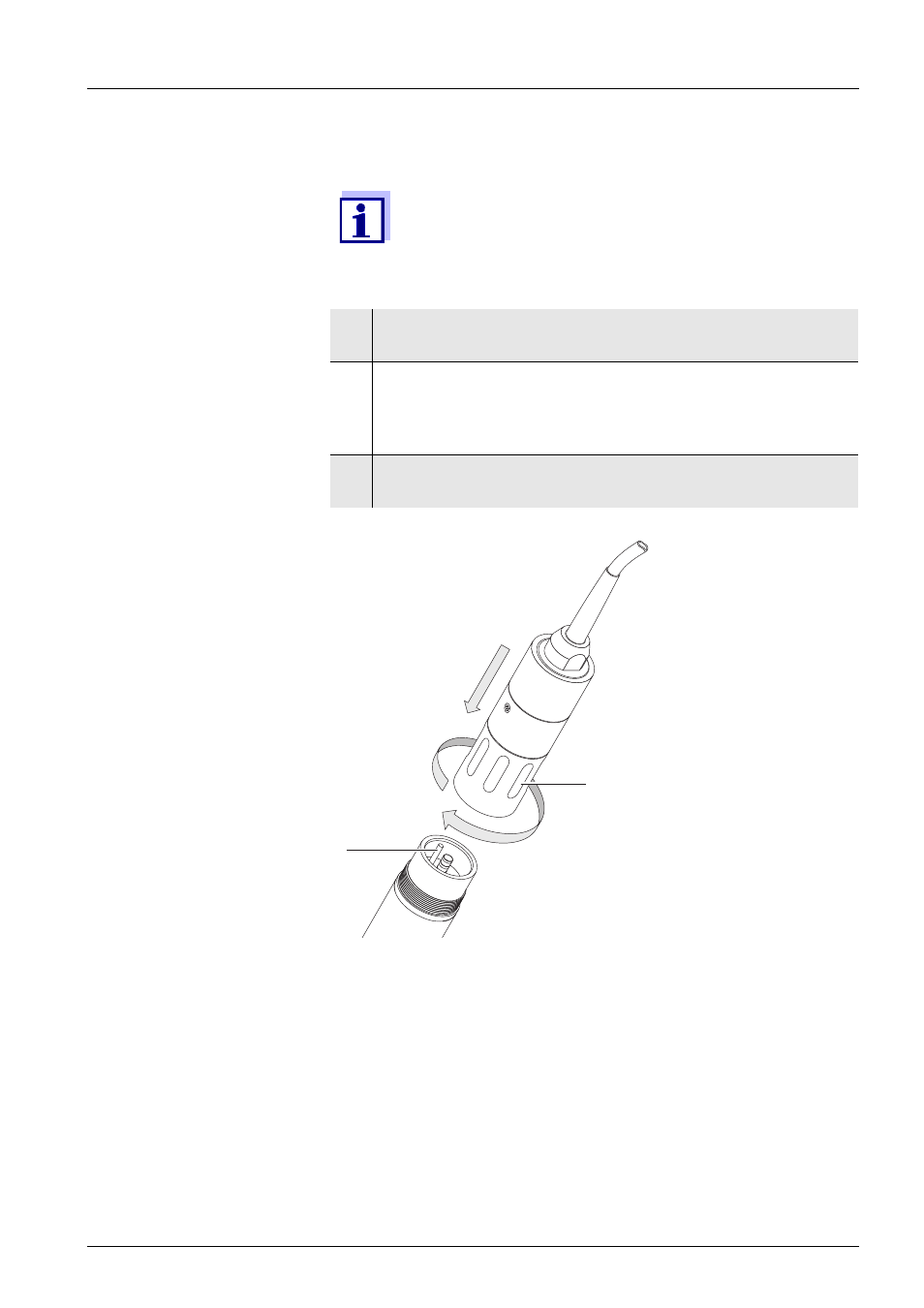

Fig. 3-8 Connect the sensor
Do not suspend the sensor on the sensor connection cable.
Use a sensor holder or an armature. Information on this
and other IQ
S
ENSOR
N
ET accessories is given in the YSI
catalog and on the Internet.
4 Take the protective caps off the plug connections of the sensor
and the SACIQ sensor connection cable, and keep them safe.
5 Plug the socket of the SACIQ (SW) sensor connection cable
onto the plug head connector of the sensor. At the same time,
rotate the socket so that the pin in the plug head connector (1)
clicks into one of the two holes in the jack.
6 Then screw the coupling ring (2) of the sensor connection
cable onto the sensor up to the stop.
SACIQ
1
2
