40mm & 60mm Proportional Regulator 2R210

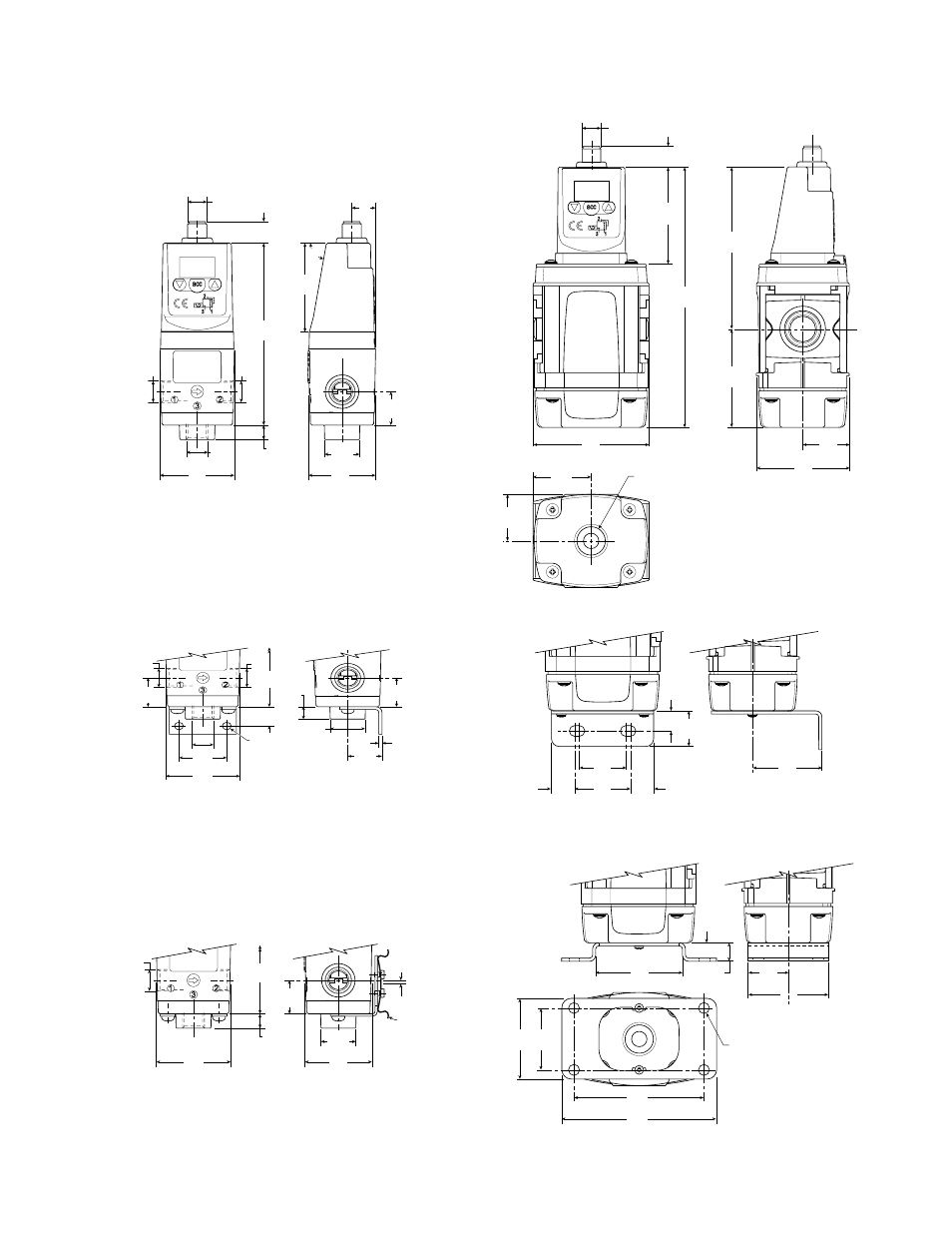

Dimensions
Dimensions are in mm (Inches)
8
0.55
(14)
4.49
(114)
1.85
(47)
1.18
(30)
1/4 1/4
1/4
Ш 0.87
(22)
0.85
(21.5)
0.08
(2)
0.35
(9)
0.83
(21)
0.83
(21)
Ш 0.22
(5.5)
4 Pin M12 Connector
0.53
(13.5)
0.35
(9)
2.19
(55.5)
80°
4.49
(114)
1.85
(47)
1/4 1/4
1/4
0.59
(15)
1.65
(42)
Ø 0.87
(22)
0.83
(21)
40mm Bottom Exhaust Version
1.83
(46.6)
1/4(3x)
1.65
(42)
21
(0.83)
0.09
(2.3)
DIN-Rail
Clamp
4.49
(114)
Ø 0.87
(22)
0.35
(9)
Dimensions are in mm (Inches)
Foot Bracket
DIN Rail Bracket
4 Pin M12 Connector
0.56
(14.3)
6.62
(168.1)
2.46
(62.6)
4.12
(104.6)
2.50
(63.5)
1.18
(30)
2.95
(75)
1.48
(37.5)
1/2” Port
1.18
(30)
2.36
(60)
60mm Bottom Exhaust Version
.59
(15)
.59
(15)
.59
(15)
.98
(25)
1.18
(30)
1.42
(36)
1.77
(45)
L Bracket
.47
(12)
2.20
(56)
1.02
(26)
2.05
(52)
1.57
(40)
2.05
(52)
3.31
(84)
3.94
(100)
Ø .28
(7)
4 Holes
Foot Bracket
