27

Manual Identification

Neuron ID of a device can also be entered manually through a commissioning or service tool. Neuron ID should
be located on the Echelon chip of the device being commissioned.

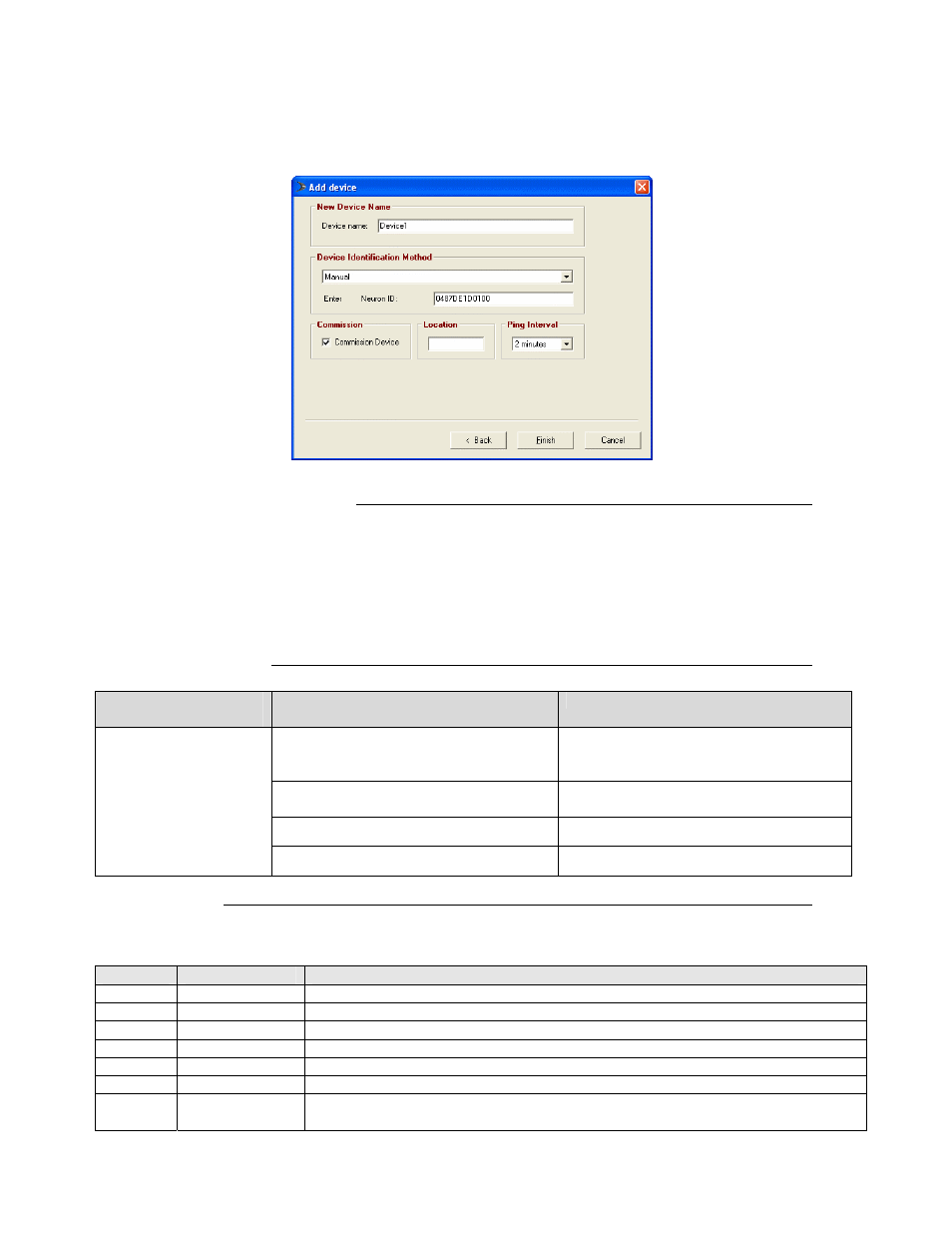

Figure 8 shows an example of a Manual Neuron ID request made through a commissioning tool.

Figure 8: Manual Neuron ID request


Tips And Things You Need To Know

In order to operate nviAuxOut (auxiliary output) from the network, Aux contact configuration (Auxcont

nciGenOpt) needs to be set as “Network Controlled”;

If the heartbeat is lost, the module will release the network sensor value for the Room Temperature

(nviSpaceTemp) and the Outdoor Temperature (nviOutdoorTemp);

The SeqOpera value (Sequence of Operation) depends on the nviHeatCool value and nviAuxHeatEnable

value. See note 1 on page 15 for all the details;


Troubleshooting Section

Error / Trouble
Condition

Possible Cause

Solution

The LON network has too many
devices.

Do not exceed the maximum number of
devices and maximum length allowed
by the EIA-485 specifications.

Too many devices were installed
without any repeaters.

Repeaters need to be installed as
specified in this document.

The LON cable runs are broken

Locate the break and correct wiring

Thermostat does not
come online

The thermostat does not have power

Apply power to the thermostat


Document Control


Document Name:

ITG-VT72_73-PIR-LON E07

Document Filename:

ITG-VT72_73-PIR-LON E07.pdf

Revision

Date

Changes

01

January 4, 2006 Created to coincide with release of the VT7300 as a LonMark certified product.

02

April 5, 2006

Updated the DRF files section and removed any application guide reference

03

July 11, 2006

Modified the Software Files section and added the RoHS / Non-RoHS section

04

Aug 15, 2006

Modified Note 1 on page 15

05

Nov 21, 2007

Added modifications required for PIR support to the new VT73xxX5xxxE release

06

Jan 21, 2008

Added additional modifications required for PIR support

07

Feb 03, 2009

Added changes for new PID supported 80:00:C5:55:00:04:04:20
Added revision history table for all VT7200X & VT73xxX PID’s
