Manual Identification

Neuron ID of a device can also be entered manually through a commissioning or service tool. Neuron ID
should be located on the Echelon chip of the device being commissioned.

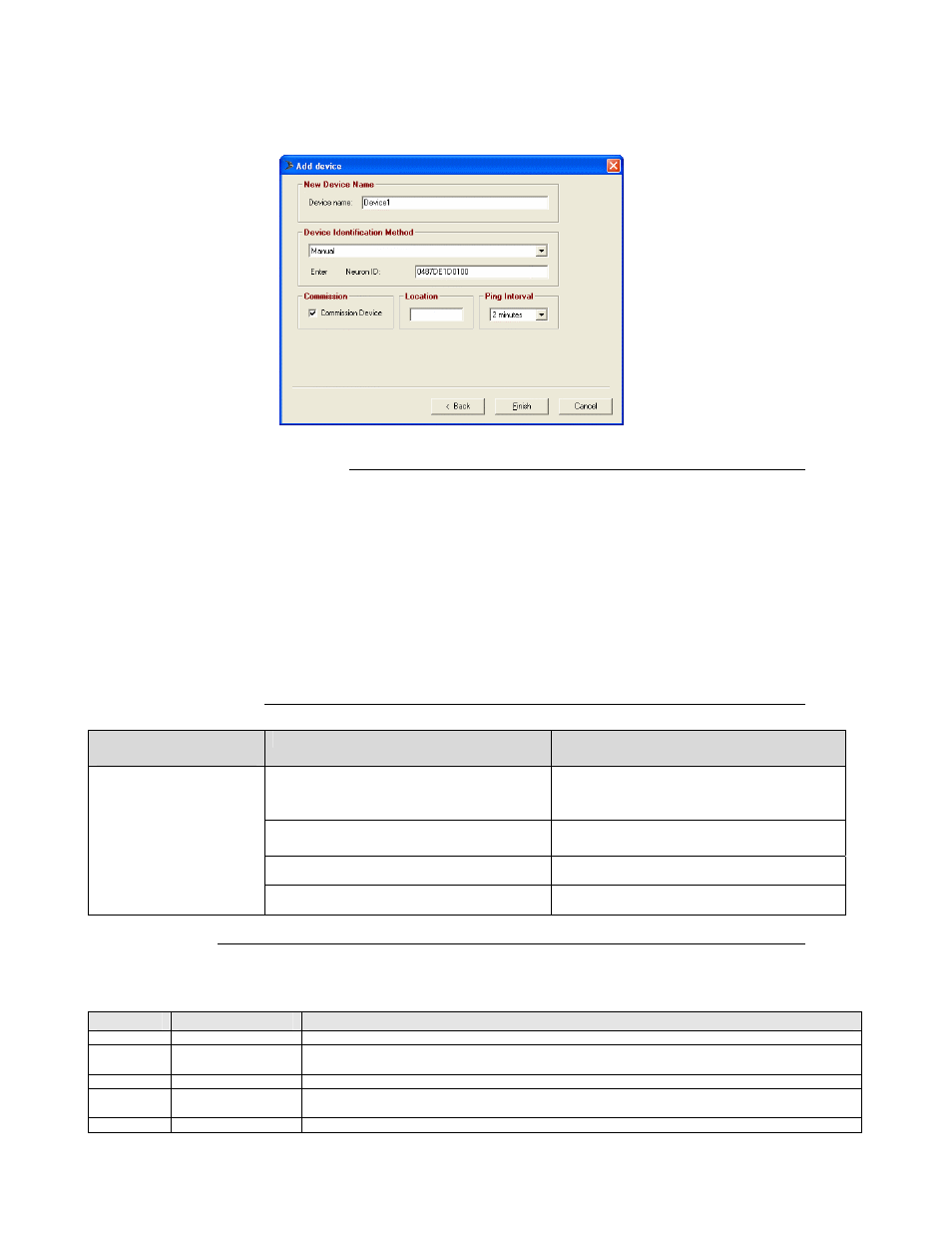

Figure 8 shows an example of a Manual Neuron ID request made through a commissioning tool.

Figure 8: Manual Neuron ID request


Tips And Things You Need To Know

In order to operate nviAuxOut (auxiliary output) from the network, Aux contact configuration (Auxcont

nciGenOpt) needs to be set as “NetworkControlled”;

If the heartbeat is lost, the module will release the network sensor value for the Room Temperature

(nviSpaceTemp) and the Outdoor Temperature (nviOutdoorTemp);

The heartbeat parameter of a Tridium front-end should be set at the slowest configuration possible so

that nviTimeStamp updates correctly;

With any LNS Tools, nviTimeStamp should be set to refresh everyday or on power-up;
For nciMultOpt, Viconics strongly recommend to use either one of the following format file:

• UNVT_rt_opts#US or UNVT_rt_opts#SI for Roof Top models

• UNVT_hp_opts#US or UNVT_hp_opts#SI for Heat Pump models


Troubleshooting Section

Error / Trouble
Condition

Possible Cause

Solution

The LON network has too many
devices.

Do not exceed the maximum number of
devices and maximum length allowed
by the EIA-485 specifications.

Too many devices were installed
without any repeaters.

Repeaters need to be installed as
specified in this document.

The LON cable runs are broken

Locate the break and correct wiring

Thermostat does not
come online

The thermostat does not have power

Apply power to the thermostat


Document Control

Document Name:

ITG-VT7600-PIR-LON-E05

Document Filename:

ITG-VT7600-PIR-LON-E05.pdf

Revision

Date

Changes

1.0

January 4, 2006

Created to coincide with release of the VT7600 as a LonMark certified product.

2.0

April 25, 2006

Removed any Application Guide reference, set MS default Stpt to 55 and modified the nciGenOpt
– DIs enumeration and removed a line in the nvoDischAirTemp on page 10

3.0

July 11, 2006

Modified the Software Files section and added a RoHS / Non-RoHS section

4.0

Feb 06, 2009

Added changes for new PID supported 80:00:C5:55:00:04:04:21
Added revision history table for all VT7600 PID’s

5.0

June 4, 2009

Removed nvoOutdoorTemp
