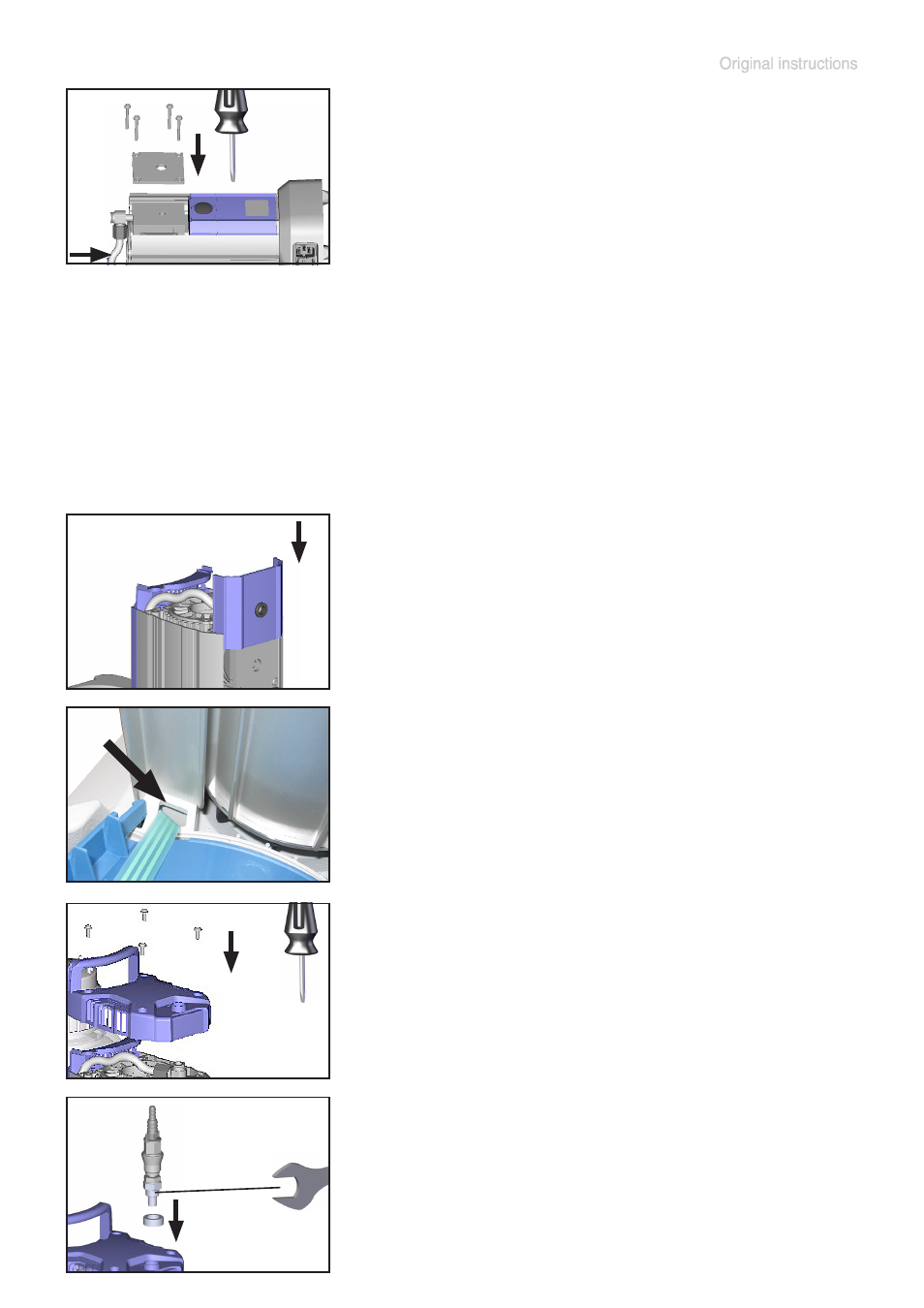

Put on housing cover and housing cover in-
Put on housing cover and housing cover in-
sert.
+
Move housing cover insert slightly to ensure
that the head covers are correctly positioned.
➨
Pay attention to washers and position screws.
Screw in 4 screws with washers at the hous-
ing cover diagonally, loosely at first with a
Torx driver T20, then tighten.
+
Do
not tighten until head cover is in contact
with housing, maximum torque: 2.2 ft
.
lb
f
(3
Nm).
➨
Position hose to elbow fitting and screw on
the union nut.
➨
Position BVC upright.
➨
Assemble the cover so that the groove in the
in the face side of the cover is at the inlet of
the pump.
➨
Screw in hose nozzle or hose nozzle with
coupling using an open-ended wrench.
➨
Screw on cover, paying attention to wash-
ers.
Maximum torque: 2.2 ft
.
lb
f
(3 Nm).
➨
Only BVC professional / G: In case the cover
plate is shifted, ensure that the ribbon cable
is not squeezed during reassembly.
