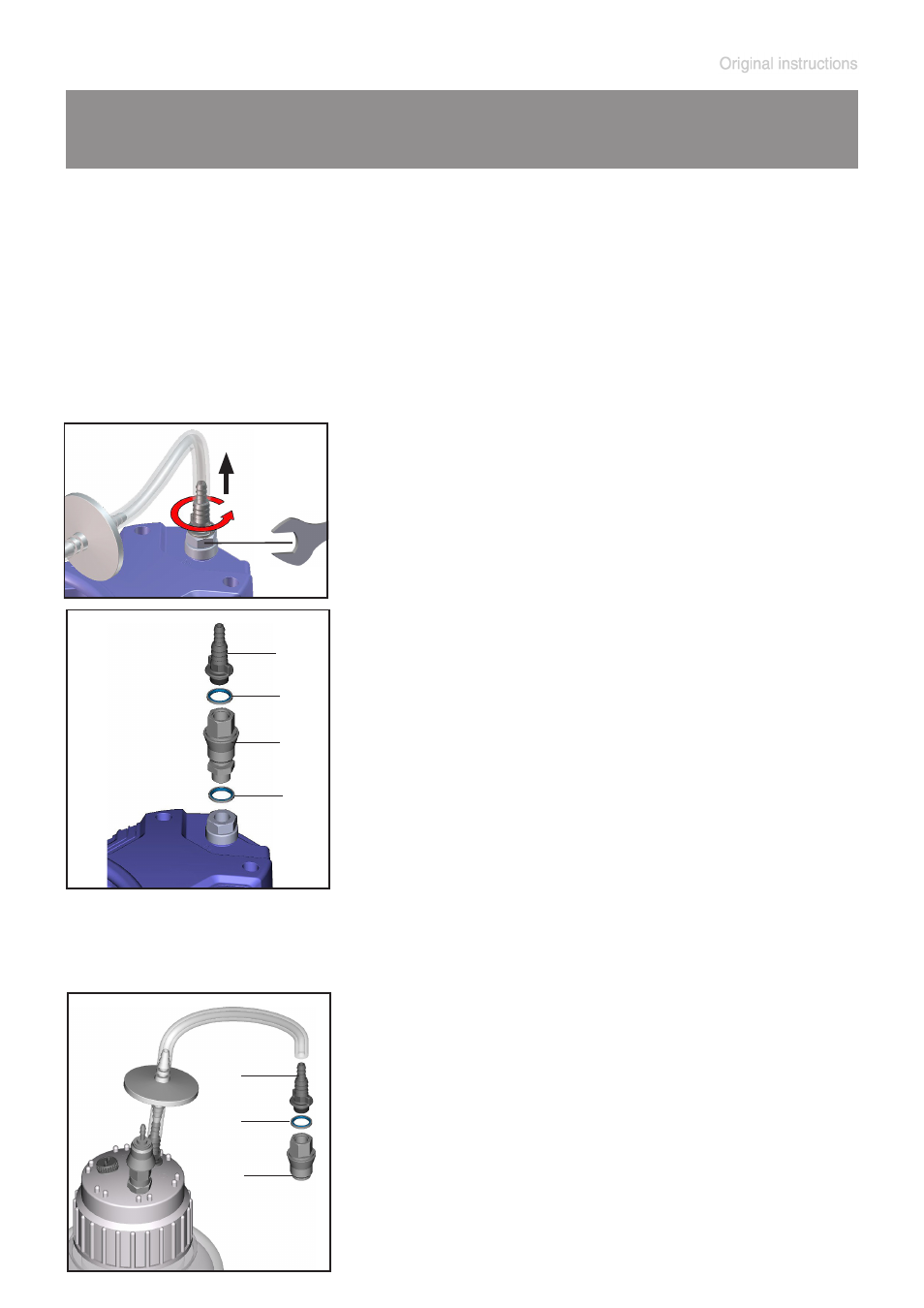

Assembling quick coupling bottle - pump unit
(extension set)
Remove tubing.
Disassemble hose nozzle.
Hold counter piece with open-ended wrench
size 19 mm.
Assemble coupling (2) with seals (1, 3) and
hose nozzle (4).
Hold counter piece with open-ended wrench
size 19 mm.
Connect tubing.
1
2
3
Attention: The extension set “Quick coupling bottle - pump unit”
is designated for two different extension versions. Therefore the
set consists of parts, which may not be necessary in the individual
case.
Redundant parts are not credited by VACUUBRAND.
Assembling to pump inlet
Assembling to an additional bottle
Assemble coupling part (1) with seal (2) and
hose nozzle (3).
Connect tubing.
