Load Cell Connections
The indicator can connect with a maximum of eight
(8) 350Ω load cells, 4 wire or 6 wire configurations.
Excitation voltage for the load cell is 5VDC, the
maximum output current is 120mA.

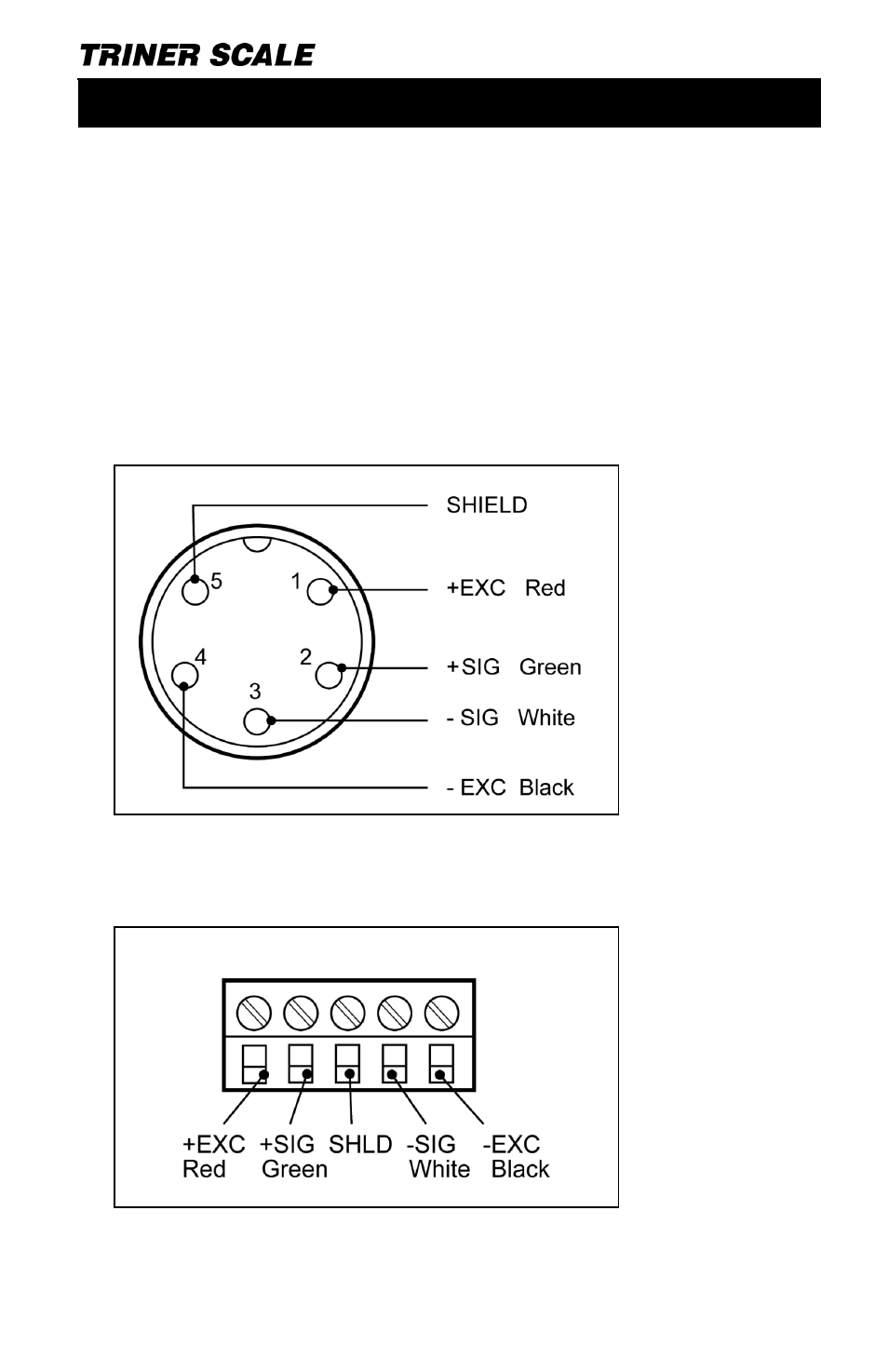

TS-700MS/WB Load Quick-Connect Pins
TS-700 SS Load Cell Terminal Block
