Triner Scale 600-E Series User Manual
Page 9
Page 2-1
CHAPTER 2: INSTALLATION
2.1 PARTS
LIST
PART
NUMBER
DESCRIPTION 600-E
QTY
600-FW
QTY
600-ELP
QTY
SC105 SCALE
BASE
1 1 1
SSCOV
STAINLESS STEEL PLATFORM COVER
1
1
1
SSKICK
STAINLESS STEEL KICKPLATE
N/A
2
N/A
CMOD-1
SCALE CONTROL MODULE
1
1
1
FOOT02
2” DIA. LEVELING FEET WITH LOCKNUTS
4
4
N/A
FOOT03
3” LEVELING FOOT, CUSHION RUBBER MOUNT WITH ¼-20
JAM NUT
N/A N/A 4
DMOD-1
DIGITAL DISPLAY MODULES
2
2
2
KMOD-1 KEYPAD
MODULE
1
1
1
DCBL-1
12’ DIGITAL DISPLAY CABLES
2
2
2
KCBL-1
12’ KEYPAD CABLE
1
1
1
WGSCR-1
WING SCREWS (LONG)
6
6
6
WGSCR-2
WING SCREWS (SHORT)
6
6
6
WDSCR-1
SCALE ANCHOR WOOD SCREWS (#12 x 4 PHL HD)
8
N/A
N/A
WDSCR-2
SCALE ANCHOR WOOD SCREWS (#8 x 1 PHL HD)
N/A
N/A
12
ABLT-1
¼ X 3” CONCRETE ANCHOR BOLT
N/A
8
N/A
RCBL-1
OPTIONAL DISPLAY RIBBON CABLE ADAPTER WITH
GROUND STRAP
2
2
2
RCBL-2
OPTIONAL KEYPAD RIBBON CABLE ADAPTER WITH
GROUND STRAP
1
1
1
LBKT
OPTIONAL “L” BRACKET
1
1
1
WDSCR-2
OPTIONAL “L” BRACKET WOOD SCREWS (#8 X 1 PHL HD)
2
2
2
AC004
120-240 VAC INPUT, 12 VDC OUTPUT (800 Ma) AC
ADAPTER
1 1 1
Table 2-1: Parts List
2.2 Scale Base Installation (600-E Standard Style)
1. Remove the stainless steel platform cover by lifting it straight up. Remove the carton of
electronics and hardware wedged between the scale structures. Open the carton and
verify that all components are present.
2. Tilt the scale base on one of its edges to access the bottom of the scale. Remove the ¼”
shipping screw from the bottom of the scale (see fig. 2-1). If this screw is not removed
the scale will not operate correctly!.

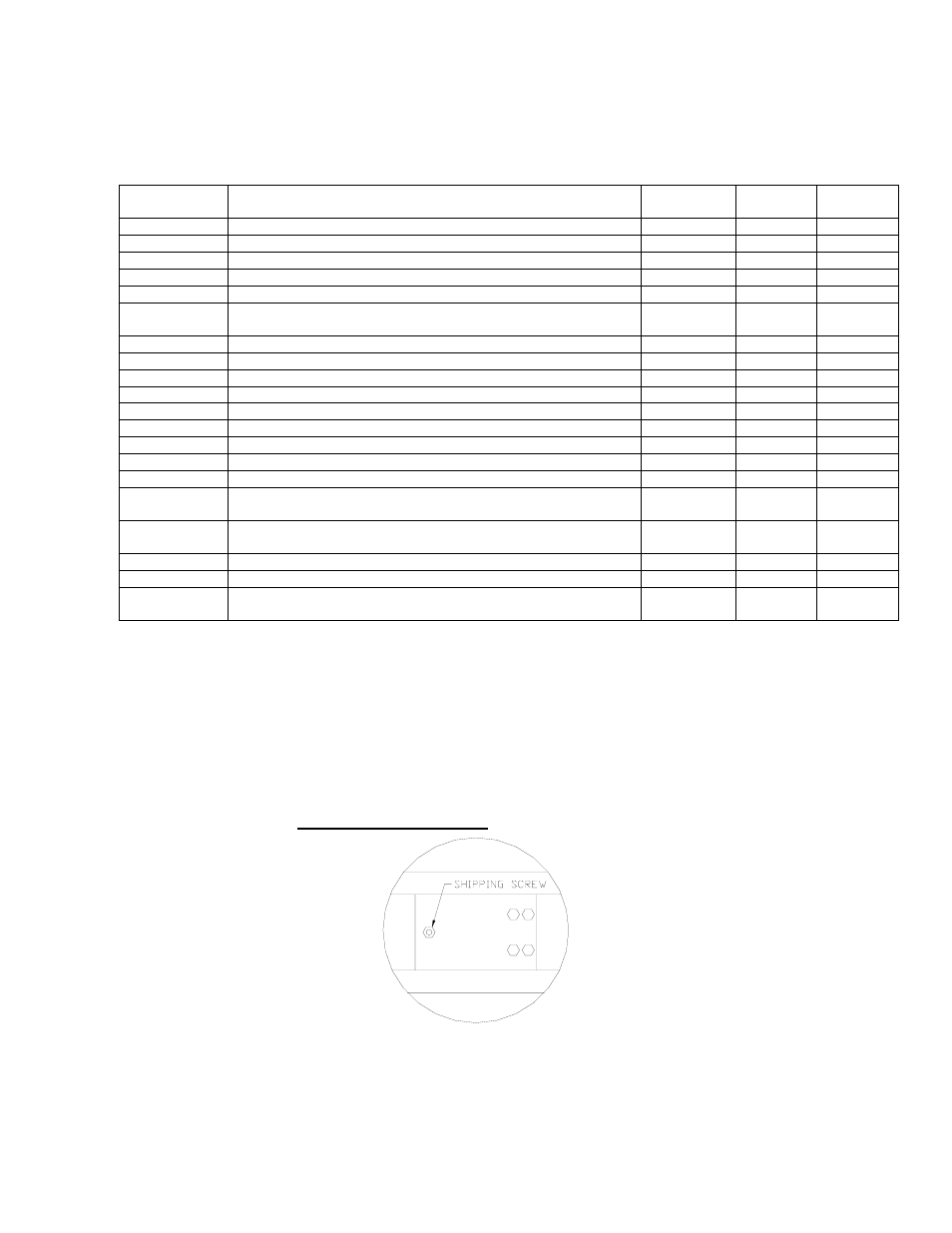

Fig. 2-1: Bottom of Scale (Shipping Screw)
