IMPORTANT BUILDING NOTES
● There are three types of screws used in this kit:

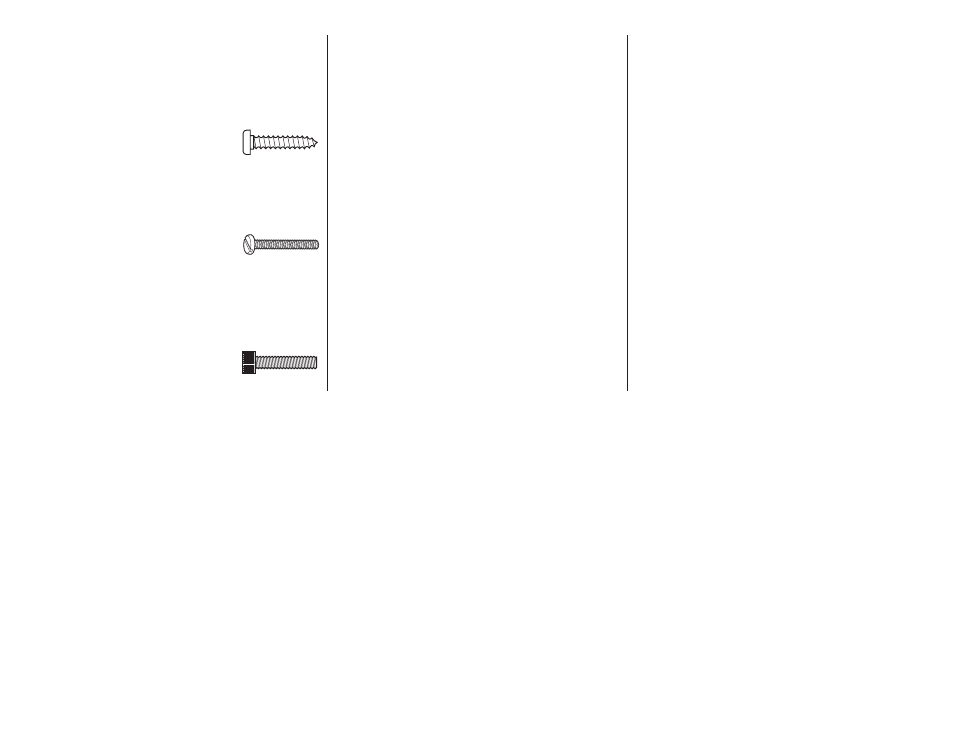

Sheet Metal Screws are designated by a number
and a length. For example #6

3/4" [19mm].
This is a number six
screw that is 3/4"
[19mm] long.
Machine Screws are designated by a number,
threads per inch, and a length. For example
4-40

3/4" [19mm].
This is a number four
screw that is 3/4"
[19mm] long with forty
threads per inch.
Socket Head Cap Screws (SHCS) are designated
by a number, threads per inch, and a length. For
example 4-40

3/4" [19mm].
This is a 4-40 SHCS
that is 3/4" [19mm]
long with forty
threads per inch.
● When you see the term test fi t in the instructions,
it means that you should fi rst position the part on
the assembly without using any glue, then slightly
modify or custom fi t the part as necessary for the
best fi t.
● Whenever the term glue is written you should rely
upon your experience to decide what type of glue to
use. When a specifi c type of adhesive works best for
that step, the instructions will make a recommendation.
● Whenever just epoxy is specifi ed you may use
either 30-minute (or 45-minute) epoxy or 6-minute
epoxy. When 30-minute epoxy is specifi ed it is
highly recommended that you use only 30-minute
(or 45-minute) epoxy, because you will need the
working time and/or the additional strength.
● Photos and sketches are placed before the step
they refer to. Frequently you can study photos in
following steps to get another view of the same parts.
● The Giant Scale Zero is factory-covered with Top
Flite MonoKote fi lm. Should repairs ever be required,
MonoKote can be patched with additional MonoKote
purchased separately. MonoKote is packaged in six-
foot rolls, but some hobby shops also sell it by the
foot. If only a small piece of MonoKote is needed
for a minor patch, perhaps a fellow modeler would
give you some. MonoKote is applied with a model
airplane covering iron, but in an emergency a regular
iron could be used. A roll of MonoKote includes full
instructions for application. Following are the colors
used on this model and order numbers for six foot rolls.
Flat Olive Drab (TOPQ0510)
Flat Black (TOPQ0508)
Flat Dove Gray (TOPQ0511)
● The stabilizer and wing incidences and engine
thrust angles have been factory-built into this model.
However, some technically-minded modelers may
wish to check these measurements anyway. To view
this information visit the web site at www.top-fl ite.com
and click on “Technical Data.” Due to manufacturing
tolerances which will have little or no effect on the way
your model will fl y, please expect slight deviations
between your model and the published values.
KIT INSPECTION
Before starting to build, take an inventory of this kit to
make sure it is complete, and inspect the parts to make
sure they are of acceptable quality. If any parts are
missing or are not of acceptable quality, or if you need
assistance with assembly, contact Product Support.
When reporting defective or missing parts, use the part
names exactly as they are written in the Kit Contents list.
Top Flite Product Support
3002 N Apollo Drive, Suite 1
Champaign, IL 61822
Ph: (217) 398-8970, ext. 5 Fax: (217) 398-7721
E-mail: productsupport@top-fl ite.com
ORDERING REPLACEMENT PARTS
Replacement parts for the Top Flite Giant Scale Zero
ARF are available using the order numbers in the
Replacement Parts List that follows. The fastest, most
economical service can be provided by your hobby
dealer or mail-order company.
To locate a hobby dealer, visit the Top Flite web
site at www.top-fl ite.com. Select “Where to Buy” in
the menu across the top of the page and follow the
instructions provided to locate a U.S., Canadian or
International dealer.
Parts may also be ordered directly from Hobby Services
by calling (217) 398-0007, or via facsimile at (217) 398-
7721, but full retail prices and shipping and handling
charges will apply. Illinois and Nevada residents will also
be charged sales tax. If ordering via fax, include a Visa
®
or MasterCard ® number and expiration date for payment.
Mail parts orders Hobby Services
and payments by 3002 N Apollo Drive, Suite 1
personal check to: Champaign IL 61822
Be certain to specify the order number exactly as listed
in the Replacement Parts List. Payment by credit card
or personal check only; no C.O.D.
If additional assistance is required for any reason
contact Product Support:
by e-mail at or by telephone at
productsupport@top-fl ite.com (217) 398-8970
REPLACEMENT PARTS LIST
TOPA1940 Fuse Kit
TOPA1941 Wing Kit
TOPA1942 Stab Set
TOPA1943 Rudder Set
TOPA1944 Canopy
TOPA1945 Cockpit
Set
TOPA1946 Cowl Set
TOPA1947 Dummy
Engine
TOPA1950 Antenna
TOPA1951 Landing Gear
Doors
TOPA1952 Door Brackets
TOPA1953 2-Blade
Spinner
TOPA1954 3-Blade
Spinner
TOPA1955 Decal Set
TOPA1956 Drop Tank Set
