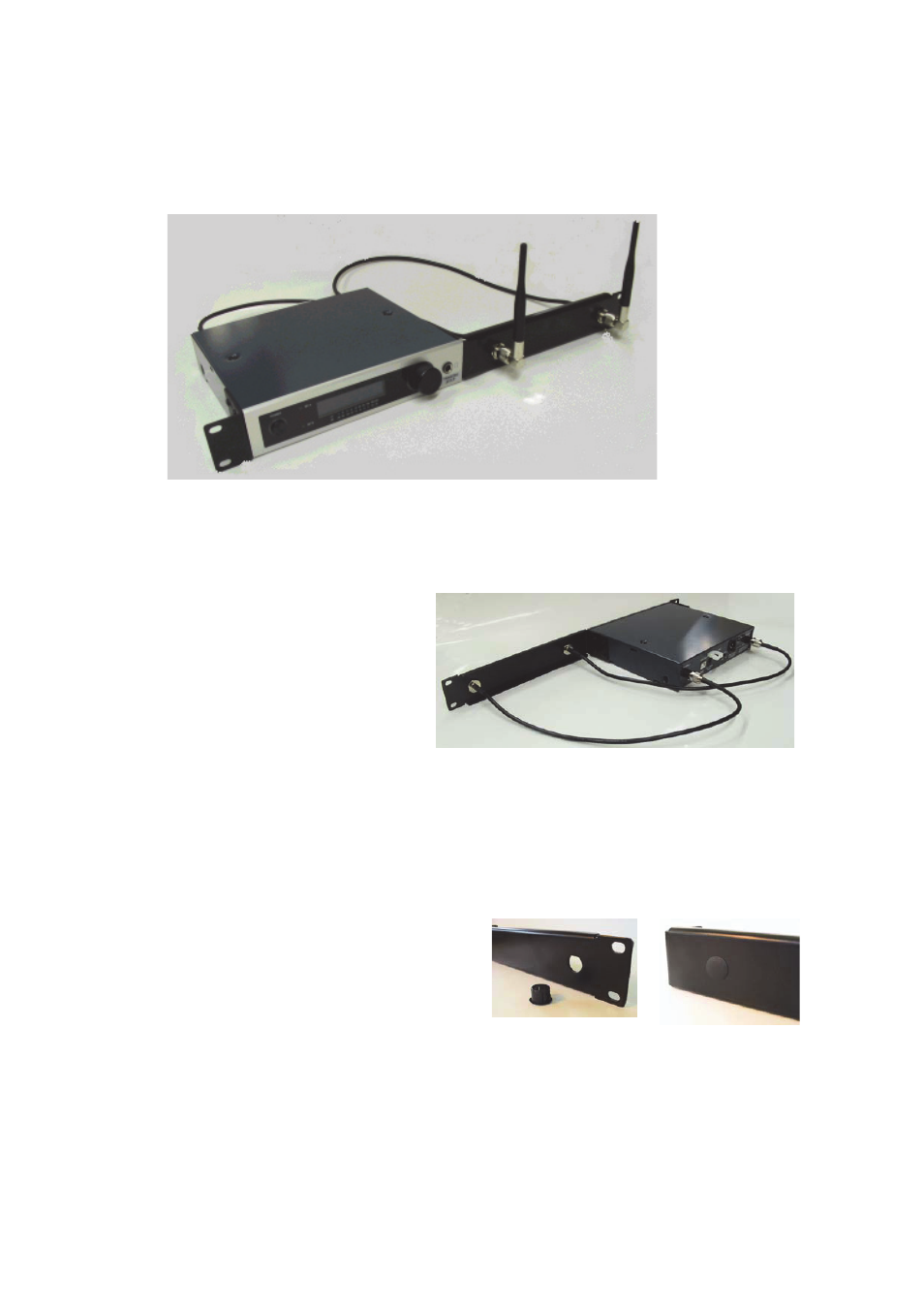

19” Rack 1 x S5 Series Receiver with Front Mount Antennae
The rack mounting kit is supplied as standard with S5.5 systems, or is
available as an accessory for S5.3 systems.
1. Unscrew 3 x lid retaining screws (M3x6) from the front left side of the
chassis (viewed from the front) and fit the small angled rack bracket, using
the supplied screws. There are 3 of these supplied with each receiver.
2. Unscrew 3 x lid retaining
screws (M3x6) from the front
right side of the chassis and fit
the supplied long angled
bracket using the screws
supplied.
3. Fit the 2 supplied antenna
extension cables into the front panel long bracket and tighten their BNC
nuts. Screw the BNC plugs of each into the antenna sockets on the rear of
the receiver. Should front mount antennae not be required, fit the 2 plastic
blanking plugs supplied into the spare holes.
