Page 15 – S5 Wireless Microphone Installation Guide Rev 1.5

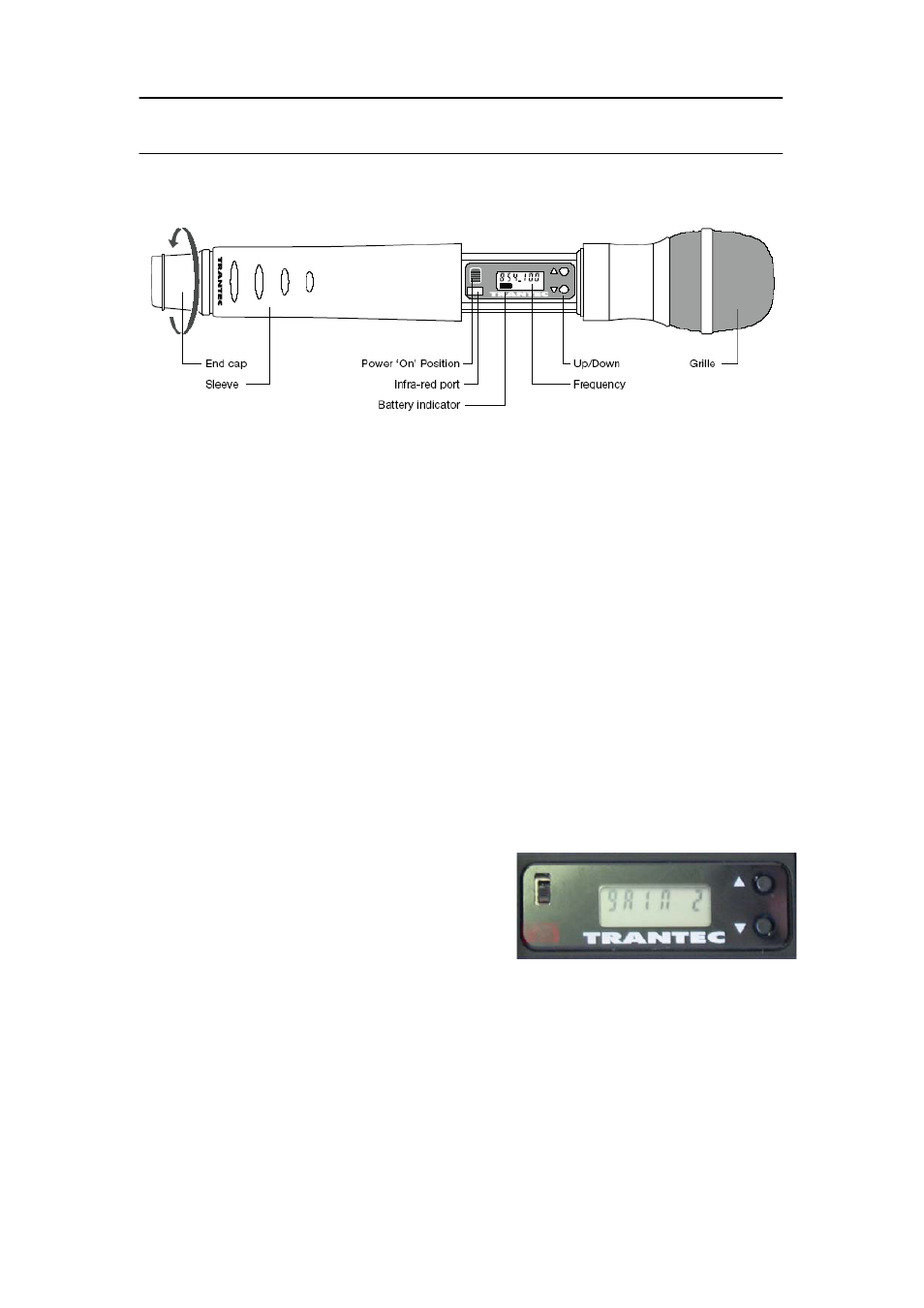

Handheld Transmitter Set-Up
1. Opening The Microphone
Undo the handheld sleeve by unscrewing the end cap at the base anti-
clockwise and then gently sliding the sleeve down to expose the LCD and
Battery compartment.
2. Battery Fitting
Place an Alkaline “AA” cell into the battery compartment noting the correct
polarity as shown on the label in the compartment.
3. Switch On
Slide the On/Off switch to the “On” position and observe the display is on and
the Power On LED located in the end cap is illuminated.
4. Check For Received Signal
Check that the display indicates the same channel as the receiver. The
receiver should now show a received signal on its RF bar graphs and after 20
seconds the transmitter battery status.
5. Gain Adjustment
Turn on the transmitter and wait for the
flashing “decimal point” on the LCD to stop
flashing. Press the “Up” or “Down” buttons
to increase or decrease the head
sensitivity. The display will show 0, 1 or 2,
with 0 gain being for max SPL.
6. Frequency Adjustment
Turn on the transmitter and adjust the frequency whilst the “decimal point” is
flashing (approx 6 secs) via the “Up” or “Down” buttons. When the correct
frequency is selected, turn the transmitter off then on again to activate the
newly selected channel.
