7

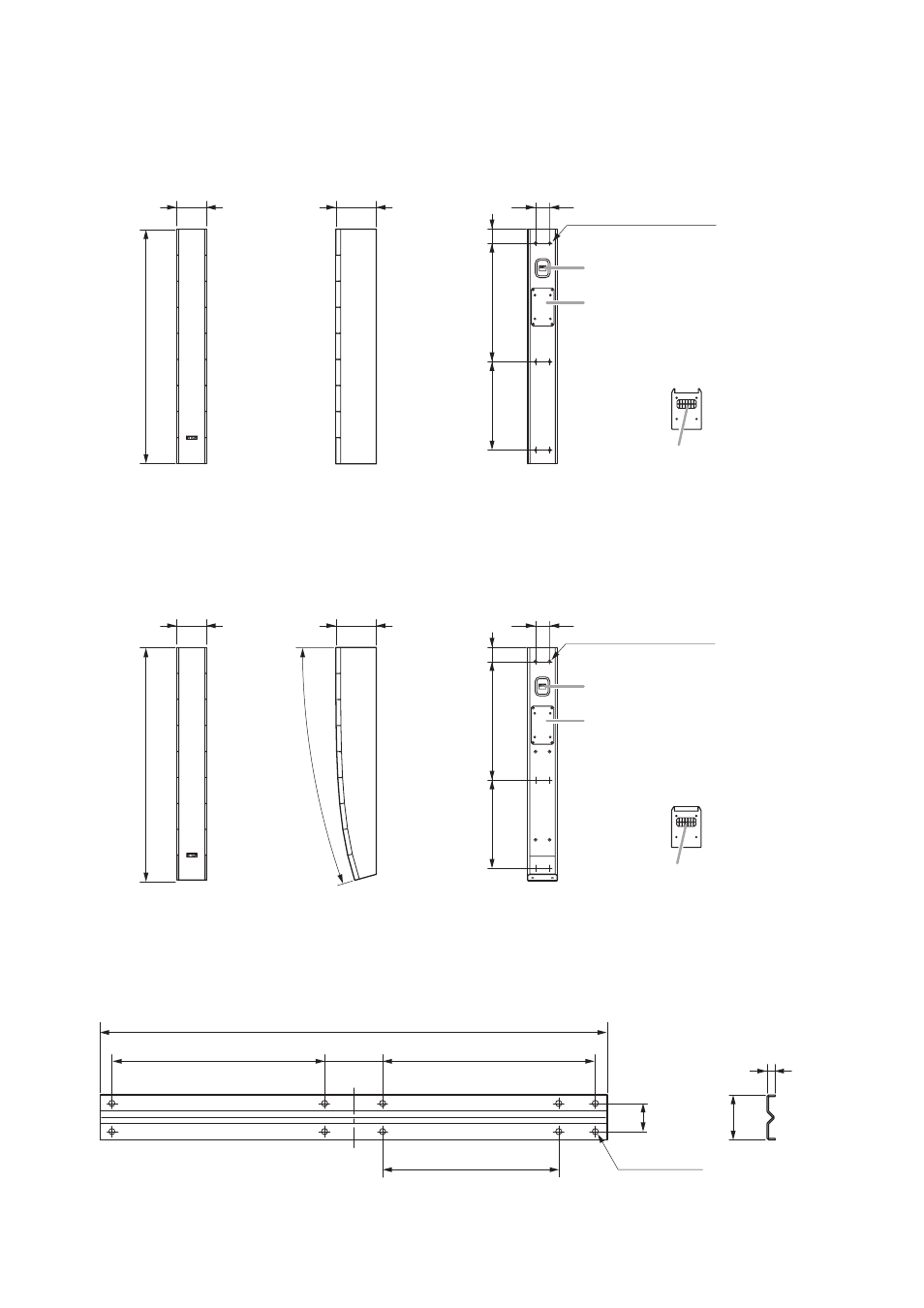

5. DIMENSIONAL DIAGRAMS
5.2. Line Array Speaker SR-H2S (Short and Curved type)
5.1. Line Array Speaker SR-H2L (Short and Linear type)
5.3. Extension Plate SR-EP3 (optional)
[Front] [Rear] [Side] Unit: mm (inches)
84 (3.31) 115 (4.53)
668.4 (26.31)
Input terminal
Blank panel
(The optional MT-S0301 Matching
Transformer can be installed inside.)
[Top]
336
(13.23)
250
(9.84)
41.2
(1.62)
Bass reflex duct
(located on the top surface only)
40 (1.57)
Mounting screw (M5)
20°
[Front]
84 (3.31)
663.4 (26.12)
[Side]
115 (4.53)
[Rear] Unit: mm (inches)
Input terminal
Blank panel
(The optional MT-S0301 Matching
Transformer can be installed inside.)
[Top]
256
(10.08)
250
(9.84)
41.2
(1.62)
Bass reflex duct
(located on the top surface only)
40 (1.57)
Mounting screw (M5)
Unit: mm (inches)
64
(2.52)
40
(1.57)
82.4
(3.24)
720 (28.35)
10-ш5.5
(10-ш0.22)
11.5 (0.45)
302 (12.6) * 1 302 (12.6) * 1
250 (9.84) * 2
* 1 Use when mounting the SR-H3L.
* 2 Use when mounting the SR-H2L.
