10. INSTALLATION EXAMPLES USING THE OPTIONAL BRACKETS
The optional mounting brackets are intended exclusively for the line array speakers and permit installations
suited to the installation location or application.
For mounting method, please refer to the installation manual enclosed with each bracket.

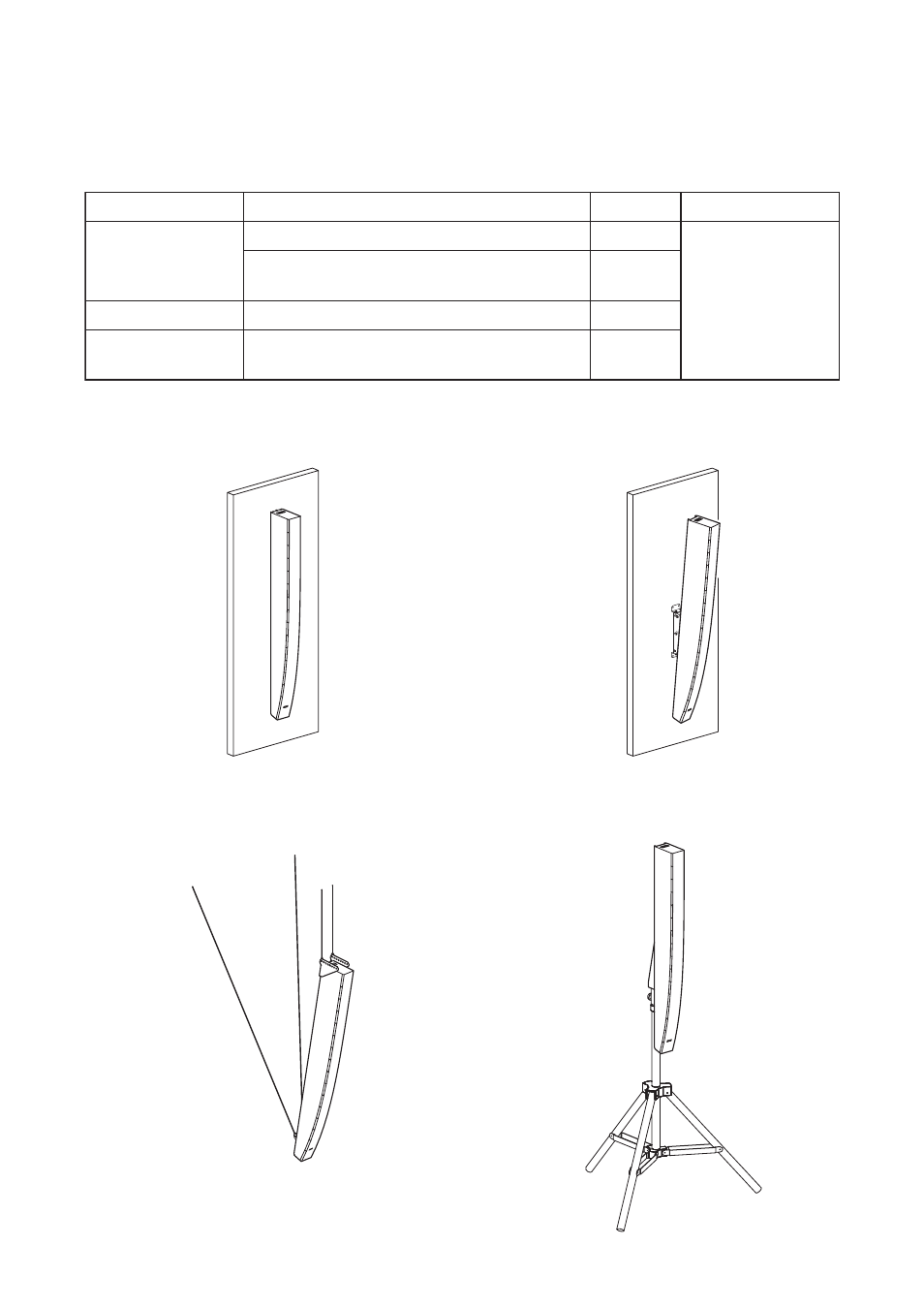

• Wall mounting (using the SR-WB3) • Wall mounting (using the SR-TB3)
• Ceiling-suspended mounting (using the SR-FB3) • Stand mounting (using the SR-SA3)
Installation Location
Wall
Ceiling
Speaker stand
(optional)
Applicable Speaker Application Bracket
SR-H2L
SR-H2S
SR-H3L
SR-H3S
Flat against the wall
When adjusting angle up to 15° horizontal
and 5° vertical
When suspending from a ceiling
When mounting on the ST-33B Speaker Stand
SR-WB3
SR-TB3
SR-FB3
SR-SA3
