10

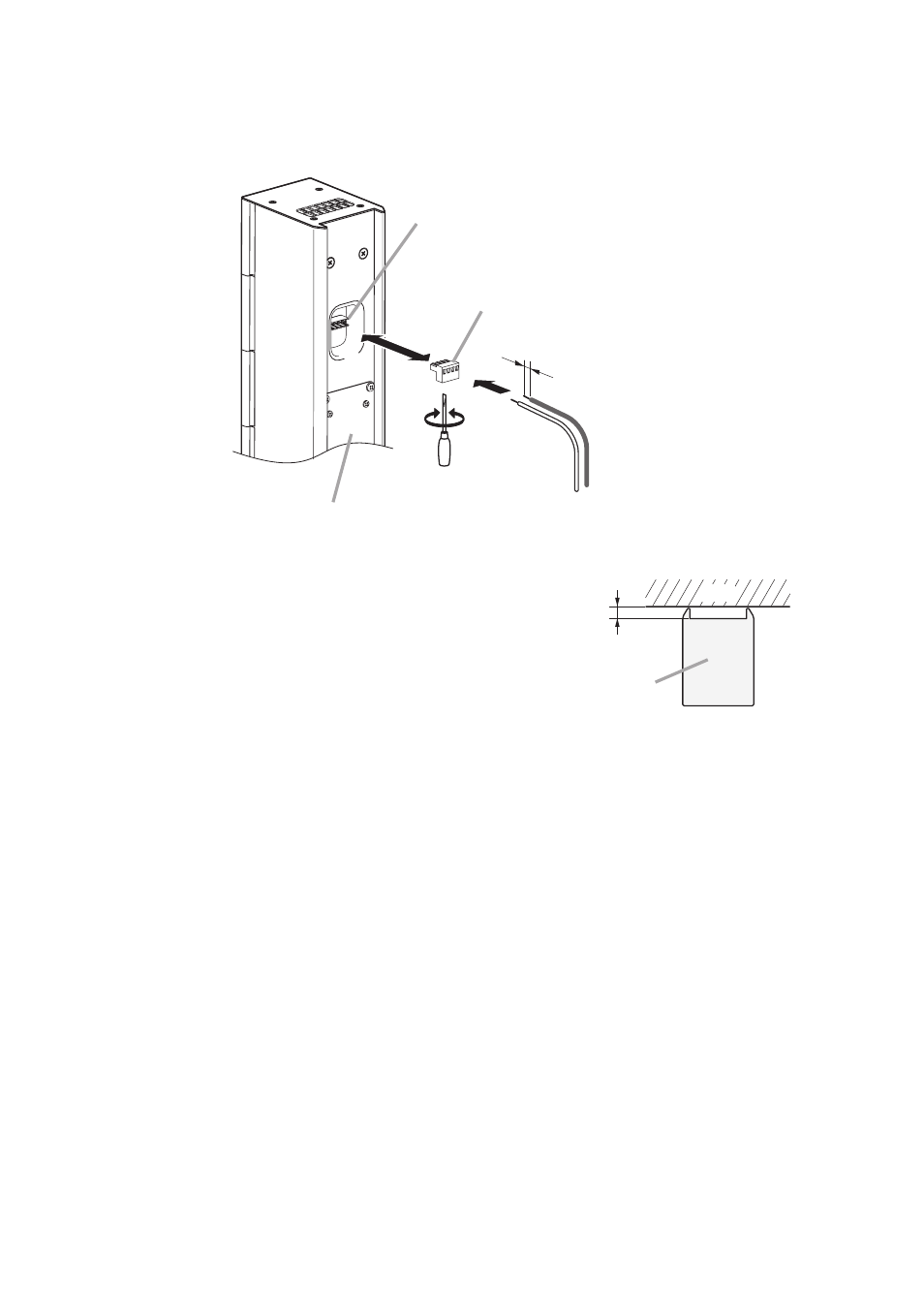

7. INPUT TERMINAL CONNECTION
Removable input connector offers easier and more efficient wiring.
5 mm (0.2")
Speaker body (rear)
Removable terminal plug
Socket
Speaker cable
1
3
2
12 mm
(0.47")
Speaker
Wall
[Viewed from the upper side]
Tip
The 12 mm (0.47")-high ridges in the back of the speaker
provide ample space for speaker wiring.
Even when the speaker is mounted flat against a wall, the
speaker cable outlet hole in the wall does not need to be
aligned with the input terminal position.
Step 1. Remove the removable terminal plug from the speaker’s socket.
Step 2. Connect the speaker cable to the removable terminal plug.
Notes
• Applicable cable size is as follows.
Solid cables: AWG24 – AWG14
Stranded cables: AWG24 – AWG14
• Strip the insulation back about 5mm (0.2") from the cable end.
Tip
If no parallel connection is made, be sure to tighten unused terminal screws to prevent speaker
resonance.
Step 3. Insert the removable terminal plug into the speaker’s socket.
