4. ABOUT COVERAGE AREA
The line array speaker radiates a sound only within a limited range as shown below.
Since sound is extremely reduced in areas that are outside the range, take care that the listening area is
sufficiently covered when installing the speaker.

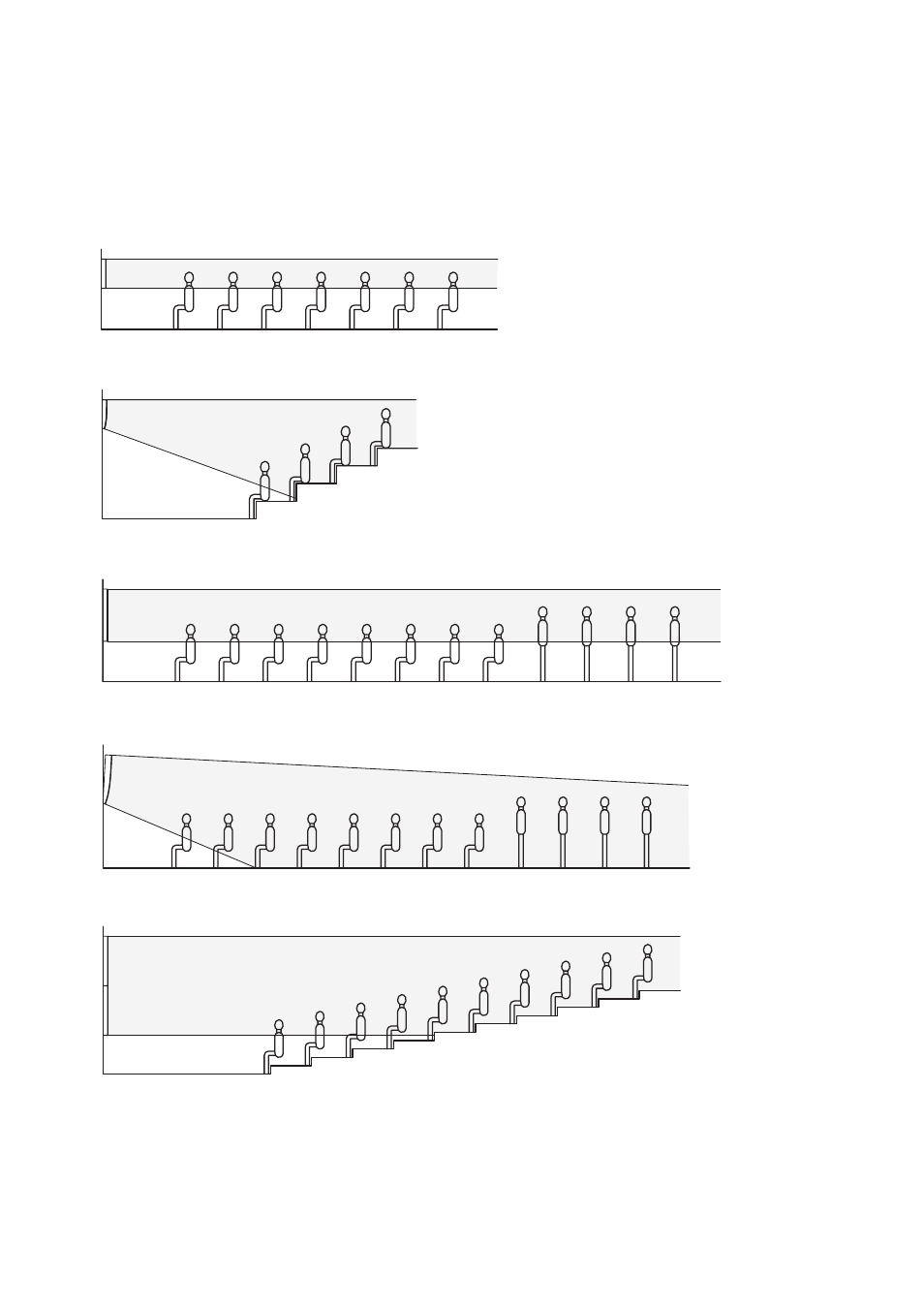

Installation examples
Tips
• Installing the line array speaker in a lower position with a narrow downward angle allows a wider coverage
area to be secured from front to rear.
• Installing the line array speaker in a higher position with a wider downward angle could cause the forward
and rear audience areas to be excluded from the coverage area.
[SR-H3L]
[SR-H3S]
[SR-H2L]
[SR-H2S]
[SR-H3L x 2]
