Tii HNP6L-ET User Manual
Page 13
P/N: 92227001
Rev A 3/07
13
2.3 HNP6L-ET
Connections & Indicator Lights
The HomePlug Ethernet Adaptor has two lights indicator (LEDs) and an Ethernet port.
See Fig1-1below.

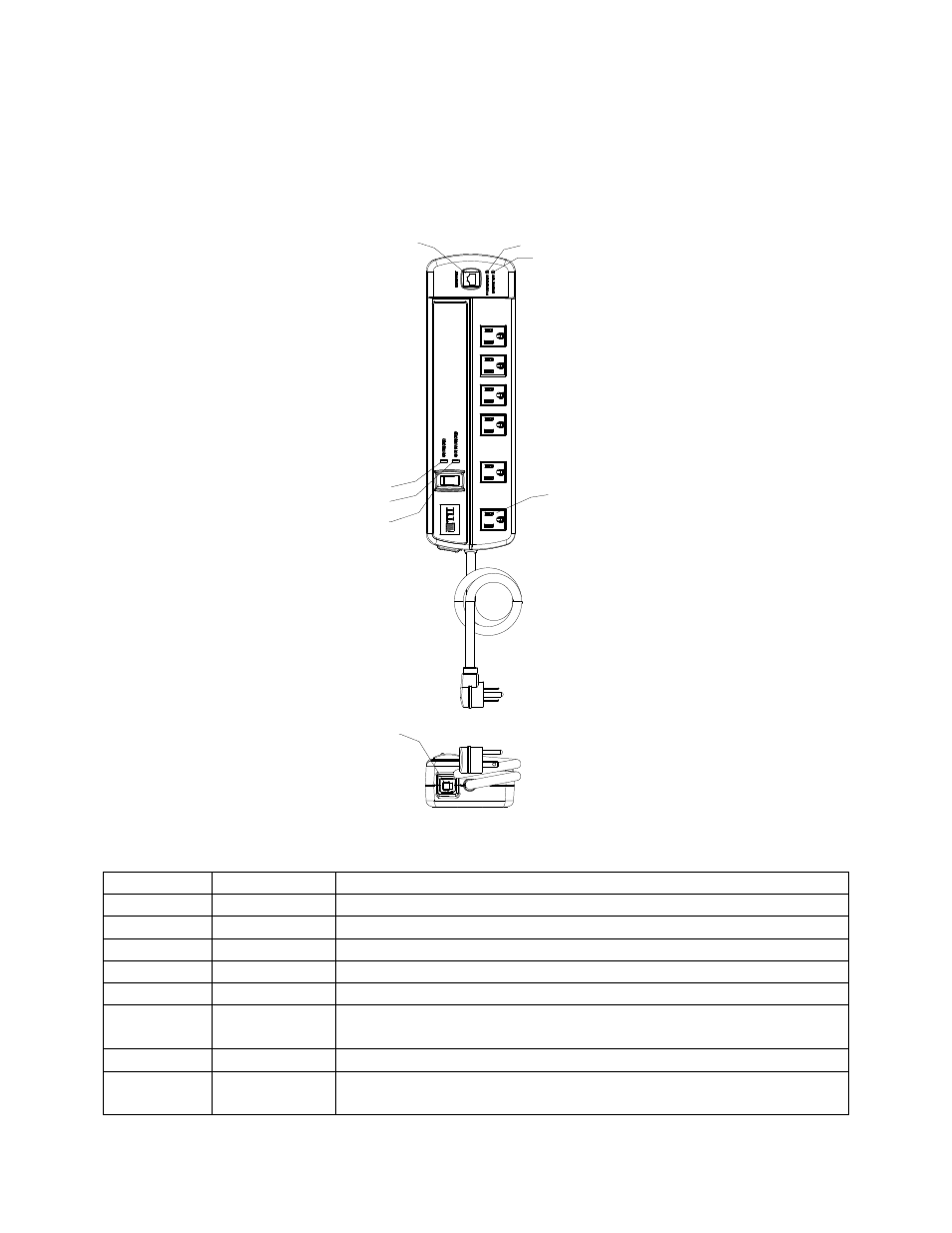

Figure 1.1 HNP6L-ET
ITEM NO.
FEATURE
DESCRIPTION
1
Reset Fuse
Self restoring line surge suppresser fuse.
2
Power Switch When plugged in an AC receptacle indicator lamp ON/OFF.
3
Protected
Green LED ON indicates protection circuit is operational.
4
Not Protected Red LED ON indicates protection circuit not operational.
5
Ethernet
RJ-45 for Ethernet cable.
6
Power Line
Link
LED when ON, indicates that HomePlug circuit is powered.
7
Ethernet Link LED when ON, indicates Ethernet link established.
8
Filtered
Receptacle
6 EMI filtered receptacles for preventing unwanted electrical.
noise from been introduced by peripheral devices.
