2
www.teejet.com
Assisted/Auto Steering
Keyboard Entry Screen
Press the KEYPAD icon to use a numeric keypad to enter a value.
Press
Clear
to erase the existing value. Press the ACCEPT icon to
save the settings or the CANCEL icon to leave the keypad without
saving.

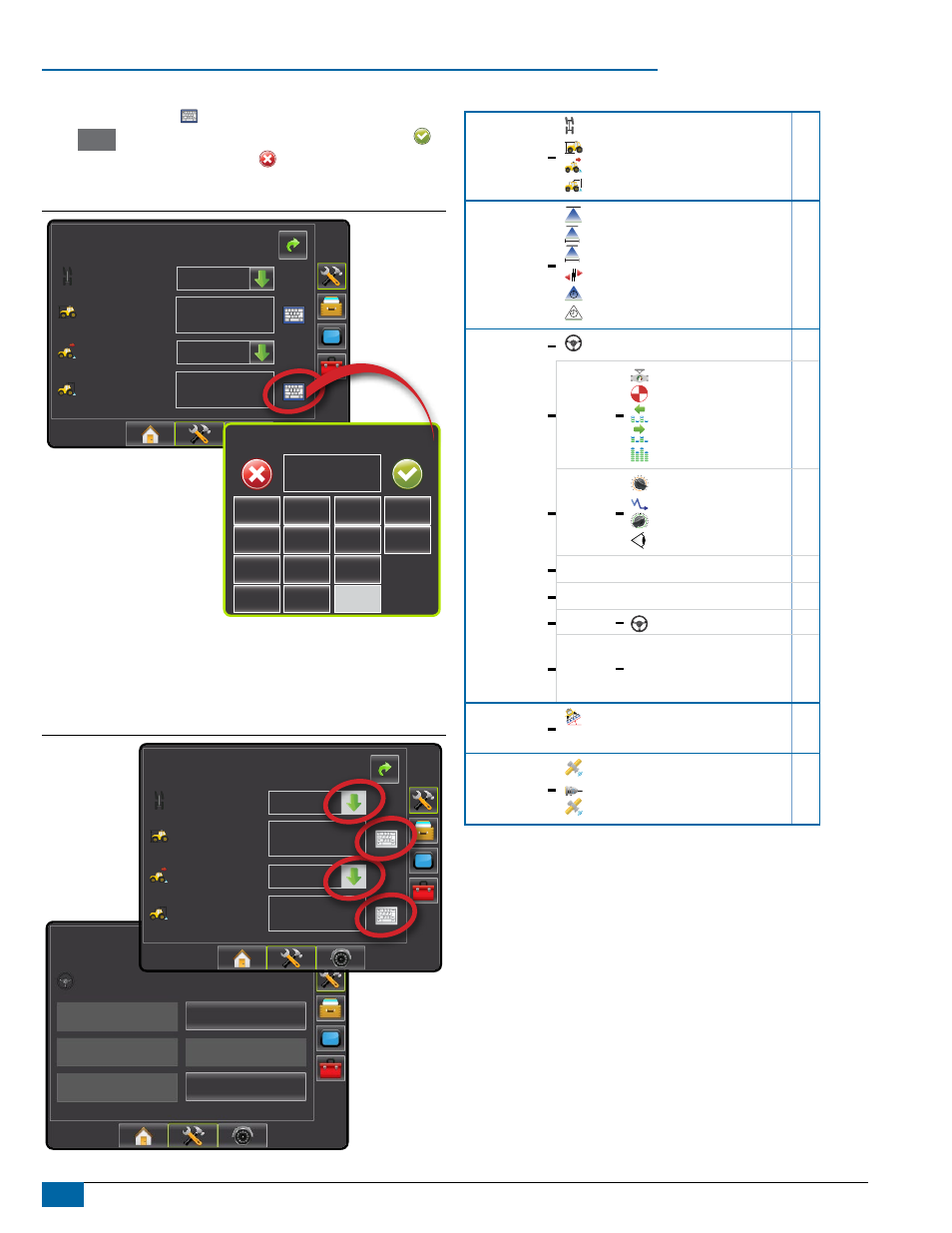

Figure 3: Example of Keyboard
Config-> Vehicle
12.50 ft
0.00 ft
Front Wheel
Backward
Vehicle Type
Ant Height
Dir to Boom
Dist to Boom
Dist to Boom (ft)
1 2 3
0.00
Clear
4 5 6 <--
7 8 9
0 . +/-
Unavailable Options When Job is Active
When a job is active some setup options are unavailable. See the Unit
Setup Mode Availability Chart for indication of which options are not
accessible.
Figure 4: Example of Unavailable Options
Config-> AutoSteer
Enabled
Valve Setup Steering Settings
Valve Test Valve Diagnostics
Angle Sensor Options
On
Config-> Vehicle
12.50 ft
0.00 ft
Front Wheel
Backward
Vehicle Type
Ant Height
Dir to Boom
Dist to Boom
Unit Setup Mode Availability
Vehicle –
Vehicle Type
Antenna Height
Direction to Boom
Distance to Boom




Implement –
# Number of Sections
Guidance Width
Spray Width
Overlap
Delay On
Delay Off 





AutoSteer
– Enable 
– Valve
Setup
–
Valve Type
Frequency
Minimum Duty Cycle Left
Minimum Duty Cycle Right
Maximum Duty Cycle





– Steering
Settings –
Coarse Adjustment
Deadband
Fine Adjustment
Lookahead 



– Valve Test 
– Valve Diagnostics 
– Options – Steering Wheel Sensor 
–
Steering
Angle
Sensor
–
Enable
Calibrate Sensor
Offset Adjustment 


Tilt –
Enabled
Field Level


GPS –
GPS Type
GPS Port
GPS Status 


 Available during an active job
 Not Available during an active job
