Assisted/Auto Steering
Options: Steering Wheel Sensor
Steering wheel sensor selects whether the sensor used to automatically
disengage FieldPilot when the steering wheel is turned is magnetic or
pressure based. Check your specific configuration to determine if a
Steering Wheel Switch Kit or a Pressure Switch is being used.
The UniPilot is not affected by this setting.
1. Select
Options .
2. Press DOWN arrow to access the list of options.
3. Select:
►Magnetic
►Pressure

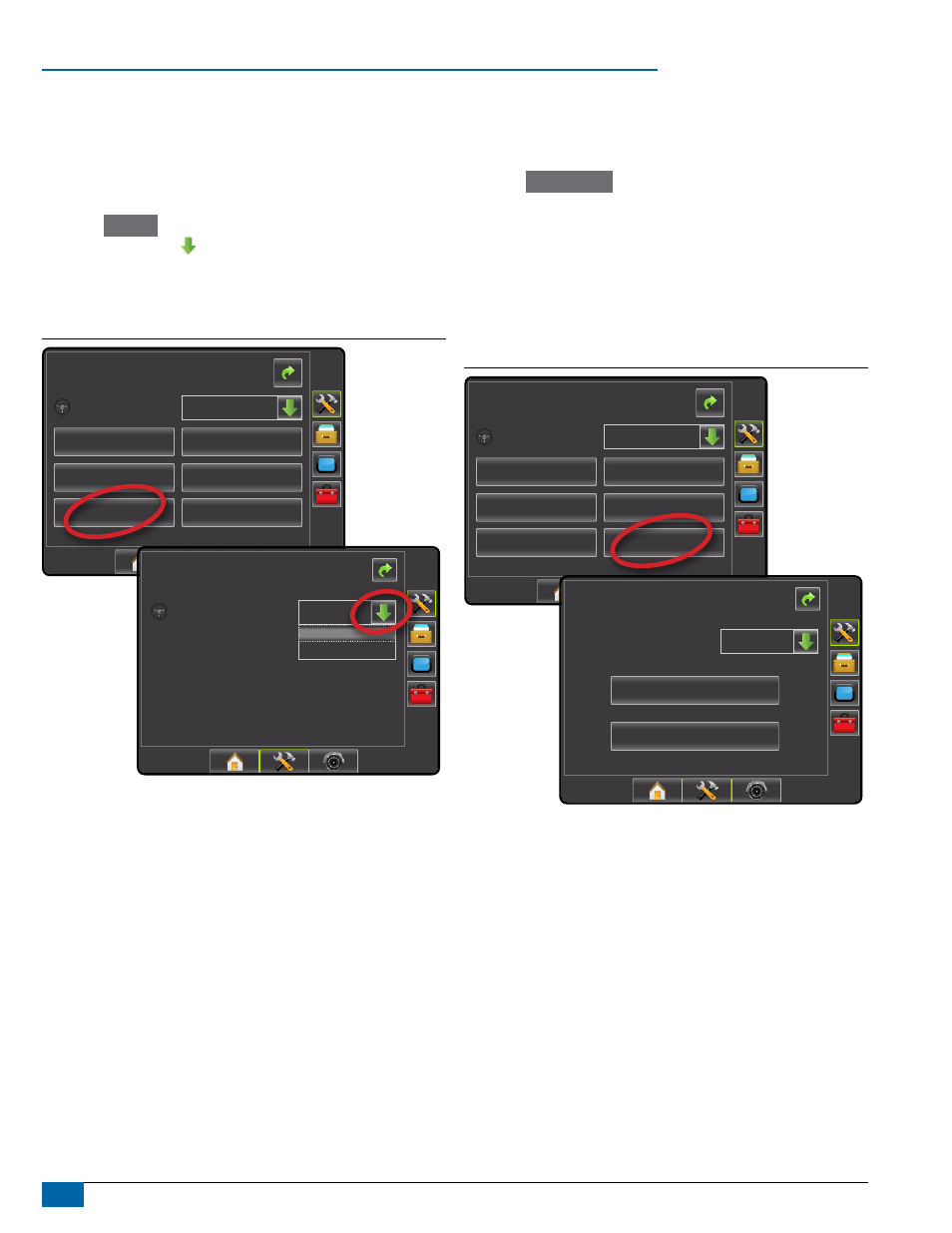

Figure 27: Options: Steering Wheel Sensor
Config-> AutoSteer
Enabled
Valve Setup Steering Settings
Valve Test Valve Diagnostics
Angle Sensor Options
On
Config-> AutoSteer->Options
Steering Wheel Sensor Magnetic
Magnetic
Pressure
Angle Sensor
Angle Sensor is used establish the Steering Angle Sensor (SAS) as the
primary feedback sensor for auto steering, calibrate the SAS and set
an offset adjustment.
1. Select
Angle Sensor
.
2. Select if the angle sensor is
►Enabled
►Disabled.
3. Select from:
►Calibrate Sensor – sets the turn rate when steering the vehicle
left and right.
►Offset Adjustment – adjusts the path of travel to the established
guideline.
Figure 28: Steering Angle Sensor
Config-> AutoSteer
Enabled
Valve Setup Steering Settings
Valve Test Valve Diagnostics
Angle Sensor Options
On
Config-> AutoSteer->Angle Sensor
Angle Sensor
Calibrate Sensor
Offset Adjustment
Enabled
