Assisted/Auto Steering
Offset Adjustment
Offset Adjustment adjusts the path of travel to the established
guideline.
NOTE: A GPS signal is required for this test.
RECOMMENDATION: Have a large area of clear space available
to perform a test cycle. Typical operating speed must be
maintained for at least 30 seconds.
1. Establish and/or activate a Straight AB guideline.
2. Select
Offset Adjustment
.
3. Engage assisted/auto steering guidance on established straight AB
guideline.
4. While the vehicle is moving in a forward straight line motion at
typlical operating speed on the established guideline, press
Start
.
5. Allow the vehicle to drive using the Assisted/Auto Steering for
30 seconds
6. “Adjust Successful” will appear when adjustment has been
completed.
Press
Stop
to cancel the adjustment.

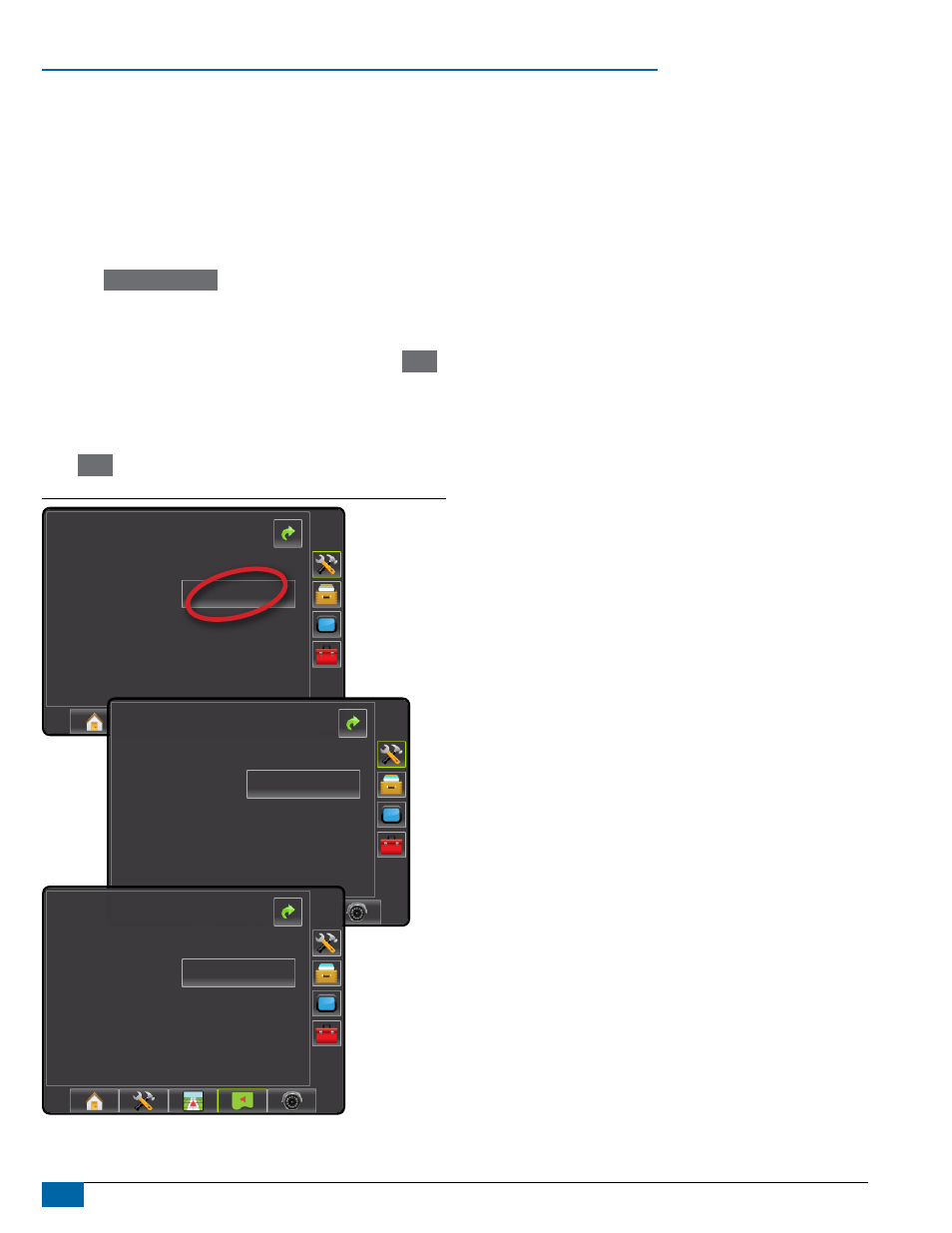

Figure 31: Offset Adjustment
Config-> AutoSteer->Offset Adjust
Offset Adjust Start
Config-> AutoSteer->Offset Adjust
Offset Adjust
Adjust In Progress
Time Remaining: 25 s
Stop
Config-> AutoSteer->Offset Adjust
Offset Adjust
Adjust Successful
Start
