CenterLine Setup
CenterLine
Software Version 1.10
Guidance Setup
Guidance setup allows the setup of several parameters that pertain to guidance functionality. Cur-
rently there are four guidance settings (see Figure 11).
To access Guidance setup from the Setup menu, scroll until the text window displays ANCE>, and press Enter. Menu item should be displayed in the text window. Use Up or
Down to scroll through the list of Guidance setup menu items.
The Guidance menu item is a sub-menu of Guidance. The and
menu items are listed under this Antenna sub-menu. The offset distance and direc-
tion (See Figure 17) can be set from these menu items.

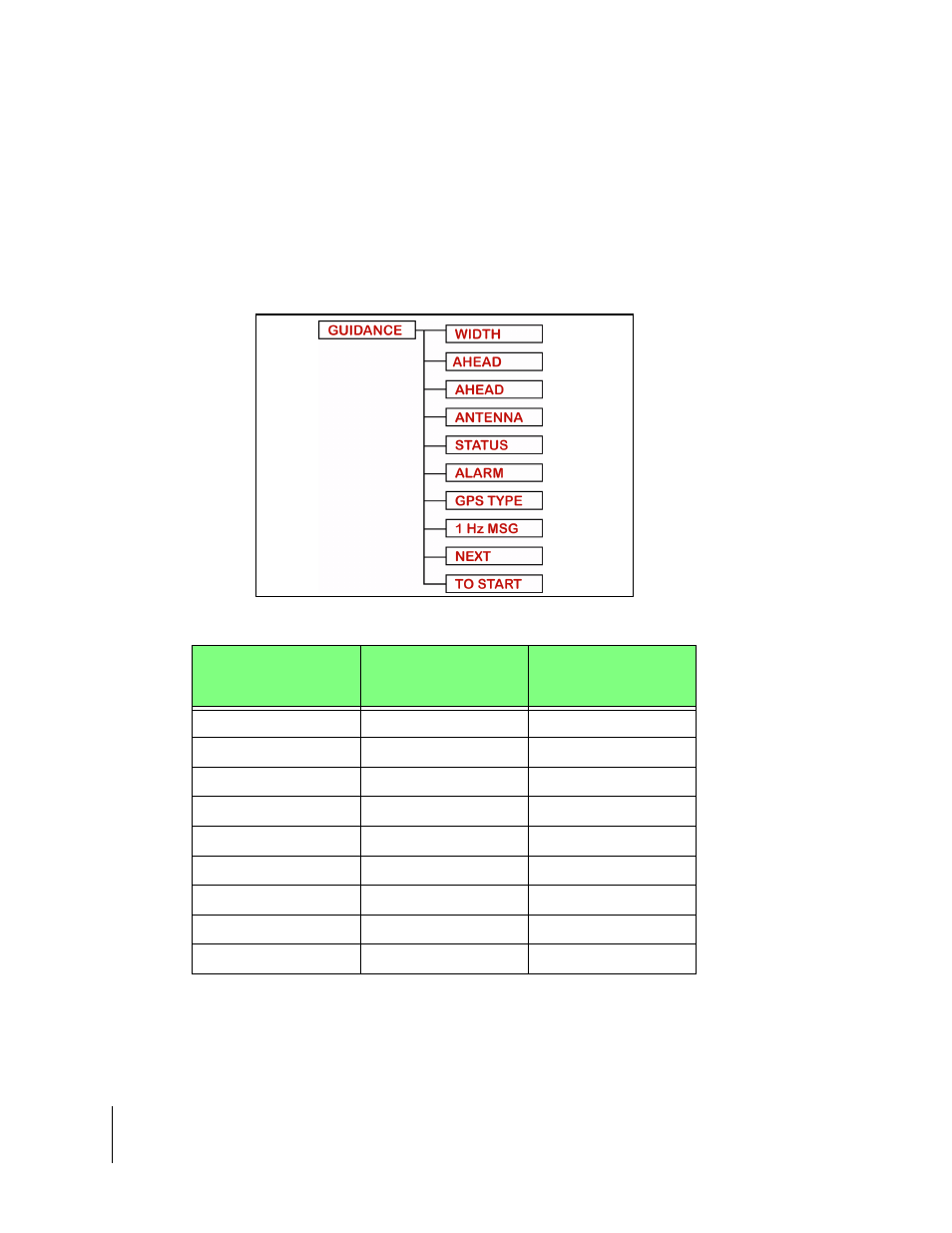

Figure 11: Guidance Setup Flow
Setting Name Default Value
Change at 1st
Time Start Up
Width 30.0 feet (10 meters) Required
Ahead 1.5 seconds Optional
Antenna -Direction None Recommended
Antenna - Distance 0.0 ft. Recommended
Antenna - Height 9.8 ft. Recommended
Status Detect Off Optional
Alarm Off Recommended
GPS Type DGPS Recommended
1Hz MSG YES Not Recommended
Table 1: Guidance Menu Item Default Settings
