LH 4000 O PERATORS MANUAL
LH A GRO 29

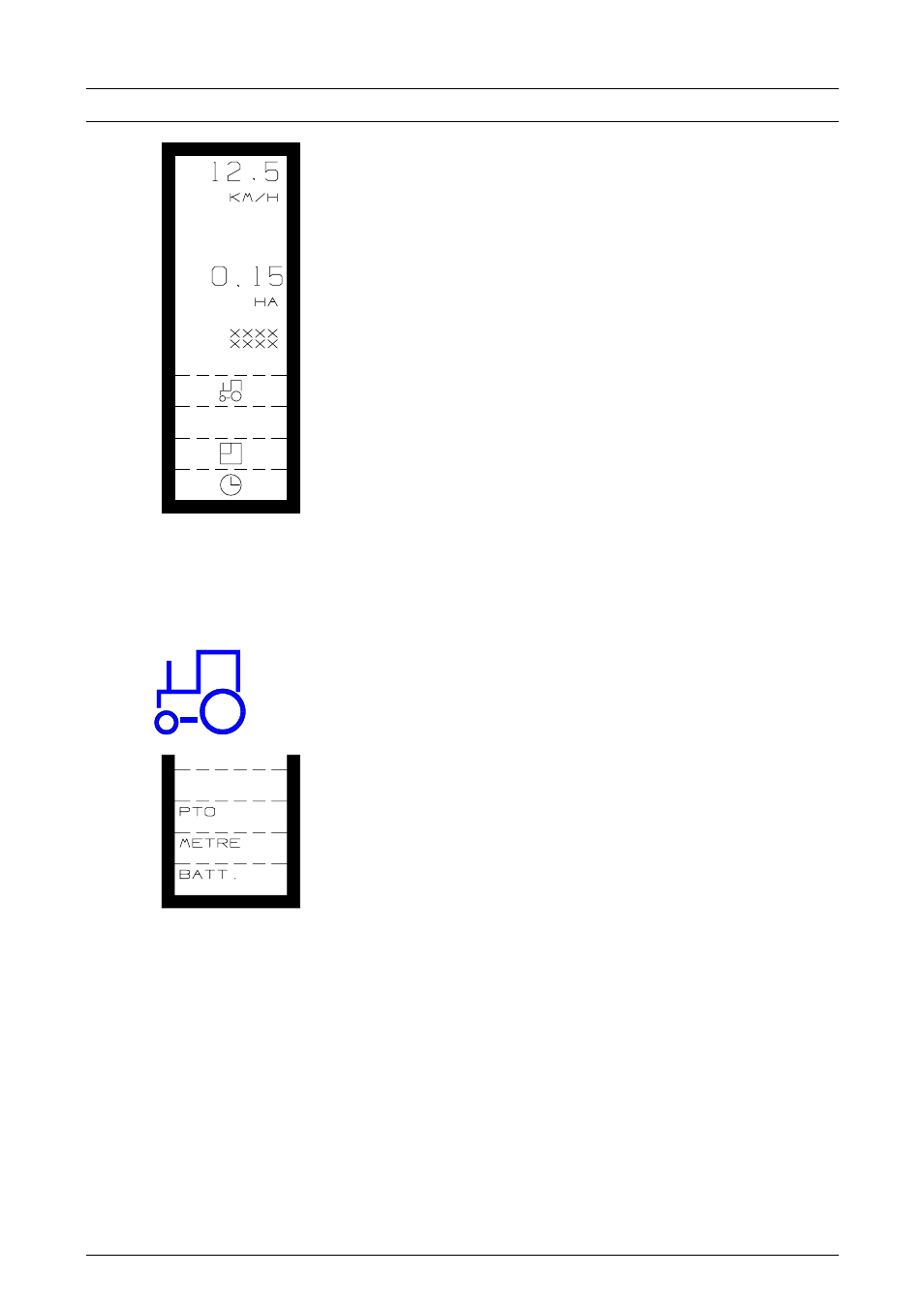

OTHER IMPLEMENT, OPERATION
SPEED:
The Top information is Speed. The speed is read as
Km/h to one tenth.
Speed is calculated with the selected sensor (Wheel
tractor-Wheel-implement).
AREA:
Area is recorded in Hectares. The readings up to
99.99 Ha are provided to one hundredth. Above this
to one tenth.
NOTE! The
DATA/DELETE menu provides the
Total Area-counter.
NOTE! Do not forget to reset your counters using
DATA/DELETE before you commencing
work!
SELECTABLE FUNCTIONS
TRACTOR FUNCTIONS
PTO: PTO revs. (requires sensor on the
shaft)
METRE: Driven distance in metres.
METRE START/
METRE STOP: Manual start/stop of distance
recorder
BATT: System voltage.
PTO:
The revs. of the shaft.(may be other than PTO)!
METRE: Driven distance in Metres. Is recorded through the speed sensor.
Can be activated manually, or in conjunction with the "override"
sensor. (Implement -Sensor). Select the mode in the ENCODE
menu.
or
METRE START/
METRE STOP: Manual Start/stop of the metre counter. These soft keys will only
appear if you have selected the manual mode-switch.
BATT.: The present voltage of your battery.
