LH 4000 O PERATORS MANUAL
12 LH A GRO

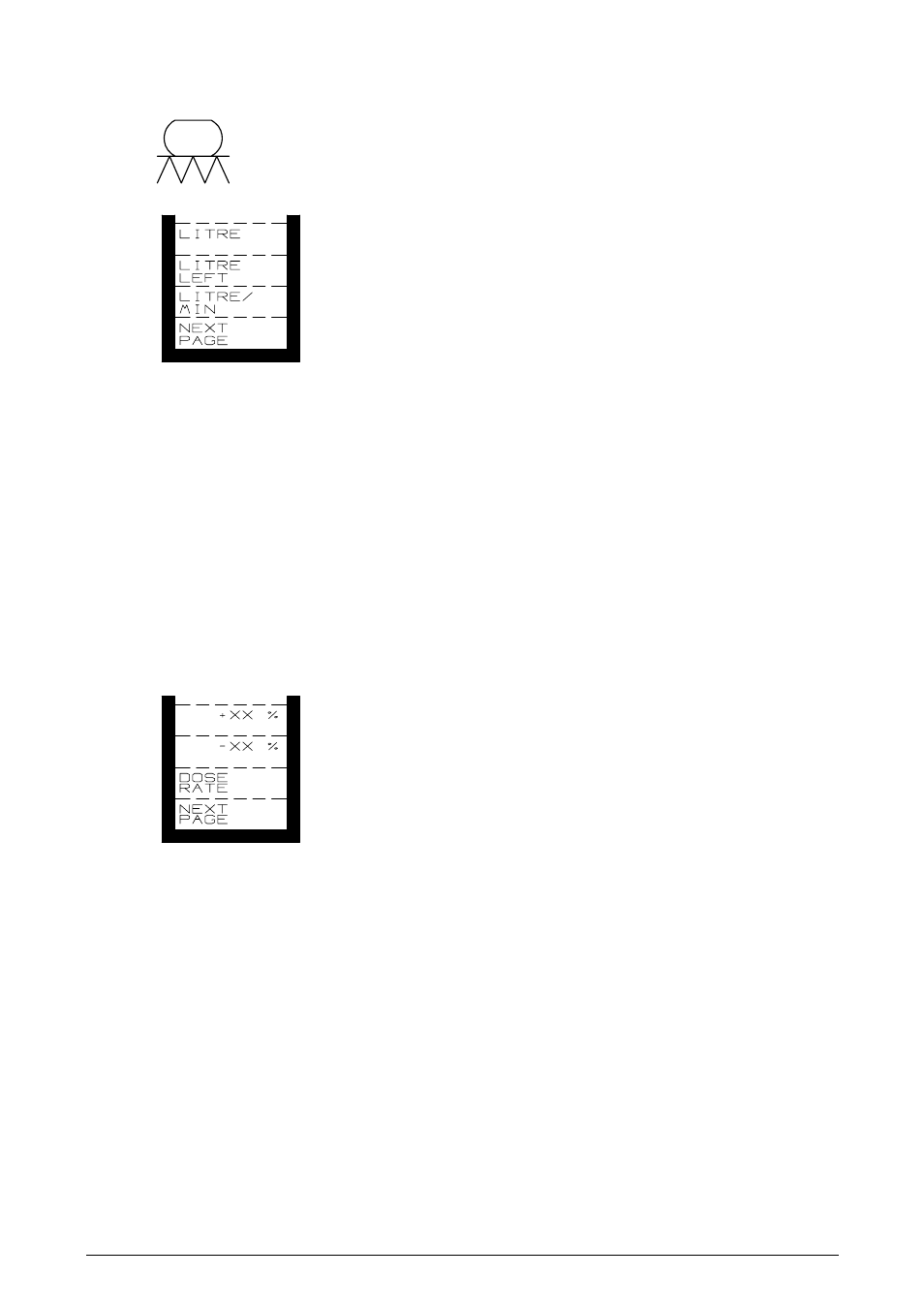

SPRAY FUNCTIONS
LITRE: Amount consumed from tank.
LITRE LEFT: Amount remaining in tank.
LITRE/MIN.: Litre consumption per minute.
LITRE:
The total amount consumed since counter was reset. This function
is a "trip-counter", which may be reset using the "DATA/DELETE"
function. The "grand total" counter is also available in this menu.
LITRE LEFT: The amount of liquid in tank. However, this feature requires
encoding the tank volume/amount filled, before starting. This is
done in encode “LITRE LEFT”. This value is automatically
entered is the optional tank fill feature is used.
LITRE/MIN.: The actual flow in Litres per minute through the flowmeter. Do not
regard this as the Pump-capacity.
Pressing the "NEXT PAGE" key displays the next functions.
+xx %: Increase of application rate.
-xx %:
Decrease of application rate.
DOSE-RATE/
NORMAL:
Encodement of application rate, OR
instant return to normal rate (+/- %
activation)
+ xx %:
Percentile increase of the application rate. You select the percent
figure you require, in encode "STEP%"
- xx %: Percent decrease of application rate. (similar figure will be entered
automatically, ref. the above).
NORMAL/
DOSAGE:
Multifunctional softkey.
It will read "DOSE-RATE" normally. Select, and you will have
instant access to enter or alter your desired application rate.
However, should you have activated either your "+" or "-" %-
keys, the softkey will read "NORMAL". Subsequently, pressing
this key will return your application rate to "normal" regardless
what over/under rate you are currently applying.
