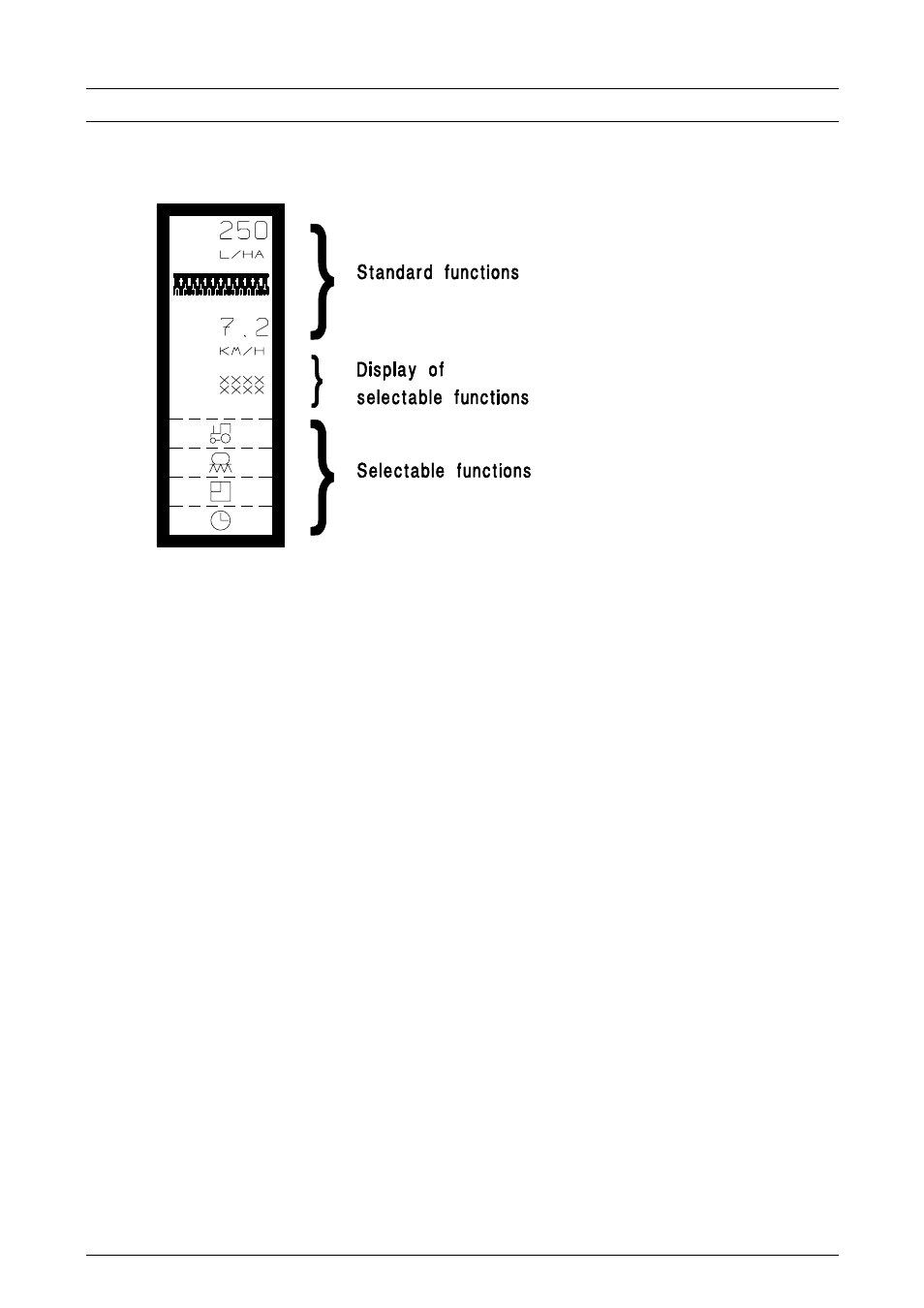

Two "Status screens" must be accepted. Press the "Return-key" until the following
screen is displayed
PRE-DEFINED FUNCTIONS
DOSAGE (APPLICATION)
The primary function under sprayer is dosage. The dosage (application rate) is
shown in Litres per Hectare, calculated as a result of the flow through the
flowmeter, the speed and the recorded area. Subsequently no reading will show if
the machine is stationary, or if there is no flow through the flowmeter.
Two arrows in the upper left corner of screen indicate the length and status of
control signals to the pressure regulator.
NOTE! The shown application rate (L/Ha) is dependent of a correct calibration of
wheel/ circumference/flow-figure/working width. (Details later in this
manual).
SPRAY-BOOM INDICATOR STATUS
The number and position of active/inactive boom-sections is shown on the screen.
SPEED
The forward speed is displayed in km/h. (One decimal).
NOTE!
Ensure you select the correct sensor. (Wheel tractor, Wheel sprayer)
Radar is not available!
