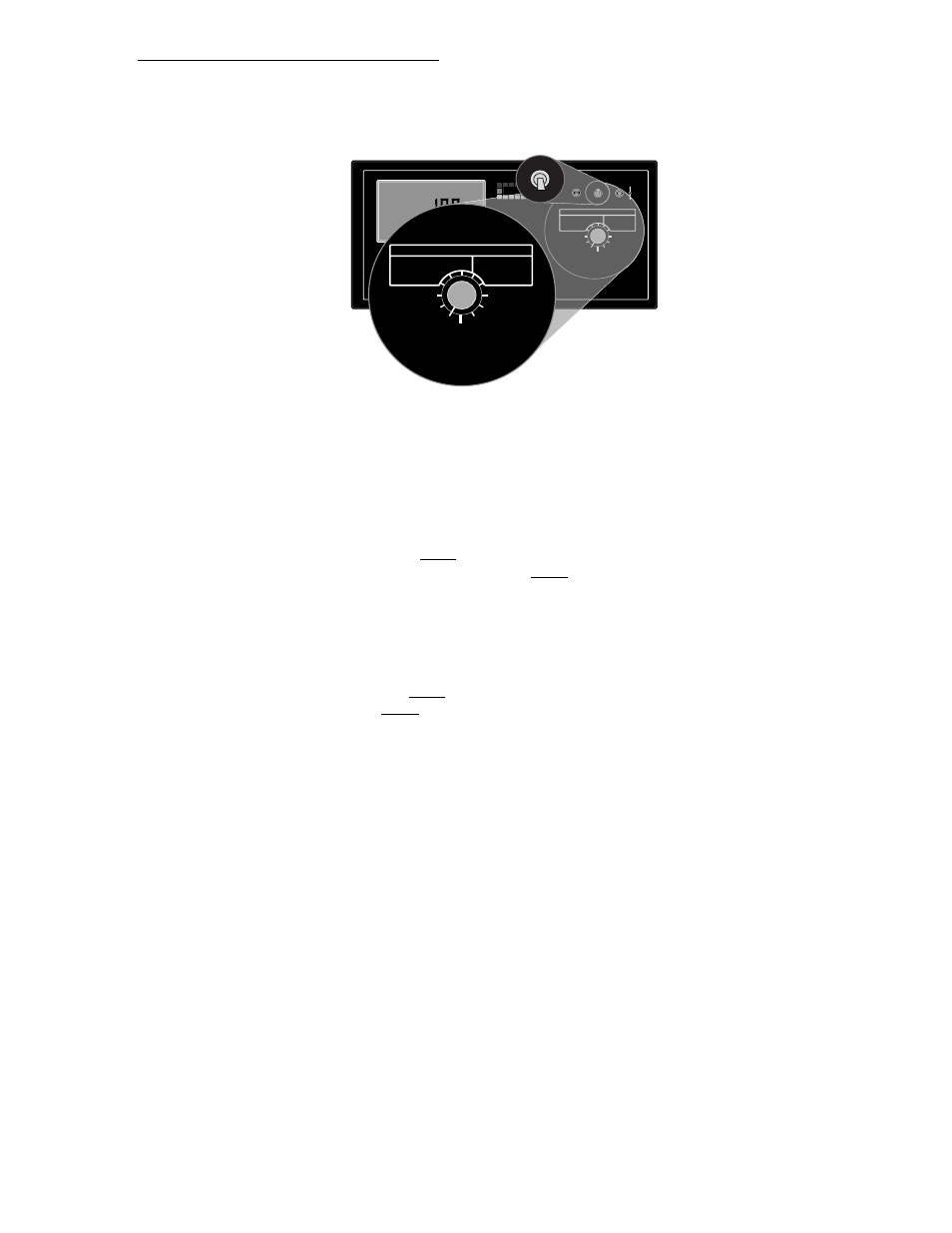

1.4.1 DISPLAY SELECTOR FUNCTIONS-OPERATE MODE
TASC-6500
CHEMICAL APPLICATORS
ON
OFF
Alt.- Rate
1 2 3 4 5 6 7 8 9
BOOMS
MID-TECH
MIDWEST TECHNOLOGIES, INC.
%Rate
DISPLAY SELECTOR
Speed
Area Width
Distance
Vol. Applied
Test Speed
Fan RPM
Vol. Applied
Appl. Rate Appl. Rate
Scan
RATE CONTROL CHANNELS
L & CHEMICALS CARRIER
.
-Ac
Flow
RATE
Gal./
®
1 2 3 L C
ON
OFF
Alt.- Rate
1 2 3 4 5 6 7 8 9
BOOMS
MID-TECH
MIDWEST TECHNOLOGIES, INC.
%Rate
DISPLAY SELECTOR
Speed
Area Width
Distance
Vol. Applied
Test Speed
Fan RPM
Vol. Applied
Appl. Rate Appl. Rate
Scan
RATE CONTROL CHANNELS
L & CHEMICALS CARRIER
.
-Ac
al./
®
L C
SET- UP
OPERATE
SET- UP
OPERATE
OFF
ON
DEC.
INC.
%Rate
DISPLAY SELECTOR
Speed
Area Width
Distance
Vol. Applied
Test
Speed
Fan RPM
Vol. Applied
Appl. Rate Appl. Rate
Scan
RATE CONTROL CHANNELS
L & CHEMICALS CARRIER
SPEED: The current vehicle speed.
AREA: Accumulated Area.*
L & CHEMICALS - Vol. Appl.: The total amount of material actually discharged by channels 1, 2, 3, & L.
Units are not displayed. The display cycles through the active channels in sequence (all channels if none are turned
on).*
L & CHEMICALS - Appl. Rate: The target application rate, for channels 1, 2, 3, & L, when the ground speed
is zero or all booms are OFF. Once application has started, the actual application rate is displayed here. The display
cycles through the active channels in sequence (all channels if none are turned on).***
L & CHEMICALS - % RATE: The percent of programmed application rate at which all active channels (1, 2,
3, L, C) are operating. Alarm beeps and display flashes indicating abnormal operation. Switching to another position
cancels alarm and rate change.***
CARRIER APPL. RATE: Shows the target application rate, when the ground speed is zero or all booms are
OFF. Once application has started, the actual application rate is displayed here.***
CARRIER - VOL. APPLIED: The total volume discharged by the conveyor, as measured by the rate sensor.
Rounds to Tons (Metric Tons) after accumulating 19999 pounds (10,000 Kg).*
WIDTH: The active boom width in Feet (meters). Value depends on individual boom section lengths and which
sections are active.
DISTANCE: The total distance in feet (miles after 5,280 Ft.) or meters (kilometers after 1000 meters).*
FAN RPM: The current speed of the fans (spinners) in RPM
TEST SPEED: The speed the console uses for stationary tests. Use the INC/DEC switch to change this value.
(When this function is selected, and booms and applicators are turned on, the system applies as if it were actually
traveling at this speed.)**
SCAN: The display scans SPEED, AREA, L & CHEMICALS - VOL. APPLIED & APPL. RATE, CAR-
RIER - APPLICATION RATE & VOL. APPLIED, and FAN RPM (if FAN RPM Cal. # not set to zero). The
display holds at each position for approximately two seconds before advancing to the next.
NOTES: * Totals can be zeroed in this mode.
** Values are programmable in this mode.
*** Values changeable by a % increase or decrease.
