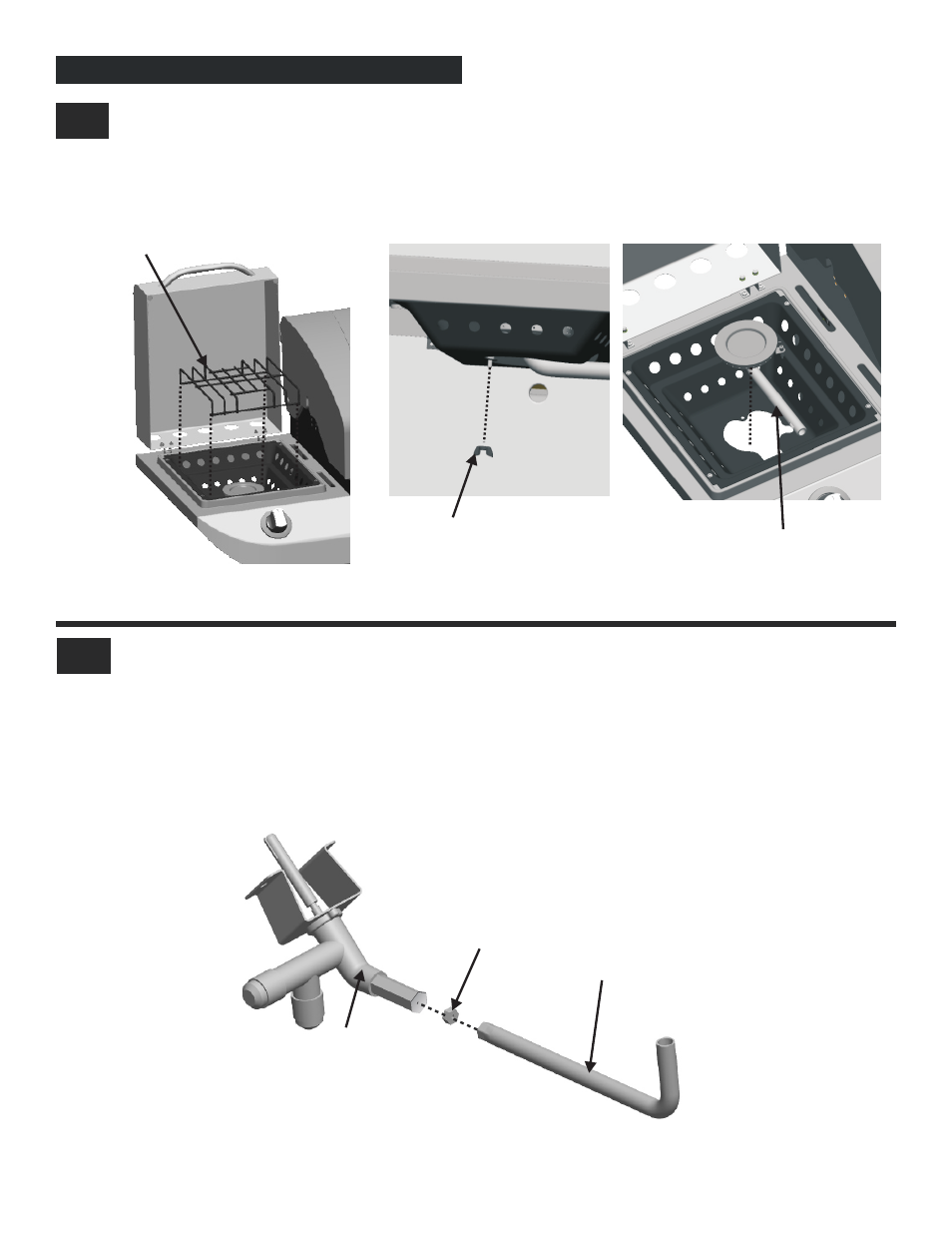

Using the provided Orifice Removal Tool, unscrew the Orifice from the end of the Sideburner Valve. Save removed
Orifice and Orifice Removal Tool for converting back to LP Tank Gas. No replacement Orifice is required.
10
Open Sideburner lid and remove the Sideburner Gate.
Beneath Sideburner shelf, remove Wingnut.
Remove Sideburner from shelf.
Wingnut
Sideburner
Orifice Removal Tool
Valve
Orifice
Sideburner Grate
Outdoor Stove & Griddle Conversion
