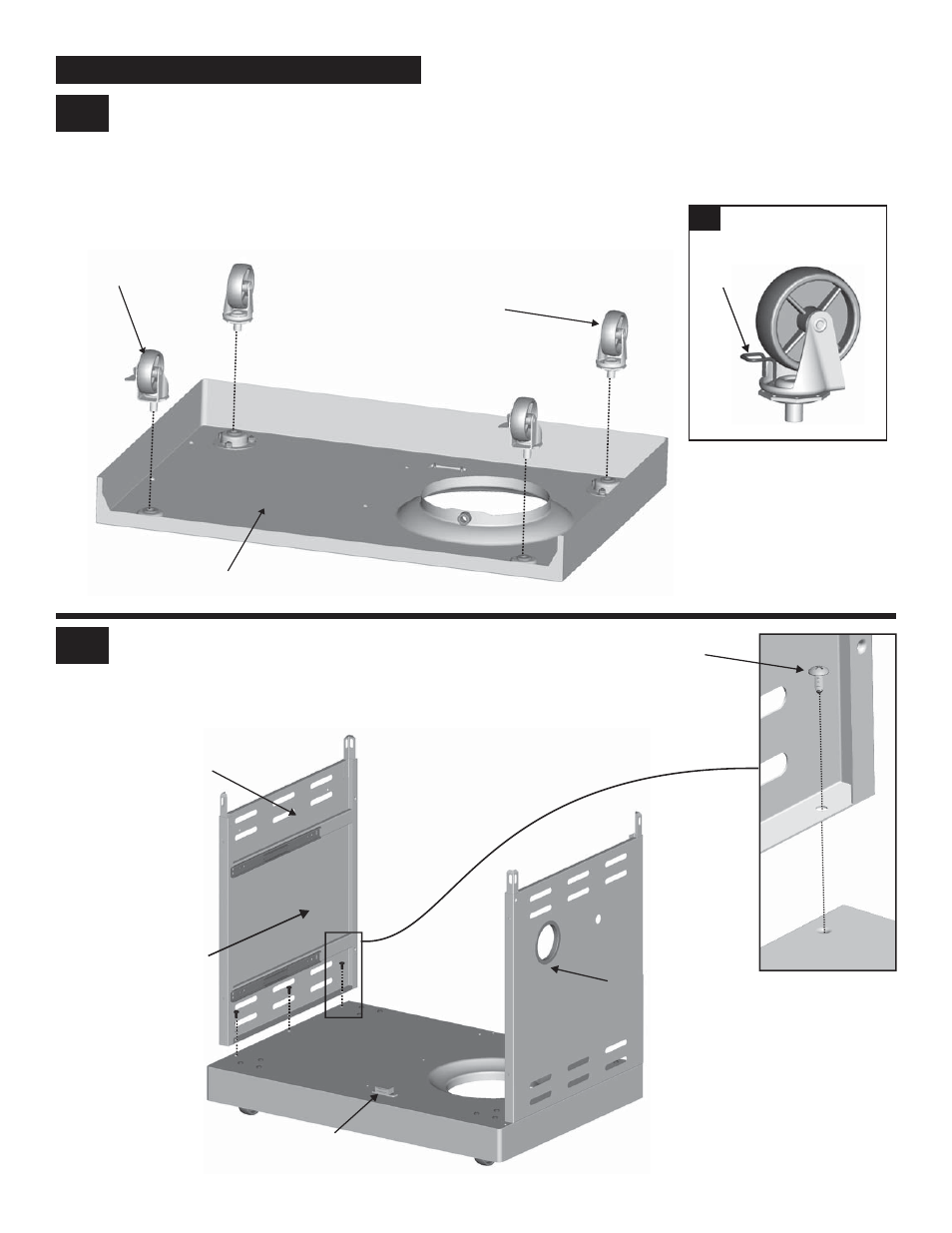

ASSEMBLY
2
1/4-20x1/2” screw
1
Attach side panels to bottom shelf using three
1/4-20x1/2” screws per panel.
IMPORTANT: Panel with large hole must
Be on Right side of bottom shelf.
Locking caster
Bottom shelf
Rear
Front
Fixed caster
15
Left side panel
(with large hole)
Make sure side panels
are pushed as far to the
rear of bottom shelf as
possible before fully
tightening screws.
Right side panel
Magnet
Front
Bent U pin
A
Place bottom shelf upside down. Insert Bent U Pin into the caster mounting plate to lock it in place, shown A.
Spin the caster clockwise into the threads on the bottom shelf until secure. Remove the Bent U Pin and repeat for remaining
casters. Make sure the two locking casters are secured at the rear and the non-locking casters are secured at the front.
After all 4 casters are secure remove the Bent U Pin and save for future maintenance.
