Char-Broil RED 463250811 User Manual
Page 20

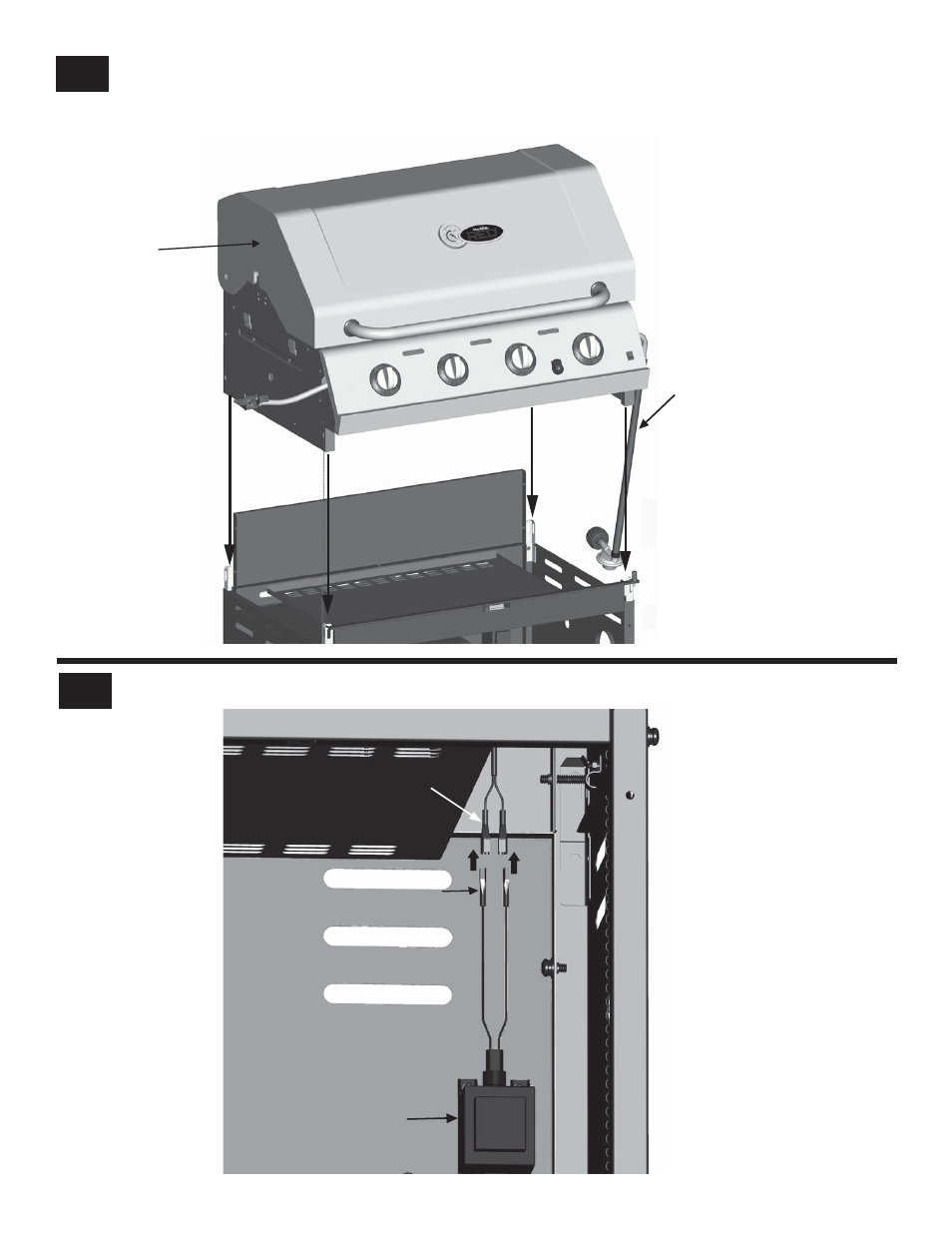

10
This step requires two people to lift and position grill head onto cart.
Carefully lower the grill
head onto the cart, aligning slots at bottom of grill head with posts on cart side panels. Make sure the
regulator hose is hanging outside the cart. Grill head must face open side of cart.
20
Grill head
Regulator hose
Lower back panel
(Inside)
11
Inside of cart, connect adapter wire harness and light wire harness.
Adapter
Light wire harness
Adapter wire harness
