PRESS
Right door

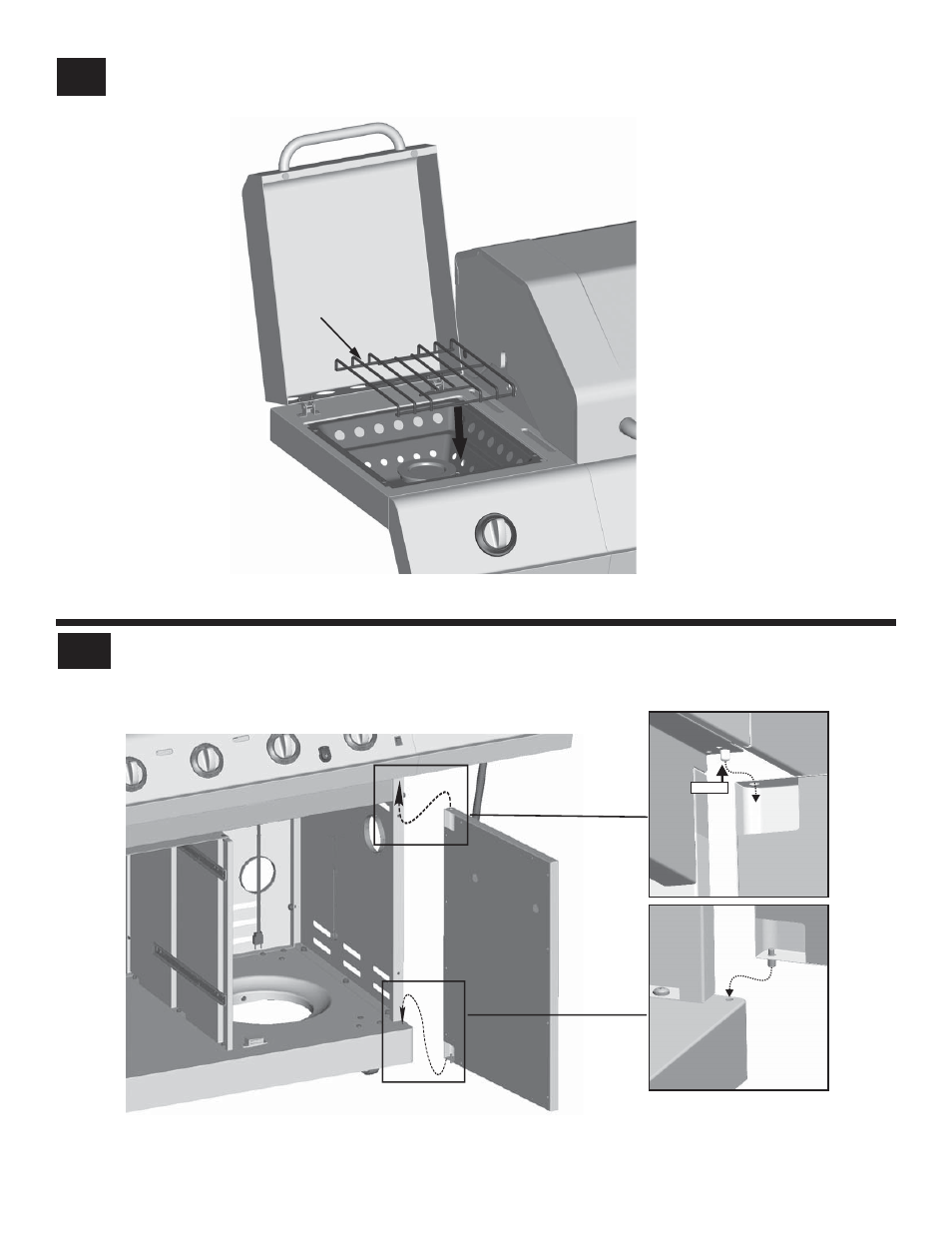

Insert the pin on bottom of door into hole in bottom shelf. Press upper hinge pin in front brace, align hinge hole on top of
door, and release hinge pin into door.
20
Place side burner cooking grate onto side burner shelf.
sideburner cooking grate
