Char-Broil RED 463250811 User Manual
Page 17
4
5

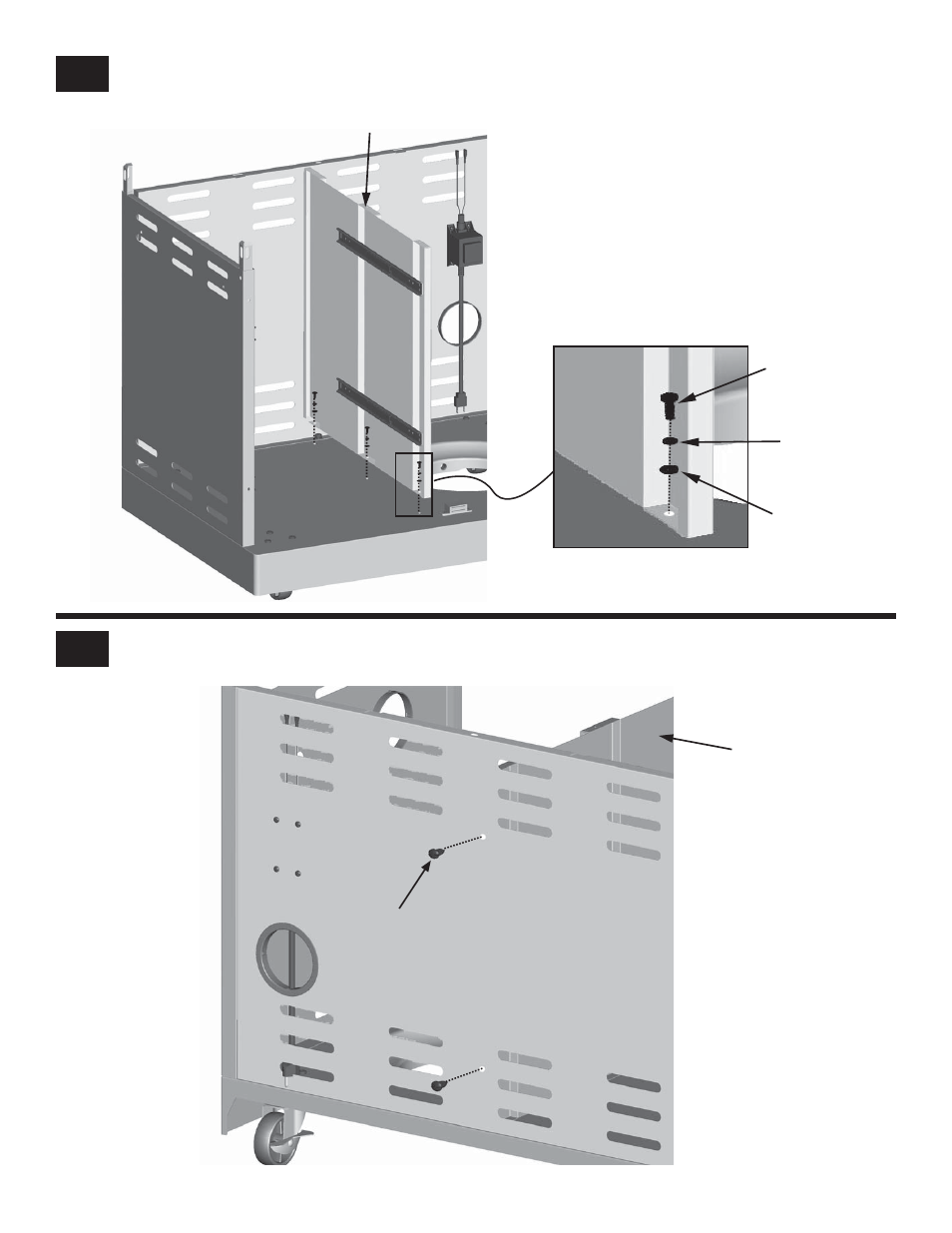

Attach drawer right panel to bottom shelf using three #10-24x3/8” screws, 5mm lock washers and 5mm flat washers.
17
On back of grill, attach drawer right panel to lower back panel using two #8x3/8” self-tapping screws.
#10-24x3/8” screw
5mm lock washer
Bottom shelf
Drawer right panel
Drawer right panel
Lower back panel
5mm flat washer
#8x3/8”
self-tapping screw
