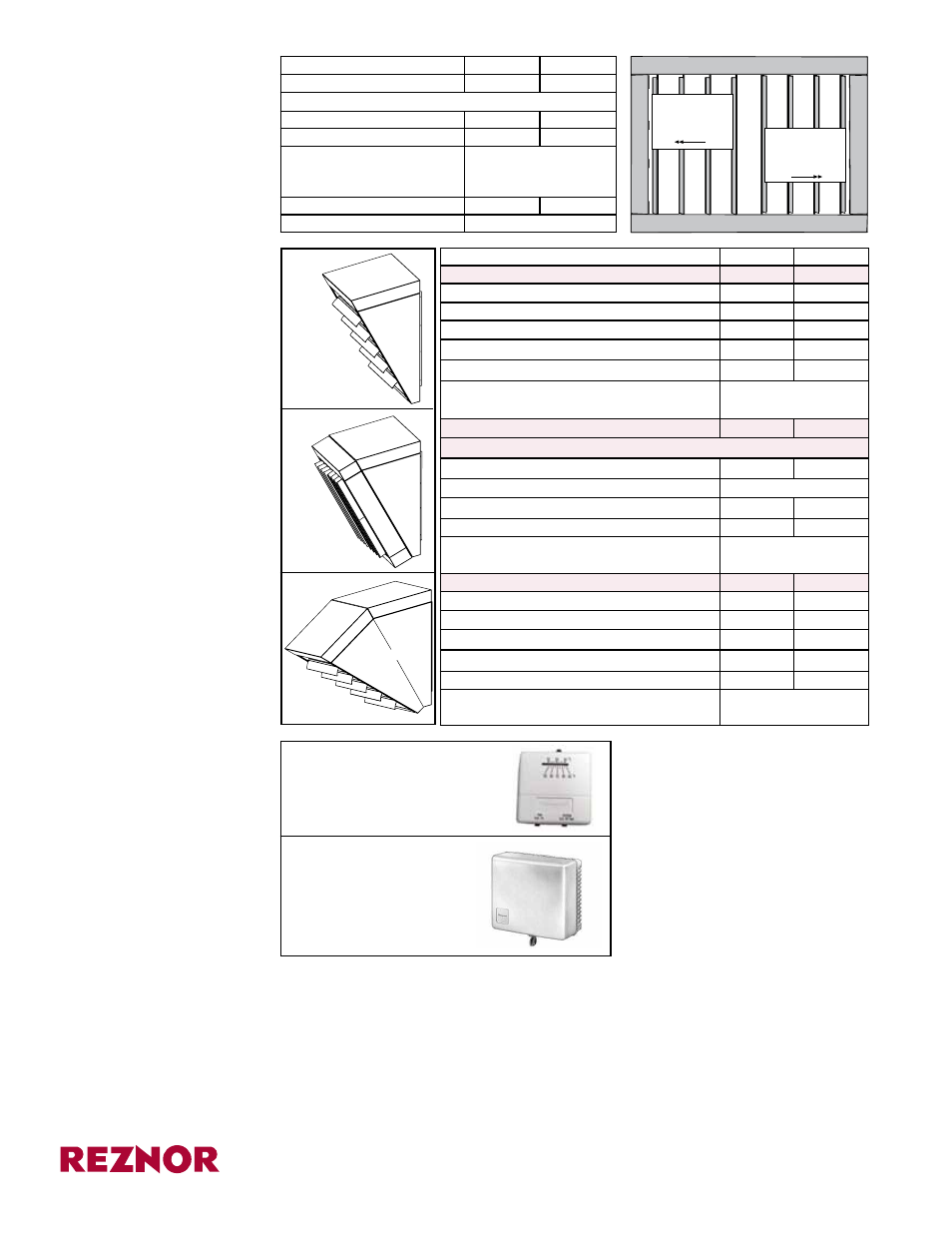

Form
P-UEAS, P/N 269865R4, Page 8
Size
130, 180
260, 310
Option Pkg P/N
201199
201201
Components
Louver Frame Top & Bottom (2)
197189 (2) 197190
Louver Frame Sides
(2)
197186 (2)197188
Screws, #8-18 x 3/8" long,
AB point, slotted indented
serrated hex washer head
(20)
195638
Louvers
(8)
196572 (8)195315
Compression Springs
(8)
195046
Airflow directed
to the left;
springs are
on the top.
Airflow directed
to the right;
springs are on
the bottom.
CODE 90 - Vertical
Louvers (Same as
Option CD1)
CODE 91 - Downturn
Nozzles (Same as
Option CD2, CD3, and
CD4)
Size
130, 180
260,310
Option CD2 Pkg P/N
201202
201204
Nozzle Section Right Side
(1)
197173 (1) 197175
Nozzle Section Left Side
(1)
197176 (1) 197178
Nozzle Section Top
(1)
197170 (1) 197172
Nozzle Bracket
(2)
201708 (2) 201709
Nozzle Section Bottom
(1)
196997 (1) 197179
Screws, #8-18 x 3/8" long AB point, slotted
indented serrated hex washer head
(16)
195638
Option CD4 Pkg P/N
201208
201210
Same components as Option CD2 above PLUS
Vertical Louver
(8)
196572 (8) 195315
Compression Spring
(8)
195046
Louver Top and Bottom Support
(2)
197189 (2) 197190
Louver Frame Side
(2)
197186 (2) 197188
Screws, #8-18 x 3/8" long AB point, slotted
indented serrated hex washer head
(28)
195638
Option CD3 Pkg P/N
201205
201207
Nozzle Section Right Side
(2)
197173 (2) 197175
Nozzle Section Left Side
(2)
197176 (2) 197178
Nozzle Section Top
(2)
197170 (2) 197172
Nozzle Bracket
(2)
201708 (2) 201709
Nozzle Section Bottom
(2)
196997 (2) 197179
Screws, #8-18 x 3/8" long AB point, slotted
indented serrated hex washer head
(30)
195638
Option
CD2
Option CD3
Option
CD4
1-stage Thermostat, 24 volt,
with fan switch, P/N 255350
(Same as Option CL1)
P/N 257464, Clear
Plastic, Locking,
Thermostat Cover,
6x5x2-1/2 (inside)
(Same as Option CM1)
CODE 92 - Thermostat
and Cover (Same as
Option CL1 and CM1)
