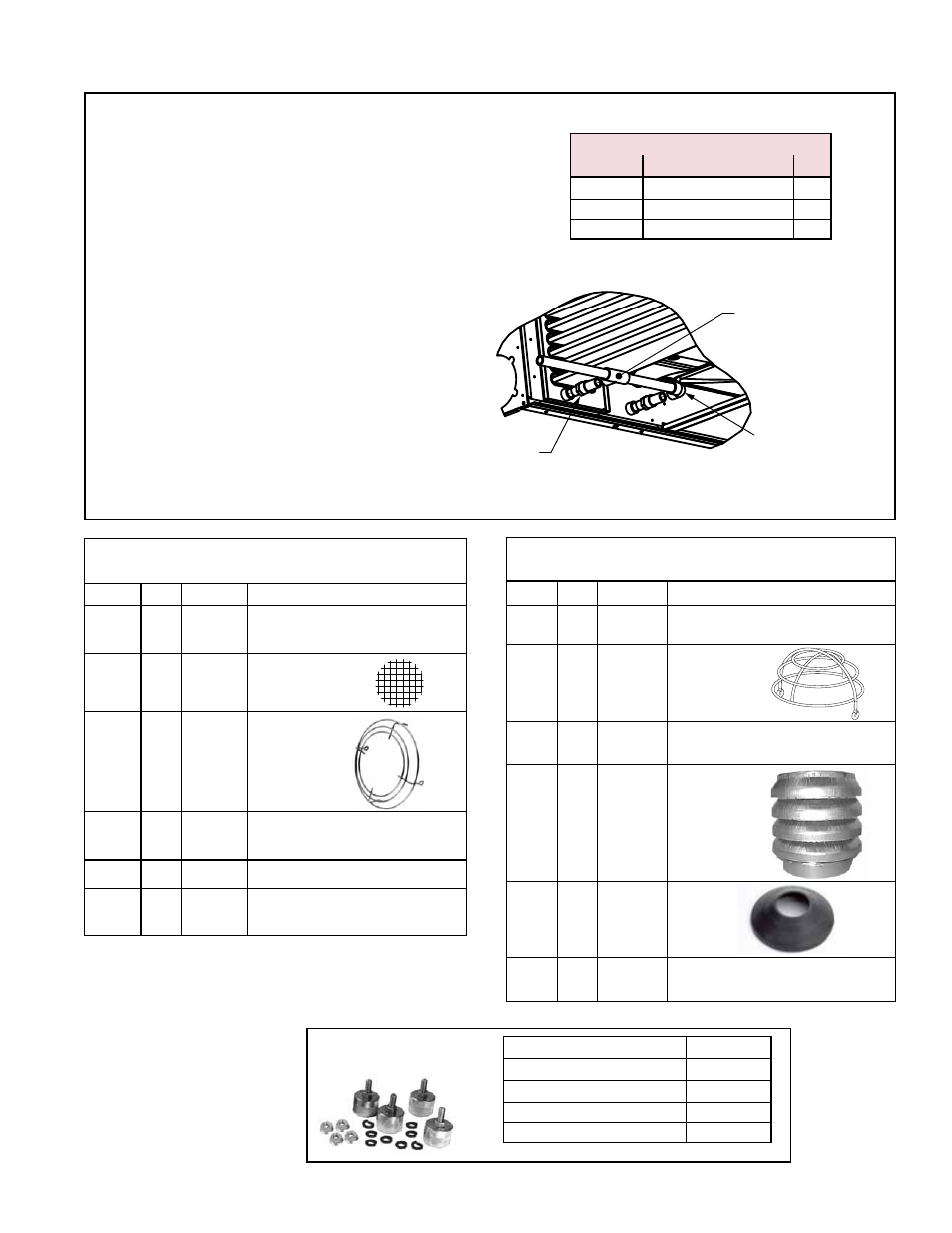

Form P-UEAS, P/N 269865R4, Page 7
CODE 80 -
Hanger Kit (Same
as Option CK10)
Option CK10 - Four-
point Suspension
Size All
Option CK10 Pkg P/N 98511
Swivel Connector Assembly (4) 17627
3/8” Lock Washer (8) 5197
3/8” Hex Nuts (4) 1438
CODE 55 - Complete Horizontal Vent/Combustion
Air Terminal Kit (Same as Option CC6), P/N 221247
CODE Qty P/N Description
55A/B 1 221069 Concentric Adapter Box with
Silicone Sealing Ring (above)
55C 1 221089 Bird Screen for
Exhaust Outlet
55D 1 124940 Ring Guard
for Air Inlet
55E 4 37661 #10-16x1/2" lg Screws to attach
the inlet air guard
55F 4 221186 Spacers for inlet air guard
55G 1 221091 4" PVC Cap for Vent Condensate
Drain Connection (above)
CODE 56 - Complete Vertical Vent/Combustion Air
Kit (Same as Option CC2), P/N 221248
CODE Qty P/N Description
56A/B 1 221069 Concentric Adapter Box with
Silicone Sealing Ring (above)
56C 1 221215 Bird Guard
56D 2 37661 Screws for Bird Guard.
#10x1/2" self-drilling
56E 1 221250 Combustion
Air Inlet
56F 1 221185 Rain
Collar
56G 1 221091 4" PVC Cap for Vent Condensate
Drain Connection (above)
Kit Contents
P/N Description Qty
105949 1/2”PVC Elbow 1
221245 Drain Stub Assembly 2
284192 Drain Pipe Assembly 1
INSTALLATION INSTRUCTIONS:
1. Turn off the gas and power.
2. Remove the old primary heat exchanger.
3. Remove the drain assembly from the secondary heat
exchanger.
4. Install the new primary heat exchanger.
5. Thread one drain stub assembly into the half coupling
on the new primary heat exchanger.
6. Thread the other drain stub assembly into the half
coupling on the seconday heat exchanger.
7. Install the 1/2”PVC elbow and drain pipe assembly
using PVC cleaner and solvent.
8. Turn on the gas and power and check for operation
according to the Installation manual.
Replacement Heat Exchangers Condensate Drain Kit P/N 235368
1/2”PVC Elbow
P/N 105949
Drain Pipe Assembly
P/N 284192
Drain Stub Assembly
P/N 221245 - (2) Req
