Reznor UEAS Parts Manuals - Manual (Page 6)

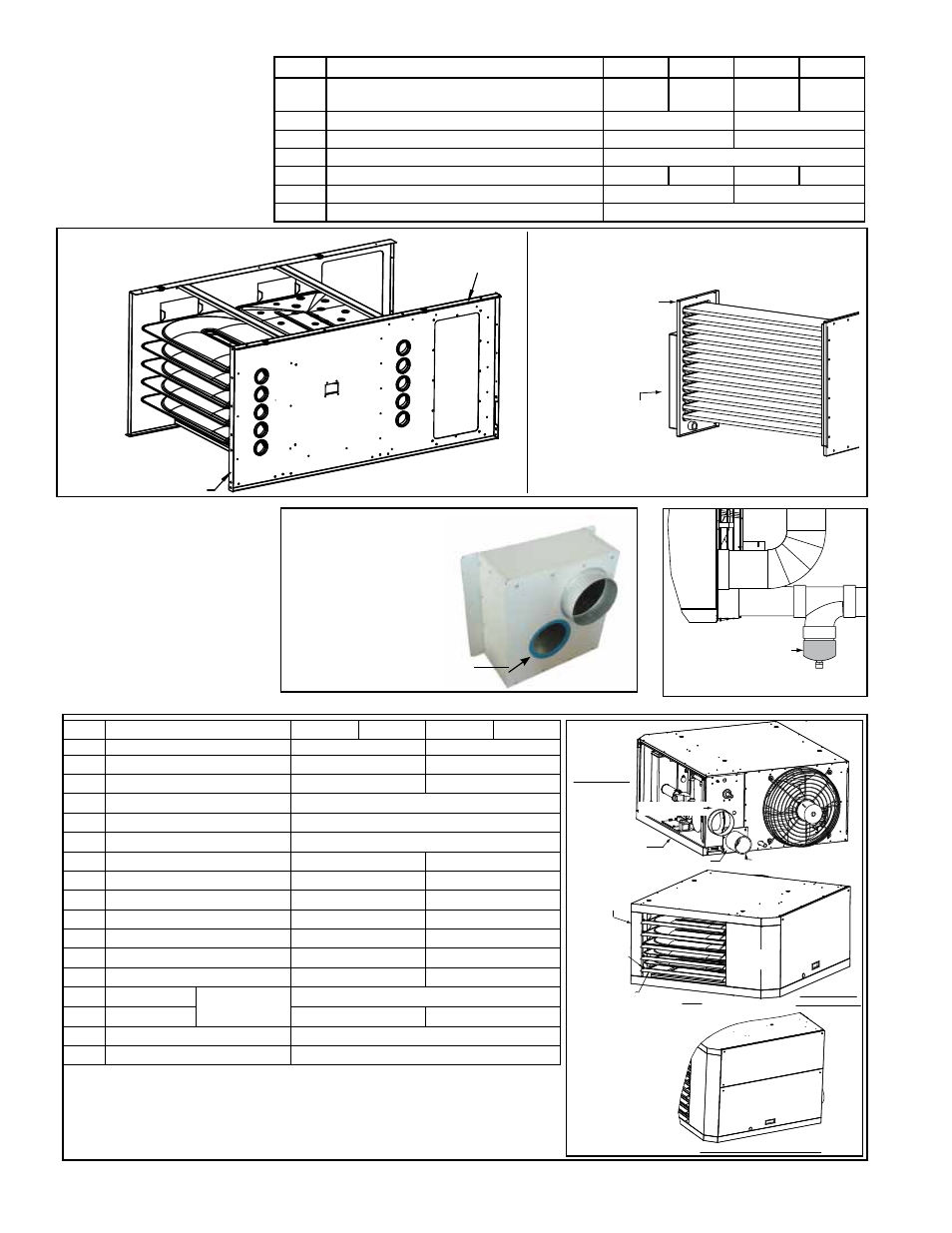

Form P-UEAS, P/N 269865R4, Page 6
51A - (2) Side
Header Gaskets
51B - (2) Top/Btm
Header Gaskets
CODE 51 - Primary
Heat Exchanger
52A - Header
Gasket
52B - Collection
Box Gasket
CODE 52 - Secondary
Heat Exchanger
Replacement Heat
Exchangers
CODE Description 130 180 260 310
51
Primary Heat Exchanger Assembly with
drain assembly
221318 221319 221320 221321
51A Top/Bottom Header Gaskets (2) 221201 (2) 221202
51B Side Header Gaskets (2) 221203 (2) 221204
51C Replacement HTEX Drain Kit 235368
52 Secondary Heat Exchanger Assembly 221256 221257 221258 221259
52A Secondary Heat Exchanger Header Gasket 220804 220805
52B Collection Box Gasket 221187
CODE Description 130 180 260 310
59 Door Assembly 220833 220834
60 Access Panel (above the door) N/A 220822
61 Vent Panel Assy 220825 220826
62 Vent Block Assembly 221518
62A Vent Block Gasket 221516 (part of Code 62)
63 Vent Block Cover Assembly 221519
64 Fan Panel 220759 220760
65 Front Panel 201692 201694
66 Left Panel 220753 220754
67 Bottom Pan 220827 220828
68 Louvers (5) 195578 (10) 195578
69 Louver Spring (5) 195046 (10) 195046
70 Top Panel 220755 220756
71 T-
CORE
3 Logo (see illustration
on front cover)
221183
72 Reznor Logo 196689 196692
73 Cabinet Touchup Paint 201805, 11 oz spray can, White
74 Horizontal Louver Paint 207432, 12 oz aerosol can, Maroon
Cabinet Parts
Control Side of
Sizes 130 and 180 Front
59 - Door Panel
Control Side of Sizes 260 and 310
59 - Door Panel
60 - Access Panel
65 - Front
Panel
66 - Left
Panel
70 - Top
68 - Louver
69 -
Spring
Fan Side (Rear)
61 - Vent Panel
63 - Vent Block Cover
64 -
Fan
Panel
67 - Bottom Pan
70 - Top
62 - Vent Block Assembly
(block, pipe, and gasket)
Vent / Combustion
Air Components
for Separated
Combustion
CODE 55B and 56B -
Silicone Sealing Ring
Model
UEAS
CODES 55G
and 56G -
4” PVC Cap
CODE 55A and
56A - Concentric
Adapter Box
