Form

P-UEAS, P/N 269865R4, Page 3

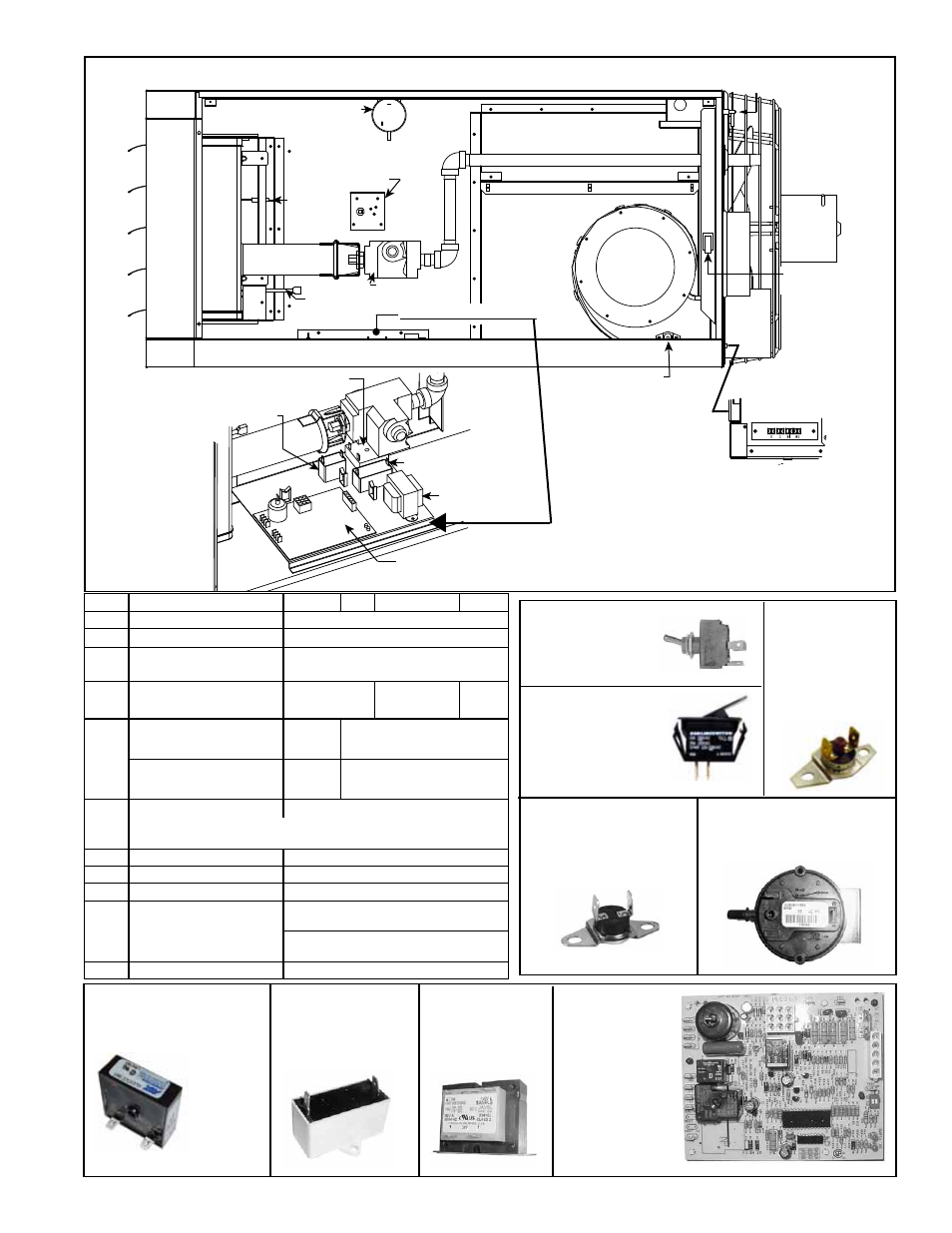

Electrical Components - Locations and P/N’s

4 - High Temperature

Limit Control

Gas Valve, see

Form P-VALVES

5 - Pressure

Switch

Venter,

page 4

3 - Vent

Temperature

Limit Switch

Burner

Assy

, page 5

Flame

Sensor,

page 5

Ignitor,

page 5

Fan

Motor,

page 5

Control Panel Assembly

2 - Door

Switch

1 - Disconnect

Switch

11 - Terminal Board

for connecting thermostat

12 - Terminal Board Gasket

9 - Transformer

6 - Time Delay Relay

(used prior to 12/12)

8 - Fan Motor Capacitor

10 - DSI Integrated Control

Module (Circuit Board)

7 - Venter

Motor Capacitor

CODE

Description

130

180

260

310

1

Disconnect Switch

101902

2

Door Switch

217262

3

Vent Temperature Limit

Switch

221158, Opens 145°F,

manual reset

4

High Temperature Limit

Switch

45602,

180°

85449, 200°,

Yellow

45602,

180°

5

Pressure Switch

(0 to 6,000 ft Altitude)

221251,

Yellow

221228, Blue

Pressure Switch

(6,001 to 10,000 ft Altitude)

235954,

Green

235953, Orange

6

Time Delay Relay

221388

(

NOTE: Time delay relay is not used with DSI board P/N 269867, Serial No. Ignition

Code A1 - See CODE 10 below and Serial No. Codes on page 2.)

7

Venter Motor Capacitor

195643

8

Fan Motor Capacitor

195643

9

Transformer

175265

10

DSI Integrated Control

Module - Circuit Board

(Select by Serial No. Ignition Code)

195265

(Serial No. Ignition Code 79 - see page 2)

269867

(Serial No. Ignition Code A1- see page 2)

11 Wiring Harness

234021

CODE 1 - On/Off

Disconnect

Switch,

P/N 101902

CODE 2 - Safety

Door Switch,

Carling #TA22B-

TLB-B,

P/N 217262

CODE 3 - Vent

Temperature

Limit Switch,

Thermodisc

36T26 73DD,

P/N 221158

CODE 4 - High

Temperature Limit

Switch, See P/N by

Size

CODE 5 - Pressure

Switch, Honeywell, See

P/N by Size

CODE 6 - Time Delay

Relay, Airotronics,

24VAC, P/N 221388

CODES 7 & 8 -

Capacitor,

7.5mfd, 400VAC,

P/N 195643

CODE 9 -

Transformer,

120/24 volts,

P/N 175265

CODE 10 -

DSI Control

Module,

P/N 195265,

Serial No.

Code 79 or

P/N 269867,

Serial No.

Code A1

See

NOTE

in list

above.
